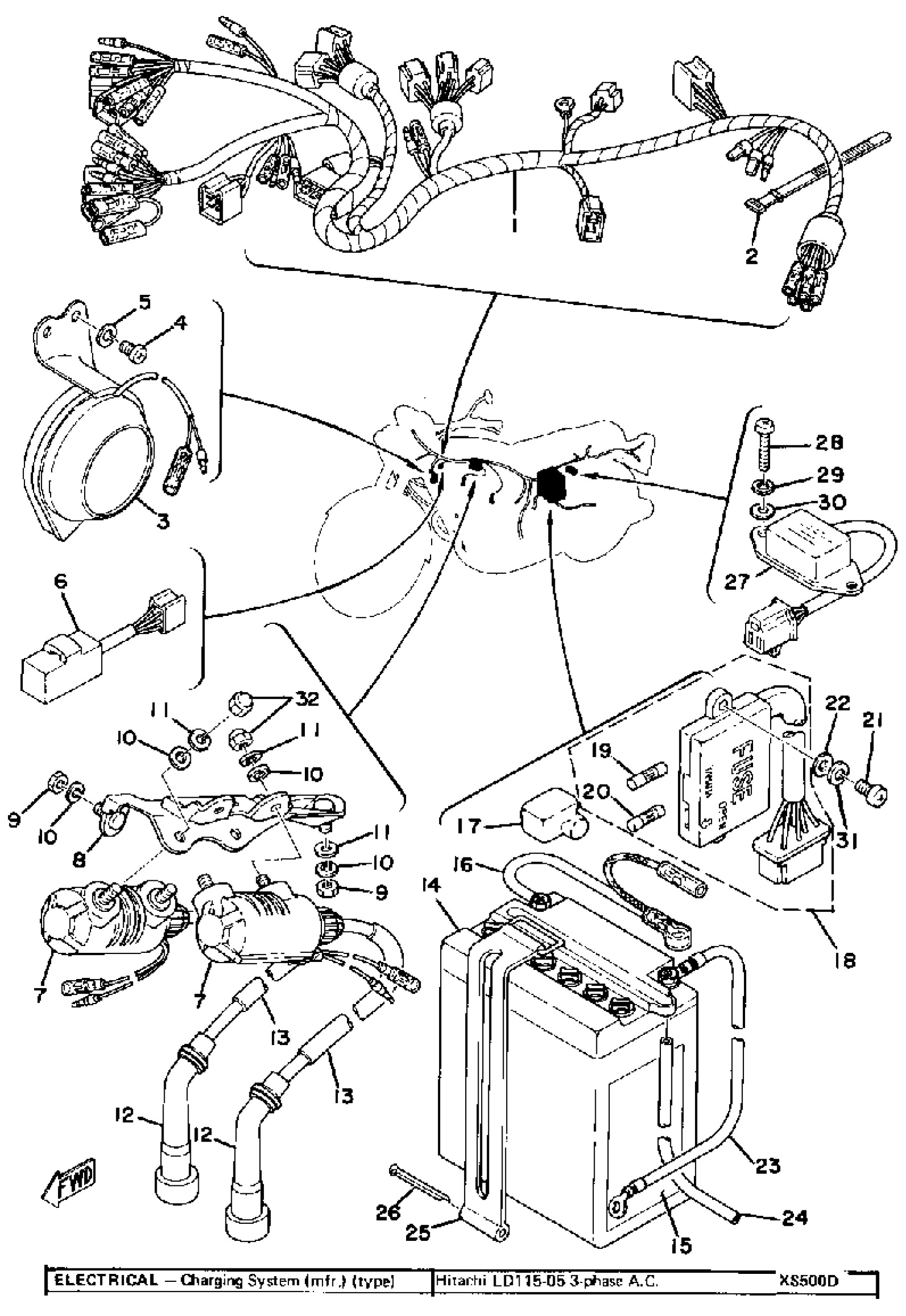

Yamaha XS500C (XS500) 1976 ELECTRICAL 1 Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

1J3-82590-51-00

Unavailable

1

WIRE HARNESS ASSEMBLY

(1J3-82590-61-00)

Unavailable

2

BAND, SWITCH CORD

437-83936-01-00

$7.99

3

HORN

371-83371-22-00

Unavailable

4

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

7

IGNITION COIL ASSEMBLY

371-82310-60-00

Unavailable

8

BRACKET, IGN COIL

(371-82316-02-00)

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

PLUG CAP ASSY

4VW-82370-00-00

$69.99

13

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

14

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

15

LABEL, BATTERY

40A-82141-G0-00

Unavailable

16

WIRE, PLUS LEAD

(1A8-82115-00-00)

Unavailable

17

COVER, LEAD WIRE

(371-82119-00-00)

Unavailable

18

FUSE BOX ASSEMBLY

1J3-82170-00-00

Unavailable

19

FUSE

1A0-82161-00-00

Unavailable

20

FUSE

1A0-82151-00-00

Unavailable

21

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

WIRE, MINUS LEAD

371-82116-00-00

Unavailable

24

HOSE

(90445-08249-00)

Unavailable

25

BAND,BATTERY

371-82131-00-00

Unavailable

26

PIN, COTTER

91490-40045-00

Unavailable

27

VOLTAGE REG ASSEMBLY

2G7-81910-50-00

Unavailable

28

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

31

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

32

NUT (J17)

95380-06800-00

Unavailable
