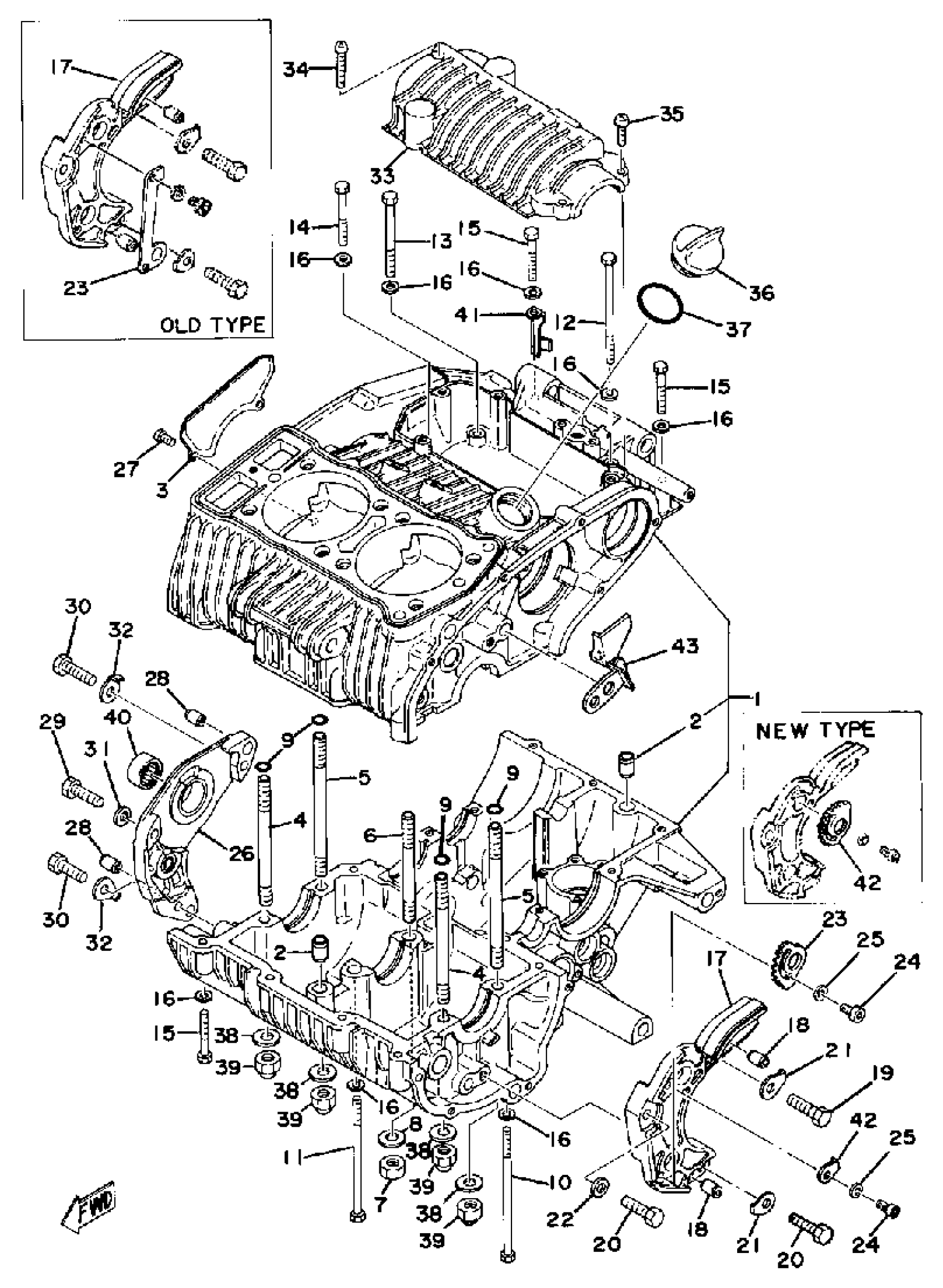

Yamaha XS500C (XS500) 1976 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(1A8-15100-00-00)

Unavailable

1

UNAVAILABLE IN PRICE BOOK 000

1H2-15100-00-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

COVER

(371-15492-00-00)

Unavailable

4

BOLT, STUD

(90116-10090-00)

Unavailable

5

BOLT, STUD

(90116-10091-00)

Unavailable

6

BOLT, STUD

(90116-10111-00)

Unavailable

7

NUT

90170-10011-00

$7.49

8

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

9

O-RING (341)

93210-09192-00

$4.99

10

BOLT

90101-06335-00

Unavailable

11

BOLT, HEXAGON

(97321-06110-00)

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06095-00

Unavailable

13

BOLT(62J)

97013-06070-00

Unavailable

14

BOLT, HEXAGON

97013-06050-00

$1.11

15

BOLT (682)

97095-06040-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

BRACKET, IDLE SHAFT 000

(1H2-15151-01-00)

Unavailable

17

BRACKET, IDLE SHAFT 000

(1H2-15151-01-00)

Unavailable

17

BRACKET, IDLE SHAFT

371-15151-00-00

Unavailable

18

PIN, STRAIGHT

(90250-10021-00)

Unavailable

19

BOLT, HEXAGON

97013-08030-00

Unavailable

20

BOLT (682)

97013-08025-00

Unavailable

21

WASHER, LOCK

(371-15186-00-00)

Unavailable

22

.. WASHER, PLATE

92990-08600-00

Unavailable

23

COVER, IDLE SHAFT

(1H2-15153-00-00)

Unavailable

23

COVER, IDLE SHAFT

(371-15153-02-00)

Unavailable

24

BOLT, SOCKET

91317-05010-00

Unavailable

25

WASHER PLATE 338839440000

90201-05027-00

Unavailable

26

BRACKET, BRKR SHAFT

(371-15152-00-00)

Unavailable

27

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

28

PIN, STRAIGHT

(90250-10021-00)

Unavailable

29

BOLT, HEXAGON

97013-08030-00

Unavailable

30

BOLT (682)

97013-08025-00

Unavailable

31

.. WASHER, PLATE

92990-08600-00

Unavailable

32

WASHER, LOCK

(371-15186-00-00)

Unavailable

33

COVER, STRTG MOTOR

(371-15436-00-00)

Unavailable

34

BOLT,SOCKET

91317-06035-00

Unavailable

34

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

35

BOLT,SOCKET

91317-06020-00

Unavailable

35

SCREW PAN HEAD

98580-06020-00

Unavailable

36

PLUG, OIL

371-15363-00-00

Unavailable

37

O-RING (371)

93210-29198-00

Unavailable

38

WASHER PLATE 341839090000

90201-10128-00

Unavailable

39

NUT, CROWN(2GG)

90176-10075-00

Unavailable

40

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

Unavailable

41

CLAMP 2

(1A8-15484-00-00)

Unavailable

42

PLATE, LOCK 000

(1H2-15144-00-00)

Unavailable

42

UNAVAILABLE IN PRICE BOOK 000

1H2-15144-01-00

Unavailable

43

PLATE 001

(1H2-15113-00-00)

Unavailable
