CRANK - PISTON

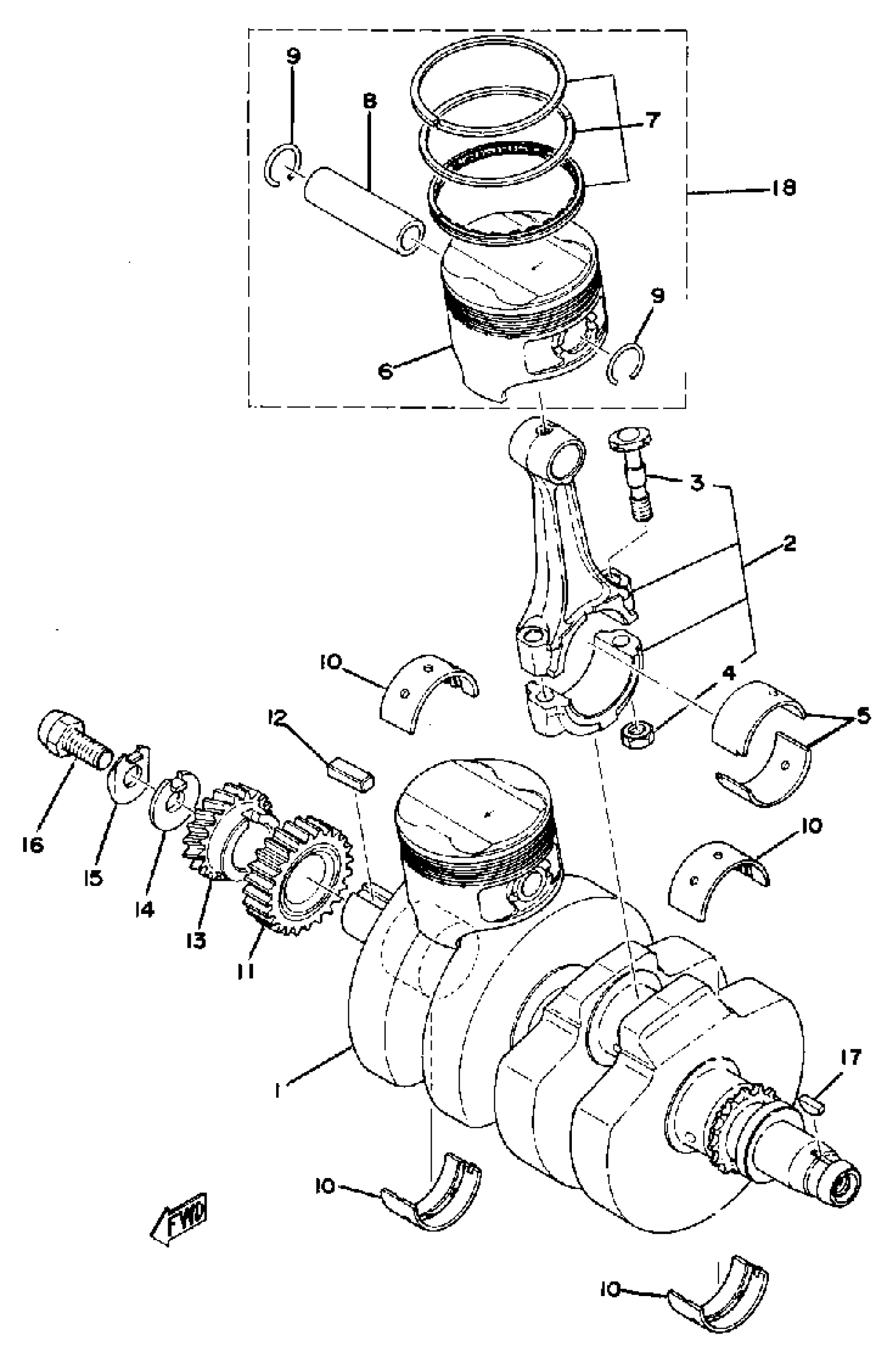

Yamaha XS500C (XS500) 1976 CRANK - PISTON Diagram
#
1
CRANKSHAFT
(1A8-11411-00-00)
Unavailable
2
CONNECTING ROD ASSEMBLY
(371-Y1165-01-00)
Unavailable
3
. BOLT, CON ROD
371-11654-01-00
Unavailable
4
. NUT, HEXAGON
90170-08129-00
Unavailable
5
PLANE BRNG, CON ROD (371-11656-01)
371-11656-03-00
Unavailable
5
PLANE BRNG, CON ROD (371-11656-11)
371-11656-13-00
Unavailable
5
PLANE BRNG, CON ROD (371-11656-21)
371-11656-23-00
Unavailable
5
PLANE BRNG, CON ROD (371-11656-31)
371-11656-33-00
Unavailable
5
PLANE BRNG, CON ROD (371-11656-41)
371-11656-43-00
Unavailable
5
PLANE BRNG, CON ROD
(371-11656-53-00)
Unavailable
6
PISTON STD (421-11631-03-96)
371-11631-05-96
Unavailable
6
PISTON 1 O/S 0.25 (371-11635-04)
371-11635-05-00
Unavailable
6
PISTON 2 O/S 0.50
371-11636-05-00
Unavailable
6
PISTON 3 O/S 0.75
(371-11637-05-00)
Unavailable
6
PISTON 4 O/S 1.00
(371-11638-05-00)
Unavailable
7
PISTON RINGSET STD (371-11610-04)
2F1-11610-00-00
Unavailable
7
PISTON RINGSET 1ST (371-11610-14)
2F1-11610-10-00
Unavailable
7
PISTON RINGSET 1ST (371-11610-14)
2F1-11610-10-00
Unavailable
7
PISTON RINGSET 2ND (371-11610-24)
2F1-11610-20-00
Unavailable
7
PISTON RINGSET 2ND (371-11610-24)
2F1-11610-20-00
Unavailable
7
PISTON RINGSET 3RD
(2F1-11610-30-00)
Unavailable
7
PISTON RINGSET 3RD
(2F1-11610-30-00)
Unavailable
7
PISTON RINGSET 4TH
(2F1-11610-40-00)
Unavailable
7
PISTON RINGSET 4TH
(2F1-11610-40-00)
Unavailable
8
PIN, PISTON
214-11633-00-00
Unavailable
9
CLIP 6041163400
93450-20026-00
Unavailable
10
PLANE BRNG, CRSF 1
341-11416-00-00
Unavailable
10
PLANE BRNG, CRSF 1
(341-11416-10-00)
Unavailable
10
PLANE BRNG, CRSF 1
341-11416-20-00
Unavailable
10
PLANE BRNG, CRSF 1
(341-11416-30-00)
Unavailable
10
PLANE BRNG, CRSF 1
(341-11416-40-00)
Unavailable
11
GEAR, PRI DRIVE
(371-16111-00-00)
Unavailable
12
KEY, STRAIGHT (584)
90282-07023-00
Unavailable
13
GEAR, DRIVE
(371-11536-03-00)
Unavailable
14
WASHER, CLAW
(90214-11007-00)
Unavailable
15
WASHER, LOCK
(371-16135-00-00)
Unavailable
16
BOLT
(90109-10171-00)
Unavailable
17
KEY,WOODRUFF
90280-04005-00
Unavailable
18
PISTON KIT STD
(371-11630-00-00)
Unavailable
18
PISTON KIT 1ST
(371-11630-10-00)
Unavailable
18
PISTON KIT 2ND
(371-11630-20-00)
Unavailable
18
PISTON KIT 3RD
(371-11630-30-00)
Unavailable
18
PISTON KIT 4TH
(371-11630-40-00)
Unavailable
