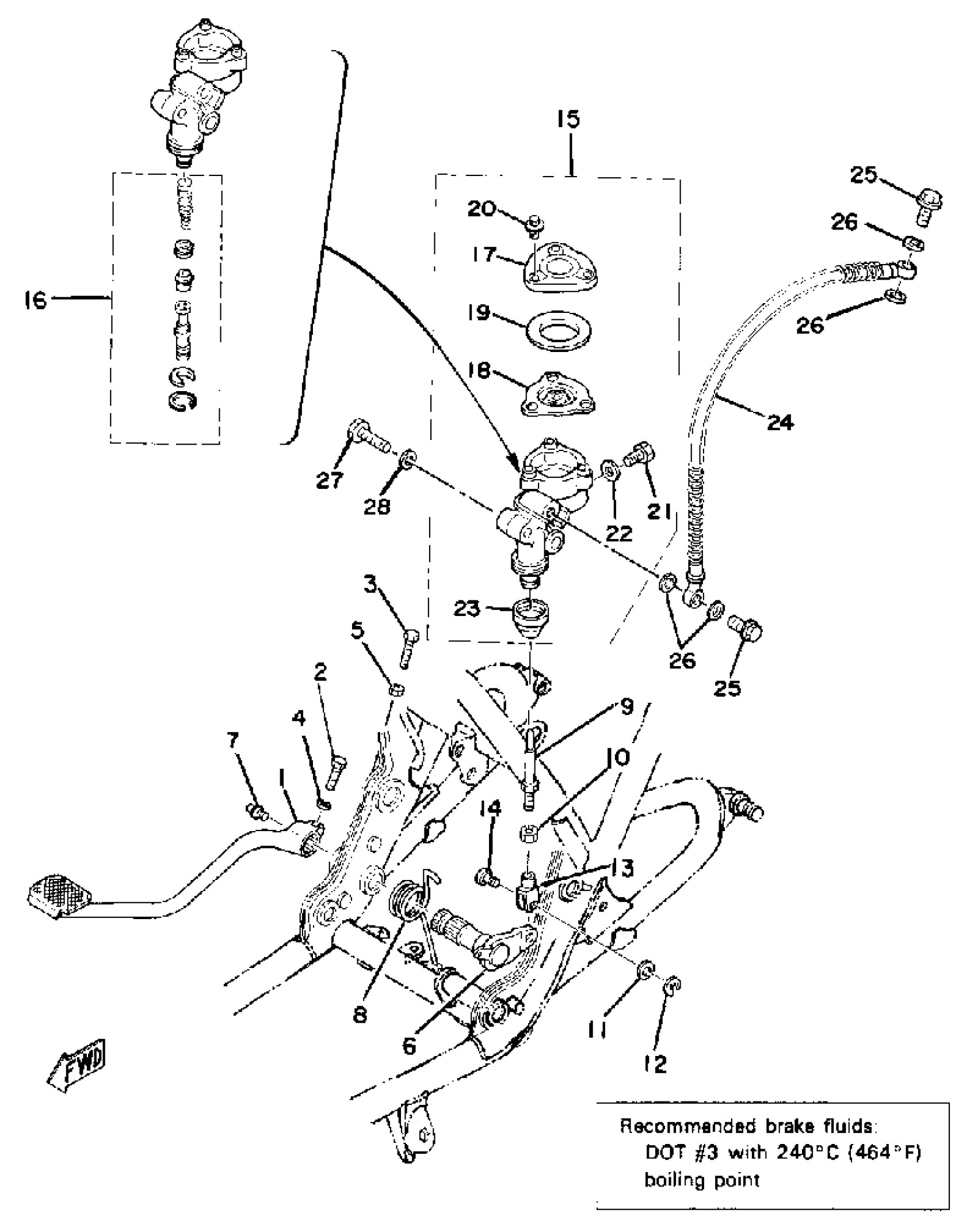

Yamaha XS500C (XS500) 1976 BRAKE PEDAL - MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

(1J3-27211-00-93)

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

SCREW 341272170000

90153-06008-00

$7.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

6

SHAFT, BRAKE PEDAL

(1J3-27212-00-00)

Unavailable

7

NIPPLE, GREASE

93700-06M03-00

Unavailable

8

SPRING, TORSION

(90508-35306-00)

Unavailable

9

ROD, BRAKE

1A1-27231-01-00

Unavailable

10

. NUT

95380-08700-00

Unavailable

11

WASHER, PLATE 1562722600

90201-08083-00

$9.49

12

CIRCLIP(53L)

99001-06600-00

$1.01

13

JOINT

1A1-27222-01-00

Unavailable

14

PIN, SPEC''L SHAPE

90249-08124-00

Unavailable

15

MSTR CYLINDER ASSEMBLY

1J3-25850-52-00

Unavailable

16

CYLINDER KIT, REAR MASTER

1J3-W0042-50-00

Unavailable

17

. CAP, RESERVOIR

1J3-25852-52-00

Unavailable

18

. DIAPHRAGM RESERVOR

1J3-25854-51-00

Unavailable

19

. BUSH, DIAPHRAGM

1J3-25855-51-00

Unavailable

20

. SCREW, HEXAGON

90153-05014-00

Unavailable

21

. SCREW, hexagon

90153-10015-00

Unavailable

22

. WASHER, plate

90201-10610-00

Unavailable

23

. BOOT, MASTER CYLINDER

1J3-25862-50-00

Unavailable

24

HOSE, BRAKE 1

(1J3-25872-50-00)

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

BOLT (682)

97013-08025-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
