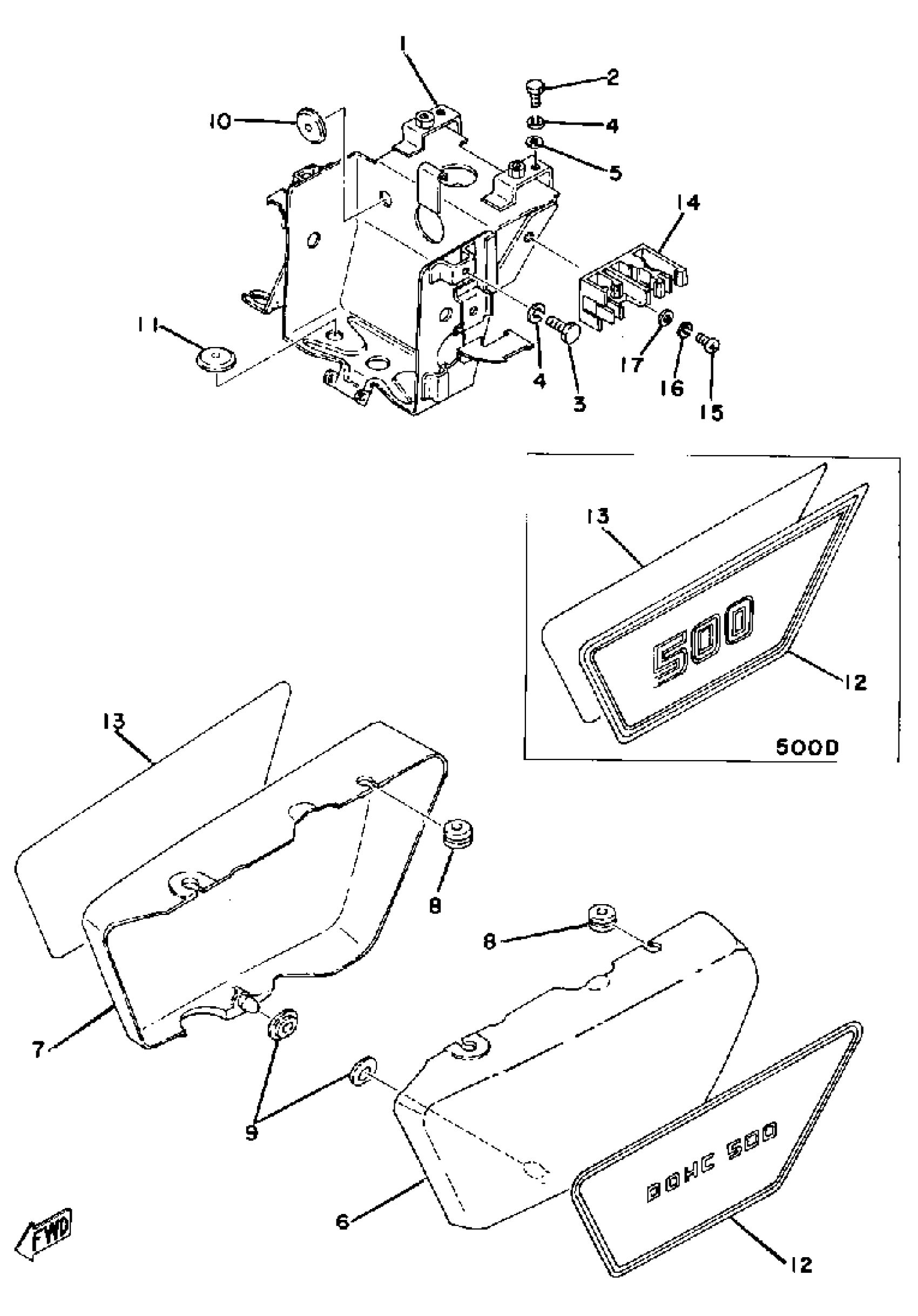

Yamaha XS500C (XS500) 1976 BATTERY BOX - SIDE COVER Diagram

#

Description
Price

1

BOX, BATT.

(1J3-21170-02-33)

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

BOLT(3JP)

97017-06010-00

$3.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

COVER, SIDE 1

(1A8-21711-00-R7)

Unavailable

6

COVER, SIDE 1

(1A8-21711-00-U1)

Unavailable

7

COVER, SIDE 2

(1A8-21721-00-R7)

Unavailable

7

COVER, SIDE 2

(1A8-21721-00-U1)

Unavailable

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

GROMMET(41Y)

90480-01401-00

$8.49

10

PAD, BATTERY

371-82121-00-00

$8.99

11

PAD, BATTERY

(371-82126-00-00)

Unavailable

12

EMBLEM 4

(1A8-21784-03-00)

Unavailable

12

EMBLEM 4

(1J3-21784-10-00)

Unavailable

13

EMBLEM 6

(1A8-21786-03-00)

Unavailable

13

EMBLEM 6

(1J3-21786-10-00)

Unavailable

14

HOLDER, KNOB

(1J3-21794-00-00)

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

$2.80
