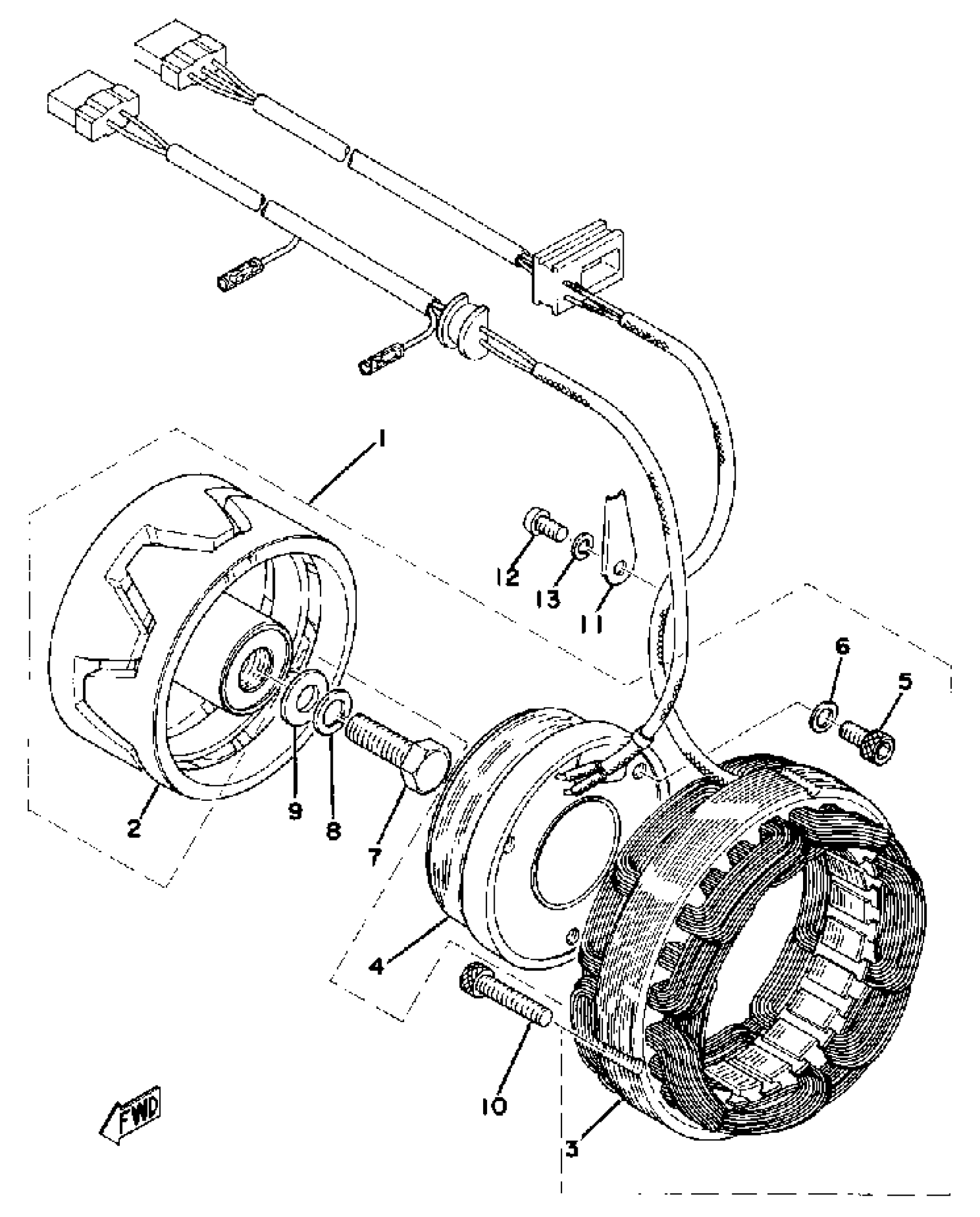

Yamaha XS500C (XS500) 1976 A - C - GENERATOR Diagram

#

Description

Price

1

AC GENERATOR ASSEMBLY

(371-81600-12-00)

Unavailable

2

ROTOR ASSEMBLY

(371-81650-11-00)

Unavailable

3

STATOR ASSEMBLY

(371-81610-10-00)

Unavailable

4

. FIELD COIL ASSEMBLY

371-81660-10-00

Unavailable

5

BOLT,SOCKET

91317-06016-00

$1.25

6

GASKET 256113960000

90430-06014-00

Unavailable

7

BOLT

90101-10105-00

Unavailable

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

WASHER, PLATE

(90201-10133-00)

Unavailable

10

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

11

CLAMP

(90465-10058-00)

Unavailable

12

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35
