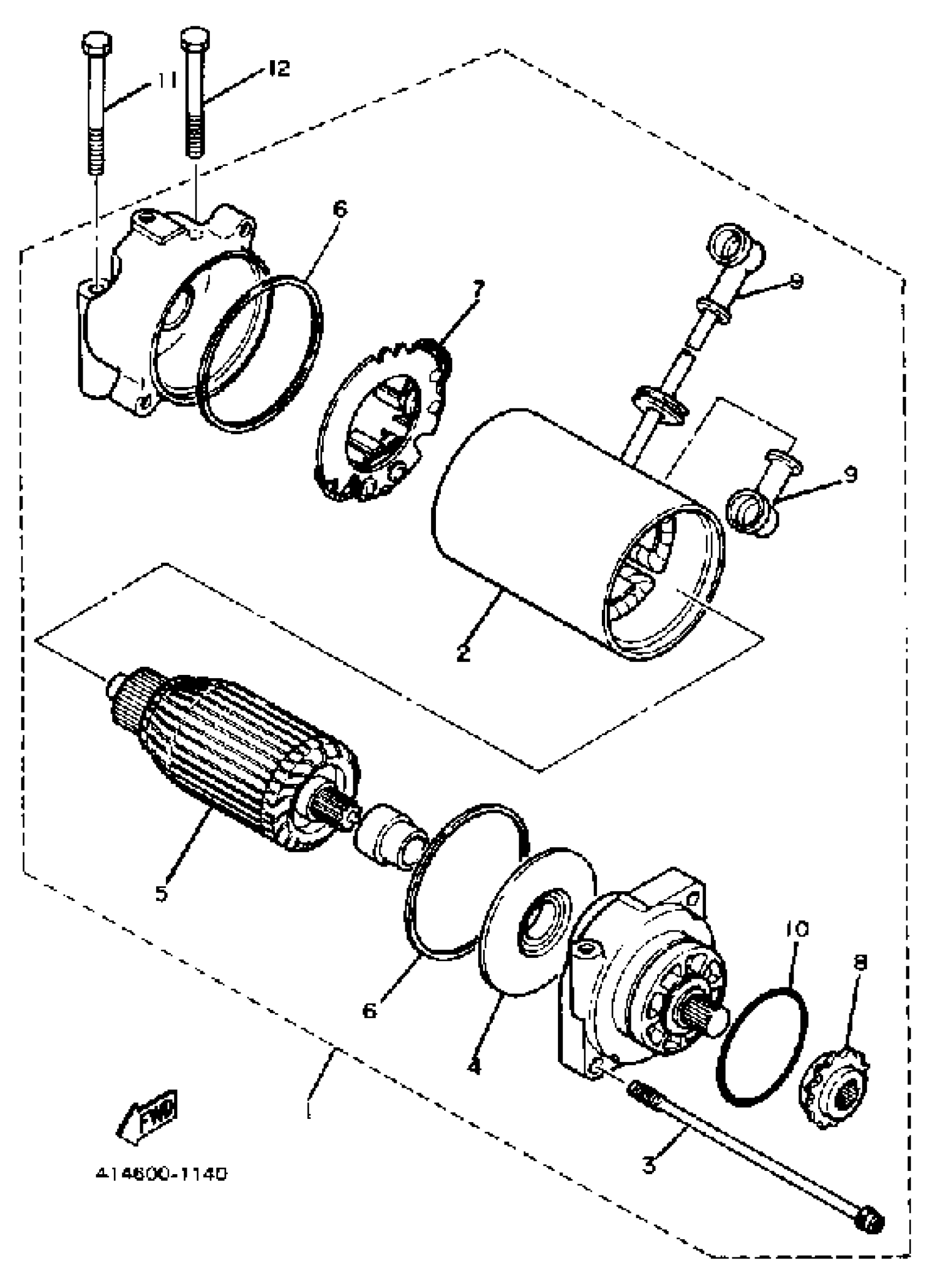

Yamaha XS400SJ (XS400S) 1982 STARTING MOTOR Diagram

#

Description

Price

1

STARTING MOTOR ASY

4R4-81800-61-00

Unavailable

2

STATOR ASSEMBLY

(4R4-81810-61-00)

Unavailable

3

. BOLT

371-81826-20-00

Unavailable

4

. PLATE

4G0-81845-20-00

Unavailable

5

ARMATURE ASSEMBLY

(1L9-81850-21-00)

Unavailable

6

GASKET

4G0-81844-00-00

Unavailable

7

. BRUSH HOLDER ASSEMBLY

4G0-81840-00-00

Unavailable

8

. SPROCKET, STARTER 1

1L9-15518-60-00

Unavailable

9

.. CAP

5H0-81871-00-00

Unavailable

10

O-RING

4G0-81847-00-00

Unavailable

11

BOLT, HEXAGON

97013-06060-00

$7.49

12

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable
