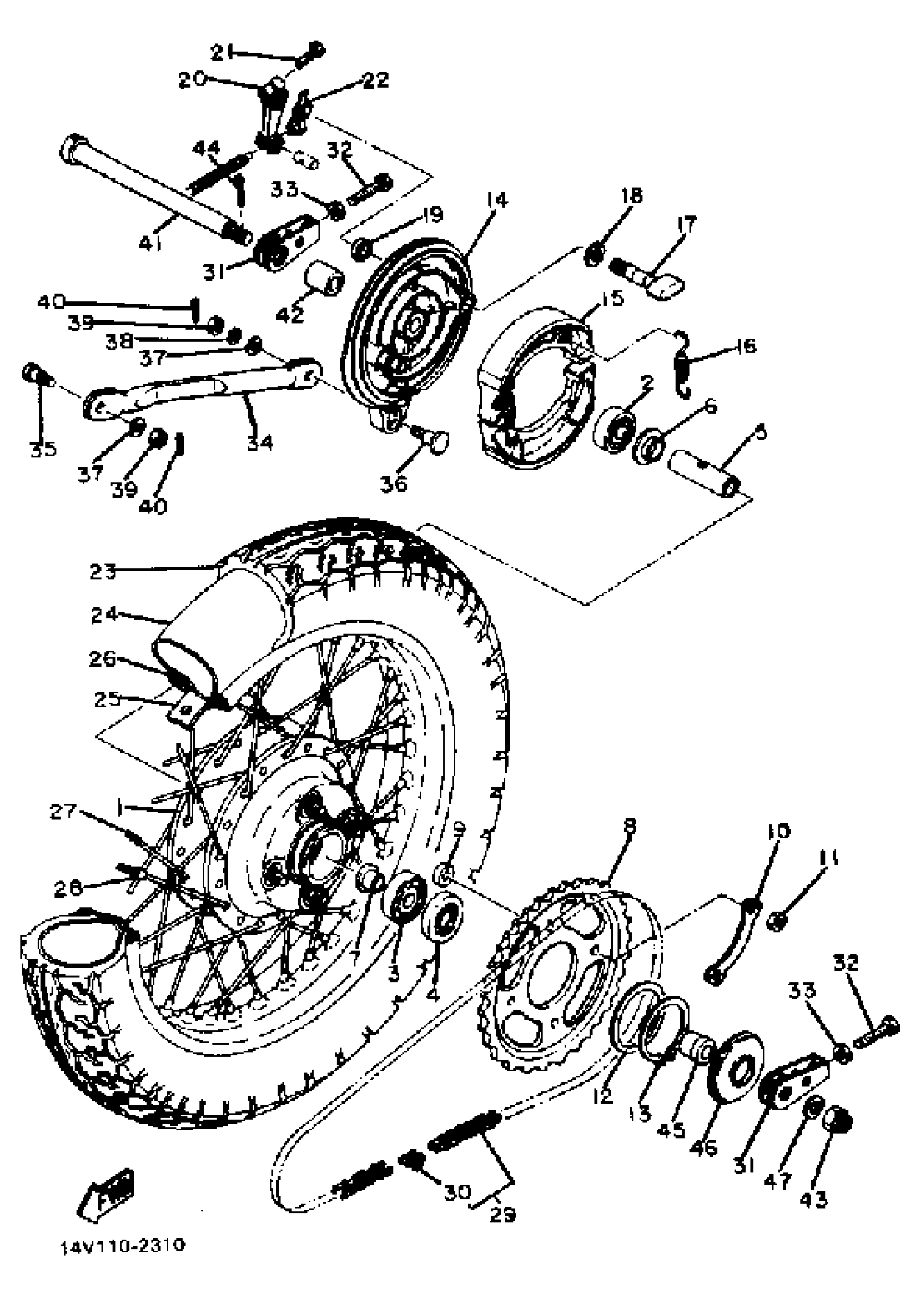

Yamaha XS400SJ (XS400S) 1982 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(2G5-W2531-00-38)

Unavailable

2

BEARING(4HM)

93306-30317-00

$39.99

3

BEARING(3BC)

93306-30437-00

$66.99

4

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

5

SPACER

90560-17162-00

Unavailable

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

COLLAR, WHEEL

1A1-25377-00-00

Unavailable

8

SPROCKET, DRIVN 37T

3F8-25437-20-00

Unavailable

9

COLLAR

90387-23633-00

Unavailable

10

WASHER

1J3-25412-00-00

Unavailable

11

NUT, HEXAGON SMALL

95317-12700-00

$8.49

12

WASHER, PLATE

90201-66585-00

Unavailable

13

CIRCLIP, S-TYPE

93410-65040-00

Unavailable

14

PLATE, BRAKE SHOE

1L9-25321-10-38

Unavailable

15

BRAKE SHOE KIT

1HX-W253E-00-00

$36.99

16

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

17

CAMSHAFT

4R4-25351-00-00

Unavailable

18

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

19

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

20

LEVER, CAMSHAFT

1L9-25355-00-00

Unavailable

21

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

22

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable

23

120/90-16 63S Y987

(94112-16414-00)

Unavailable

24

TUBE(3Y9)

94212-16295-00

Unavailable

25

BAND, RIM

94330-16058-00

Unavailable

26

RIM 2.15X16

94421-16244-00

Unavailable

27

SPOKE SET, REAR

3F8-25304-00-00

Unavailable

28

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

29

DID50HDSS-102L

94580-20102-00

Unavailable

30

. JOINT CHAIN

94685-30011-00

Unavailable

31

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

32

BOLT

90101-08060-00

Unavailable

33

. NUT

95380-08700-00

Unavailable

34

BAR, TENSION

3F9-25371-00-00

Unavailable

35

BOLT

90109-08375-00

Unavailable

36

BOLT

90109-08184-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

AXLE, WHEEL

1J3-25381-00-00

Unavailable

42

COLLAR, WHEEL

3F9-25383-00-00

Unavailable

43

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

44

PIN, COTTER

91490-30030-00

Unavailable

45

COLLAR, WHEEL

3F8-25377-00-00

Unavailable

46

COVER, HUB DUST

1L9-25367-00-00

Unavailable

47

WASHER, PLAIN

92990-14200-00

Unavailable
