1982 Yamaha XS400S (XS400SJ) Frame Diagram

← All diagrams

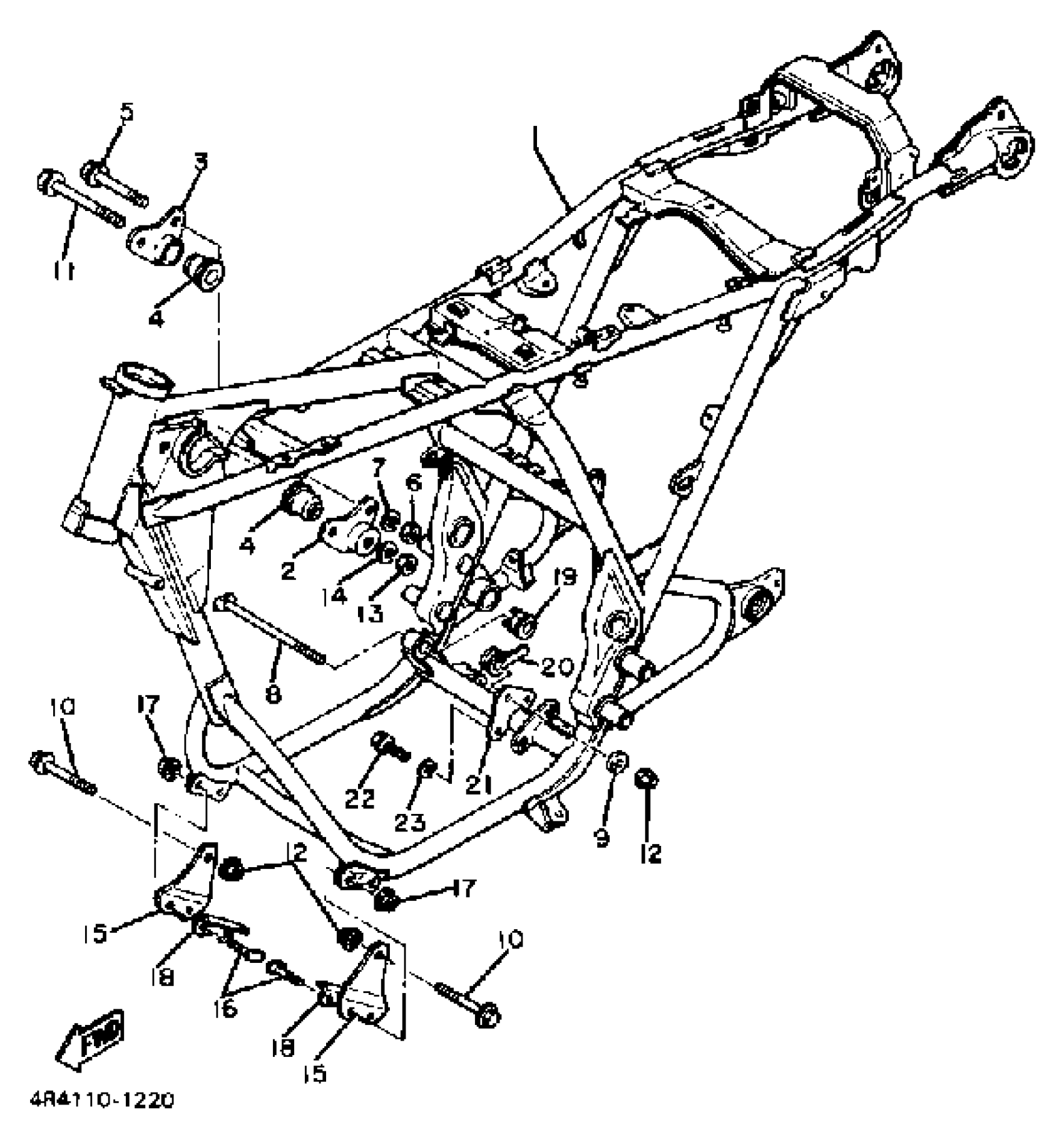

Find the part on the Frame diagram for your 1982 Yamaha XS400S (XS400SJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XS400S (XS400SJ) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(4R4-21110-00-98)

1
Out of stock

2

STAY, ENGINE 3

1L9-21316-01-00

1
Out of stock

3

STAY, ENGINE 4

(1L9-21317-01-00)

1
Out of stock

4

DAMPER, ENG MOUNT 1

1A1-15316-00-00

1
Out of stock

5

BOLT, FLANGE(JN5)

95817-08070-00

1
Out of stock

6

NUT(6L2)

95333-08600-00

1
Out of stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

8

BOLT, ENG MNTNG 2

(4R4-21482-00-00)

1
Out of stock

9

WASHER PLATE 256111740000

90201-10131-00

1
Out of stock

10

BOLT (4R4)

90105-10188-00

1
Out of stock

11

BOLT, WASHER BASED (401)

90105-08120-00

1
Out of stock

12

NUT, SELF-LOCKING

90185-10170-00

1
Out of stock

13

NUT(6L2)

95333-08600-00

1
Out of stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

15

STAY, ENGINE 3

4R4-21316-00-00

1
Out of stock

16

UNAVAILABLE IN PRICE BOOK

4R2-14810-00-0

1
Out of stock

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—
Out of stock

18

WASHER, LOCK

(4R4-21491-00-00)

1
Out of stock

19

DAMPER, RUBBER 1

(4R4-21485-00-00)

1
Out of stock

20

DAMPER 2

(4R4-21486-00-00)

1
Out of stock

21

STAY, ENGINE 6

(4R4-21319-00-00)

1
Out of stock

22

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock
