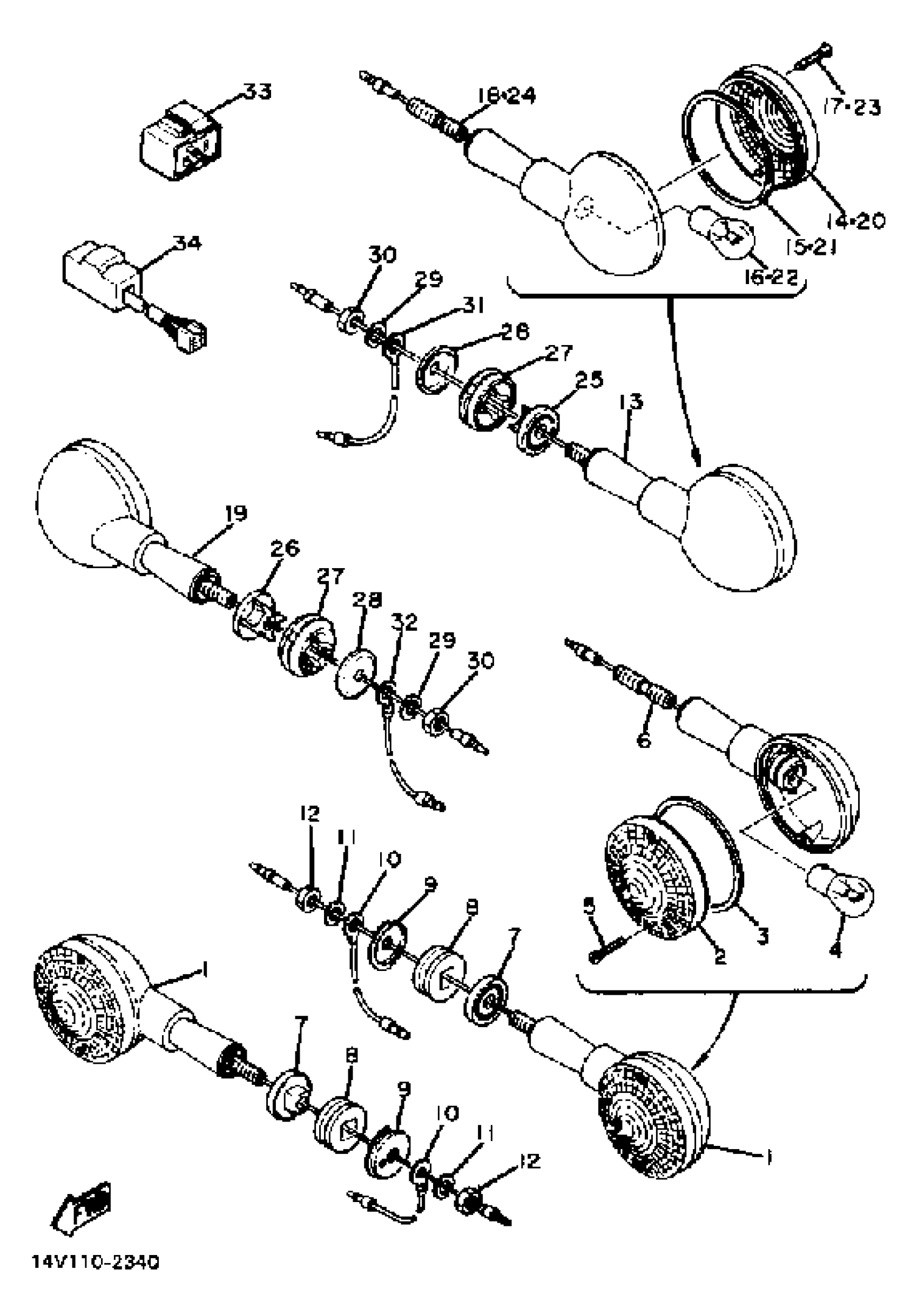

Yamaha XS400SJ (XS400S) 1982 FLASHER LIGHT Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

5U5-83310-K0-00

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, PAN HEAD

(98512-03020-00)

Unavailable

6

. BLT, FLSHR STY FTNG

3X8-83325-K0-00

Unavailable

7

COLLAR, FLASHER 1 (4H1-83316-00)

4H1-83316-01-00

Unavailable

8

DAMPER, FLASHER (371)

341-83321-01-00

$7.99

9

WASHER, PLAIN

92990-08200-00

Unavailable

10

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

NUT(6L2)

95333-08600-00

$2.49

13

R FLSHR LITE ASSEMBLY

5U5-83340-E0-00

Unavailable

14

LENS, FLASHER

341-83312-70-00

Unavailable

15

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

SCREW, PAN HEAD

(98512-03020-00)

Unavailable

18

. BOLT, STUD

360-83367-09-00

Unavailable

19

R FLSHR LITE ASSEMBLY

5U5-83340-E0-00

Unavailable

20

LENS, FLASHER

341-83312-70-00

Unavailable

21

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

22

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

23

SCREW, PAN HEAD

(98512-03020-00)

Unavailable

24

. BOLT, STUD

360-83367-09-00

Unavailable

25

COLLAR, FLASHER 2

1U4-83326-00-00

Unavailable

26

COLLAR, FLASHER 1

1U4-83316-00-00

Unavailable

27

DAMPER, FLASHER 1

1U4-83321-00-00

Unavailable

28

WASHER

90209-08008-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

30

NUT(6L2)

95333-08600-00

$2.49

31

CORD

1H2-83346-00-00

Unavailable

32

WIRE, EARTH LEAD 2

3FU-83364-00-00

Unavailable

33

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

34

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable
