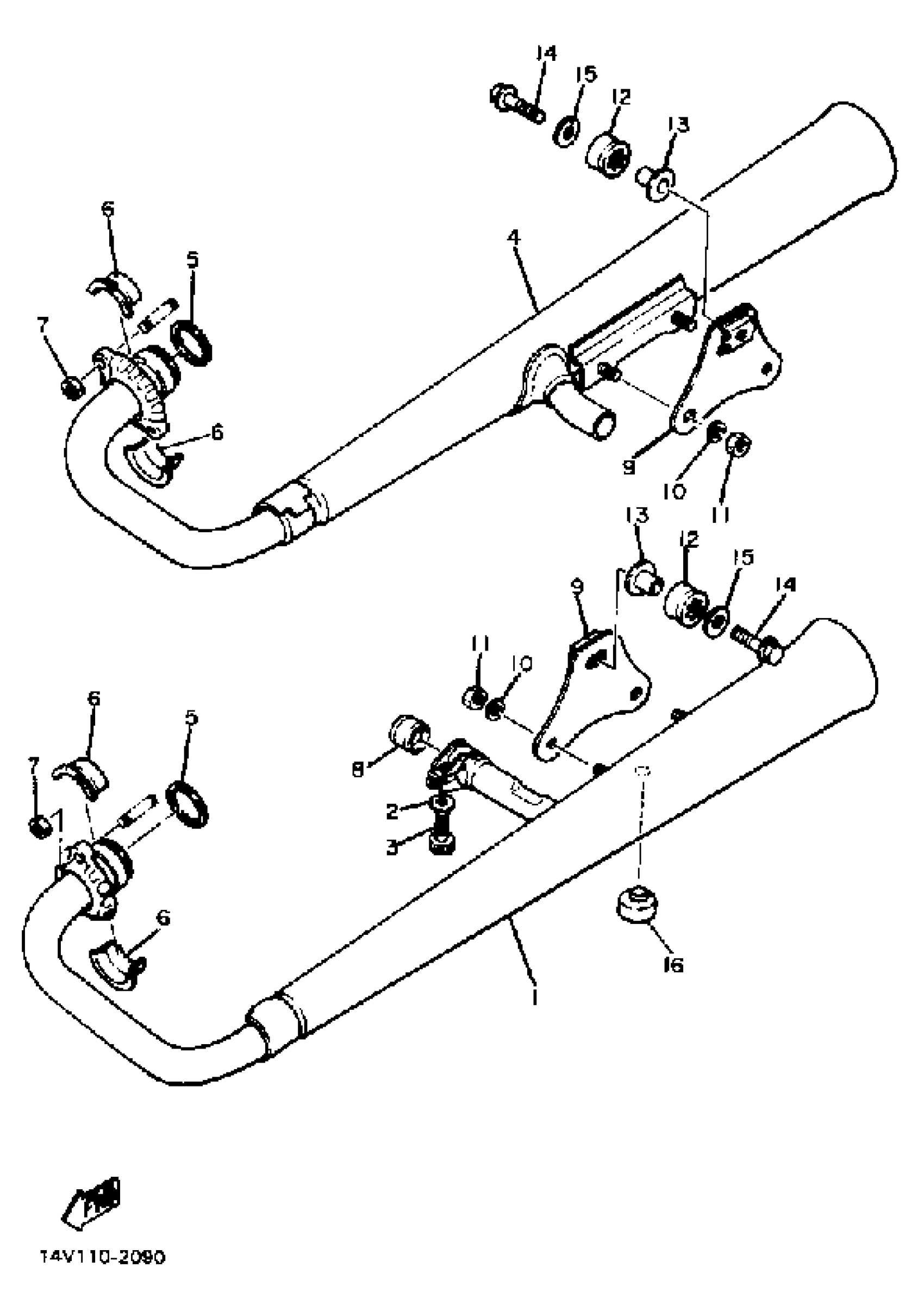

Yamaha XS400SJ (XS400S) 1982 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASY L

3F9-14710-80-00

Unavailable

2

.. WASHER, PLATE

92990-08600-00

$2.17

3

BOLT, SOCKET

91317-08025-00

$5.81

4

MUFFLER ASY R

3F9-14720-80-00

Unavailable

5

GASKET, EXHAUST

1L9-14613-10-00

$10.11

6

FLANGE, EXST PIPE

1J7-14614-00-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.98

8

GASKET, MUFFLER

3YF-14714-00-00

$27.78

9

STAY, MUFFLER 1

4R4-14771-01-00

Unavailable

10

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

11

NUT(6L2)

95333-08600-00

$2.98

12

DAMPER, FOOTREST

(4R4-27414-00-00)

Unavailable

13

COLLAR (2H7)

90387-10636-00

$10.91

14

BOLT, FLANGE

95814-10040-00

$3.43

15

WASHER, PLATE (2H7)

90201-10669-00

$5.84

16

STOPPER MAIN STAND

278-27114-00-00

Unavailable
