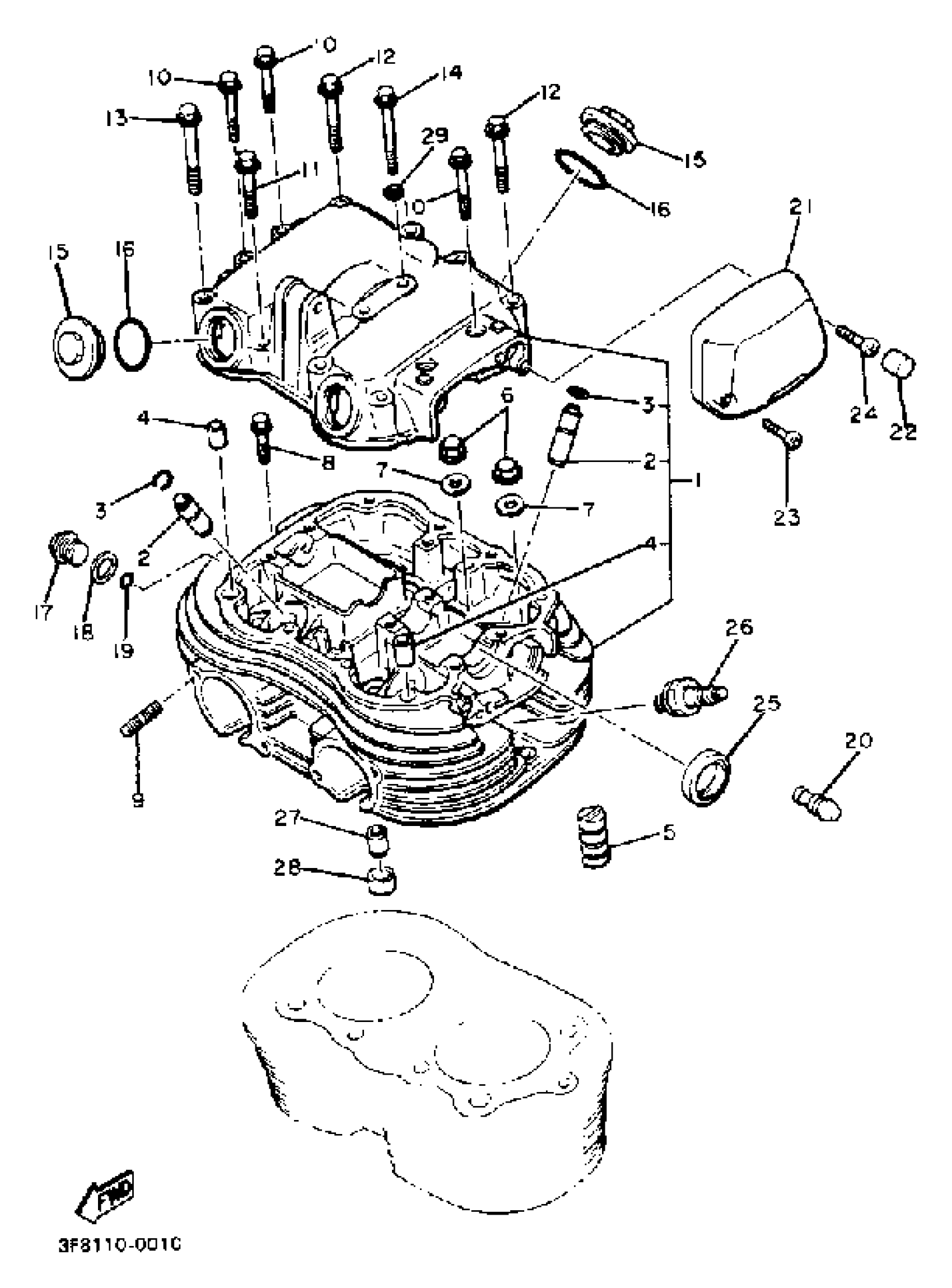

Yamaha XS400SJ (XS400S) 1982 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(14V-11101-00-00)

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

ABSORBER 2

(1L9-11162-30-00)

Unavailable

6

NUT, CROWN(2GG)

90176-10075-00

$8.49

7

WASHER PLATE 341839090000

90201-10128-00

$4.82

8

BOLT, CYLINDER HOLDING 1

(5U5-11361-00-00)

Unavailable

9

BOLT,STUD

90116-08423-00

Unavailable

10

BOLT, FLANGE

95817-06045-00

$8.49

11

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

12

BOLT, FLANGE

(95826-08050-00)

Unavailable

13

BOLT, FLANGE

95817-06060-00

$4.14

14

BOLT, FLANGE

95817-06060-00

$4.14

15

PLUG, VIEWER

1H2-11186-00-00

$41.99

16

O-RING (341)

93210-32172-00

Unavailable

17

PLUG, ROCKER

1L9-11177-01-00

Unavailable

18

GASKET

90430-16048-00

Unavailable

19

O-RING

93210-07438-00

Unavailable

20

PLUG, BLIND

1L9-11197-00-00

Unavailable

21

COVER, BREAKER 1

3F9-11157-00-00

Unavailable

22

PLUG, STRAIGHT

90334-11035-00

Unavailable

23

SCREW, PAN

98507-05035-00

Unavailable

24

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

25

OIL SEAL, SD-TYPE

93102-23190-00

Unavailable

26

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

27

PIN, DOWEL

99530-14016-00

Unavailable

28

GASKET (1L9)

90430-14131-00

Unavailable

29

WASHER, PLATE (1L9)

90201-06630-00

Unavailable
