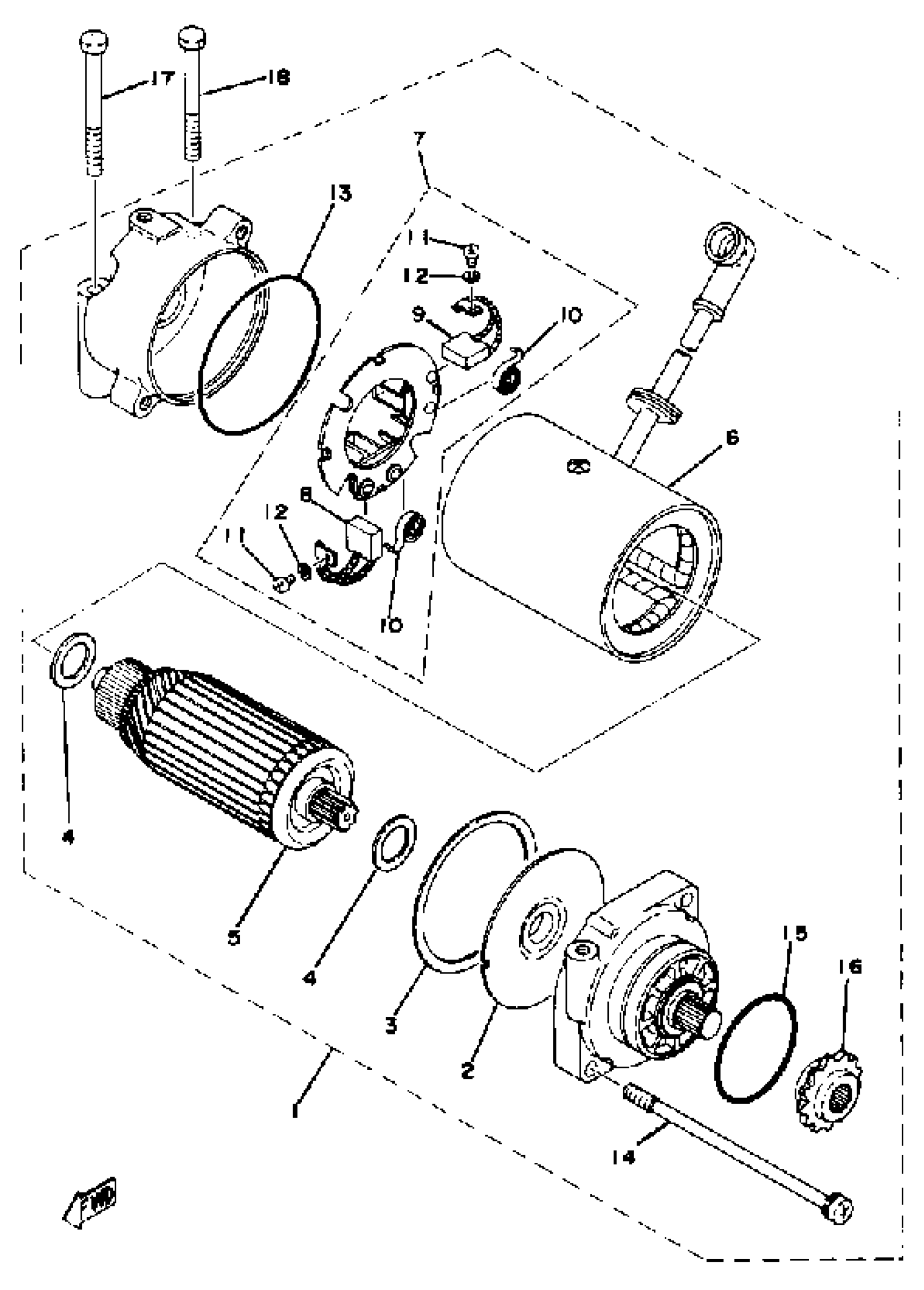

Yamaha XS400SH (XS400S) 1981 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASY

4R4-81800-61-00

Unavailable

2

PLATE

(371-81845-20-00)

Unavailable

3

. GASKET

371-81844-20-00

Unavailable

4

. WASHER KIT

371-81809-20-00

Unavailable

5

ARMATURE ASSEMBLY

(1L9-81850-20-00)

Unavailable

6

STARTING MOTOR ASY

4R4-81800-61-00

Unavailable

7

. UNAVAILABLE IN PRICE BOOK

1L9-W8181-60-00

Unavailable

8

.. BRUSH 1

1L9-81811-60-00

Unavailable

9

.. BRUSH 2

1L9-81812-60-00

Unavailable

10

.. SPRING, BRUSH

1L9-81813-20-00

Unavailable

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

WASHER, SPRING

92990-03100-00

$8.49

13

.. O-RING

371-81847-20-00

Unavailable

14

. BOLT

371-81826-20-00

Unavailable

15

. O-RING

1L9-81847-60-00

Unavailable

16

. SPROCKET, STARTER 1

1L9-15518-60-00

Unavailable

17

BOLT, HEXAGON

97013-06060-00

Unavailable

18

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable
