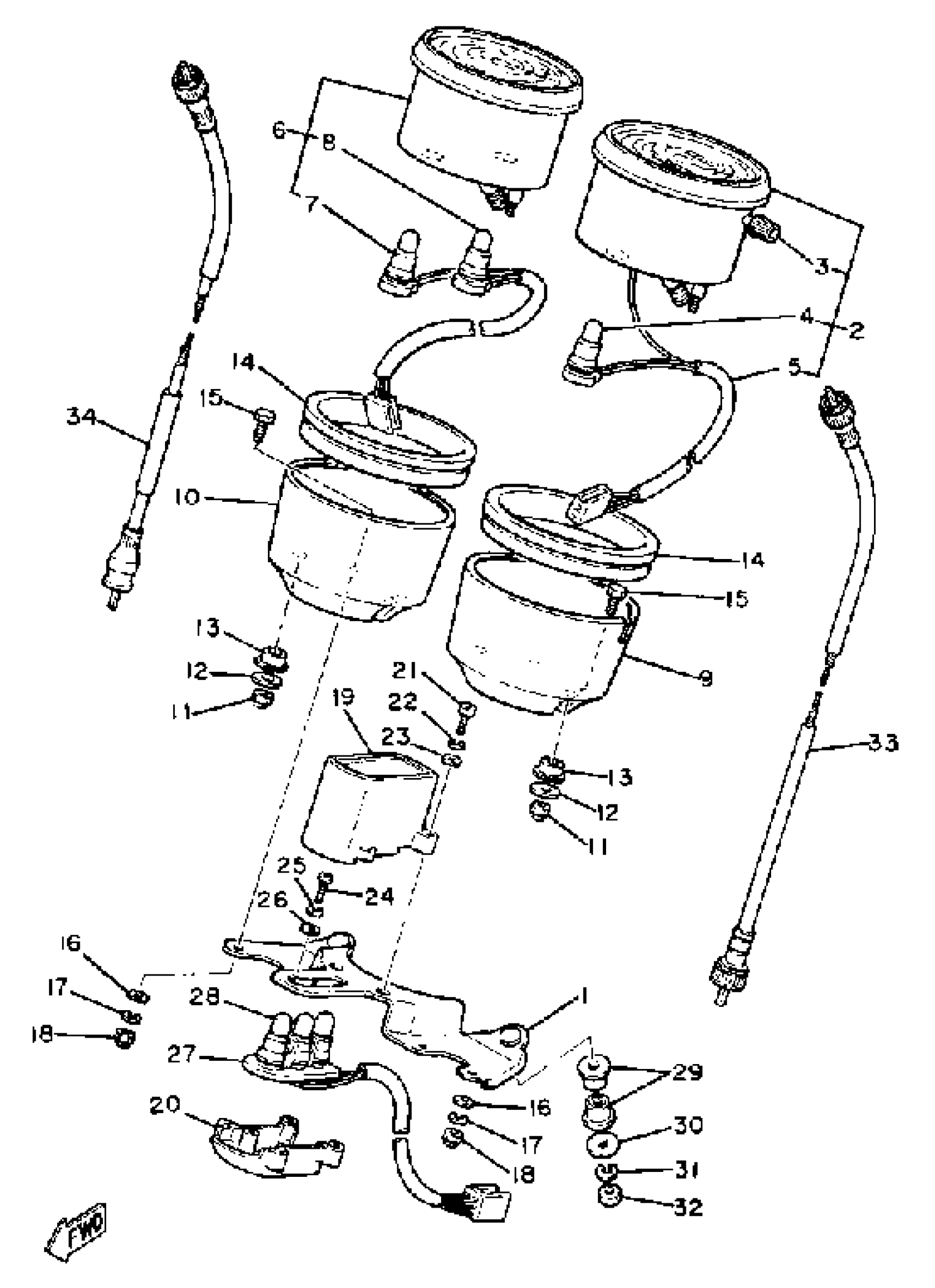

Yamaha XS400SH (XS400S) 1981 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

BRACKET, METER

3F9-83519-01-00

Unavailable

2

SPEEDOMETER ASSY

5H1-83570-A0-00

Unavailable

3

KNOB, TRIP METER

4SV-83578-00-00

$18.49

4

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

5

. SOCKET CORD ASSY

10M-83520-20-00

Unavailable

6

TACHOMETER ASSY

3J3-83540-A1-00

Unavailable

7

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

Unavailable

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

9

COVER, SPEEDOMETER

2J2-83507-00-00

$55.99

10

COVER, TACHOMETER

2J2-83508-00-00

$50.99

11

NUT (CROWN)

95303-05800-00

Unavailable

12

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

13

DAMPER, METER COVER FITTING

584-83523-00-00

$9.99

14

DAMPER

3H3-83513-00-00

$44.99

15

BOLT

584-83546-00-00

$5.49

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT (J17)

95380-06800-00

Unavailable

19

PILOT BOX, UPPER

2L0-83568-A0-00

Unavailable

20

PILOT BOX, LOWER

2G2-83569-A0-00

Unavailable

21

SCREW, PAN HEAD

98517-04012-00

Unavailable

22

WASHER(6TA)

92907-04100-00

Unavailable

23

WASHER(JF2)

92907-04600-00

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

25

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

26

WASHER, PLAIN (646)

92990-04600-00

Unavailable

27

SOCKET CORD ASSEMBLY

(3F9-83509-01-00)

Unavailable

28

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

29

DAMPER

1A0-83523-00-00

Unavailable

30

WASHER, PLATE

90201-06380-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

NUT, HEXAGON

95380-06600-00

Unavailable

33

SPEEDOMETER CABLE ASSY

3VP-83550-02-00

Unavailable

34

TACHOMETER CABLE

4N5-83560-00-00

Unavailable
