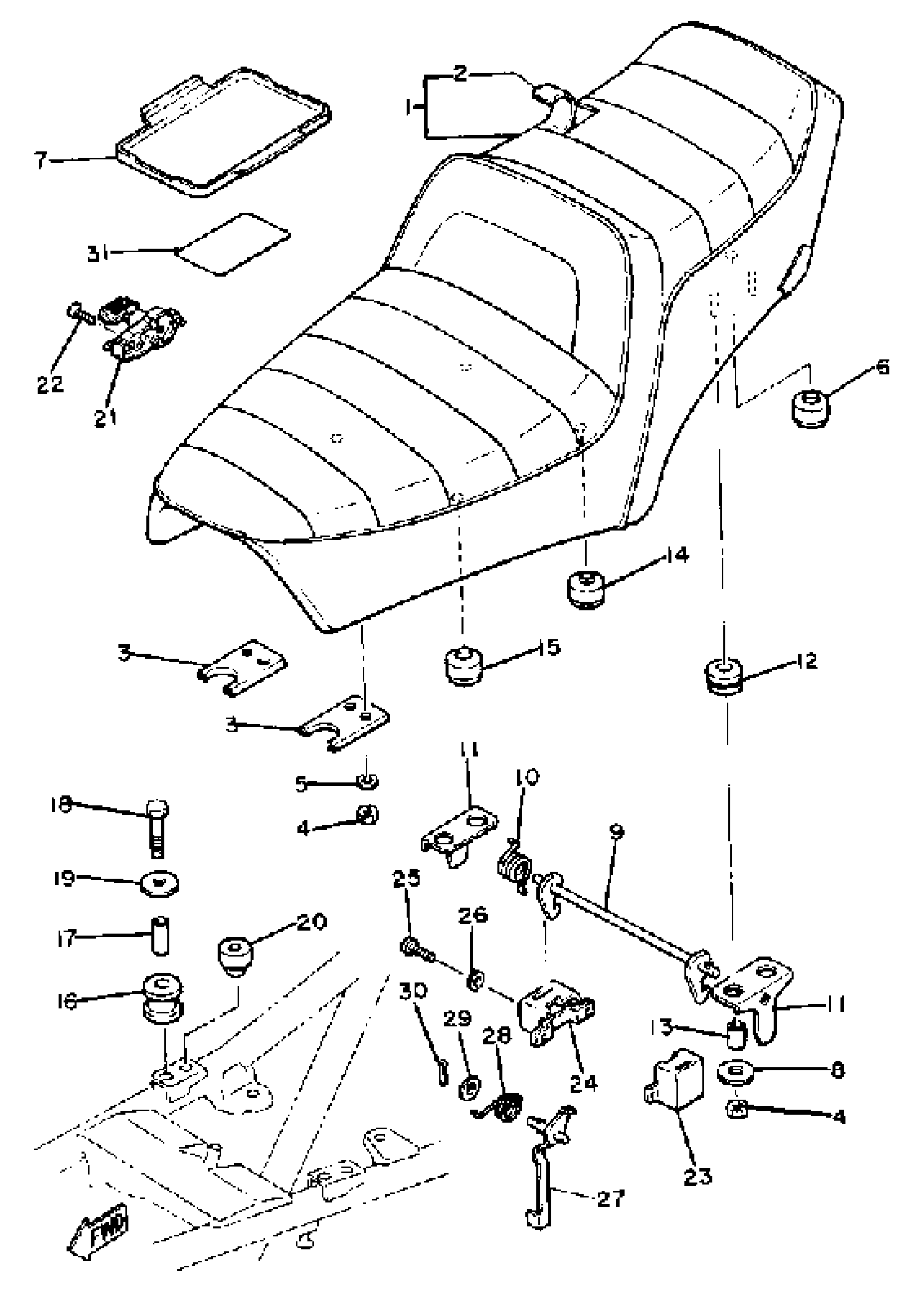

Yamaha XS400SH (XS400S) 1981 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASY

3F9-W2472-00-00

Unavailable

2

COVER, DOUBLE SEAT

(4R4-24731-00-00)

Unavailable

3

BRACKET, SEAT

(3F9-24748-00-00)

Unavailable

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

UNAVAILABLE IN PRICE BOOK

1G4-24741-00-00

Unavailable

7

LID

395-28185-00-00

Unavailable

8

WASHER, PLATE

90201-06380-00

$0.60

9

HOOK, SEAT

3F9-24754-00-00

Unavailable

10

SPRING (3G1)

90508-20412-00

$7.49

11

BRACKET, SEAT

3F9-24718-00-00

Unavailable

12

DAMPER, SEAT

1J7-24723-00-00

Unavailable

13

SPACER

90560-07007-00

$9.49

14

STOPPER, MAIN STAND

371-27114-00-00

$7.99

15

PAD, SEAT

3J2-24741-00-00

Unavailable

16

DAMPER, SEAT

3F9-24737-00-00

Unavailable

17

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

18

BOLT, HEXAGON

97017-06030-00

Unavailable

19

WASHER PLATE 248217570000

90201-06074-00

Unavailable

20

STOPPER

1M3-27114-00-00

Unavailable

21

SEAT LOCK ASSY

3Y6-24705-00-00

Unavailable

22

SCREW (4G1)

90149-06154-00

Unavailable

23

BRACKET, SEAT LVR 1

3J3-2475H-00-00

Unavailable

24

BRACKET, SEAT LVR 2

3F9-2475J-00-00

Unavailable

25

SCREW, PAN

98517-06012-00

Unavailable

26

WASHER(6TA)

92907-06600-00

Unavailable

27

LEVER, SEAT

3F9-24776-00-00

Unavailable

28

SPRING

3F9-24758-00-00

Unavailable

29

WASHER(6TA)

92907-08600-00

Unavailable

30

PIN, COTTER

91490-25020-00

Unavailable

31

PLATE, SPEC

(4R4-21683-00-00)

Unavailable
