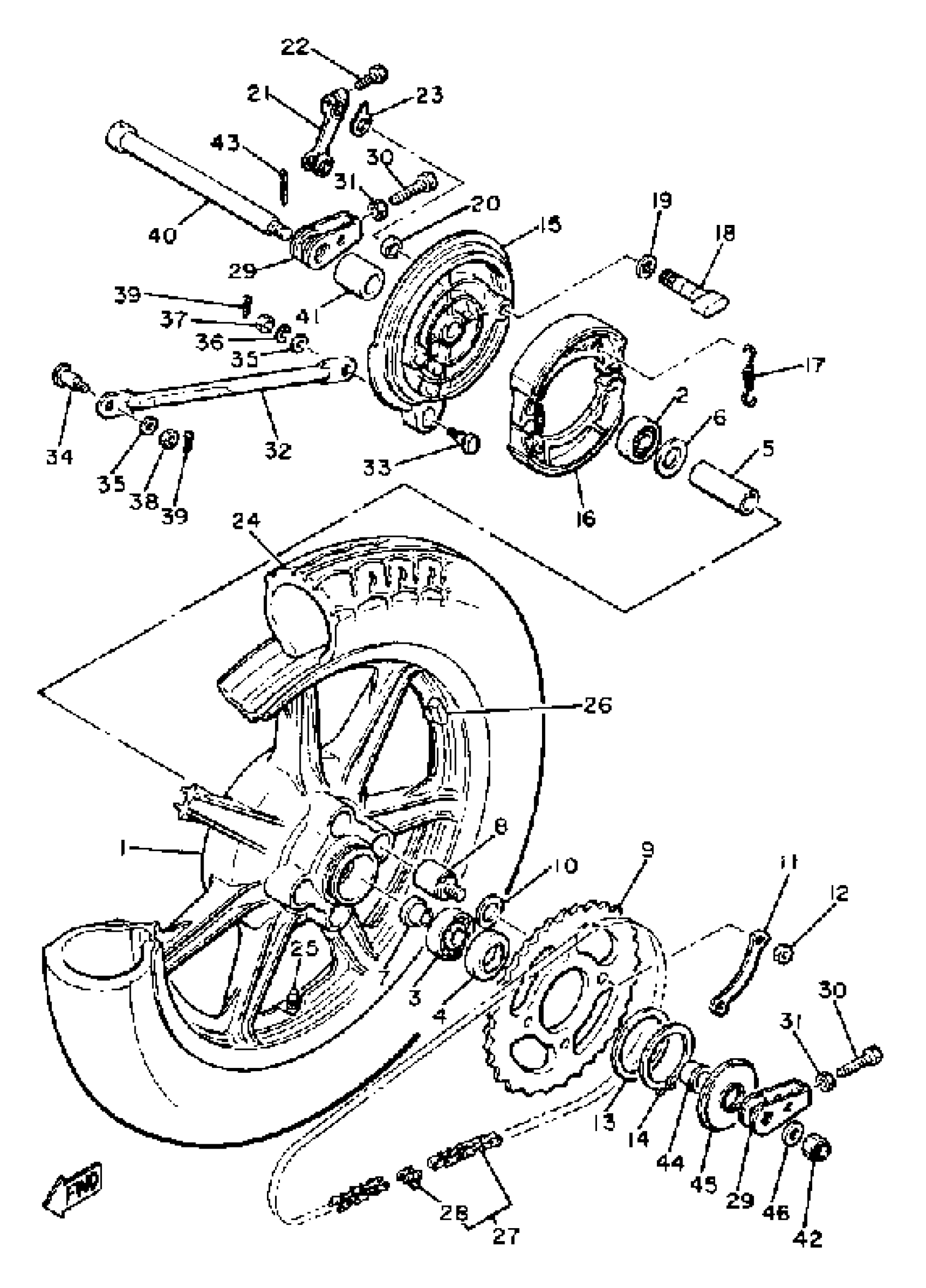

Yamaha XS400SH (XS400S) 1981 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(3F9-25338-00-98)

Unavailable

2

BEARING(4HM)

93306-30317-00

$39.99

3

BEARING(3BC)

93306-30437-00

$66.99

4

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

5

SPACER, BEARING

(3F9-25317-00-00)

Unavailable

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

COLLAR, WHEEL

1A1-25377-00-00

Unavailable

8

DAMPER

1U4-25364-00-00

Unavailable

9

SPROCKET, DRIVN 37T

1J3-25437-20-00

Unavailable

10

COLLAR

90387-20565-00

Unavailable

11

WASHER

1J3-25412-00-00

Unavailable

12

NUT, HEXAGON SMALL

95317-12700-00

$8.49

13

WASHER, PLATE

90201-66585-00

Unavailable

14

CIRCLIP, S-TYPE

93410-65040-00

Unavailable

15

PLATE, BRAKE SHOE

(1L9-25321-10-98)

Unavailable

16

BRAKE SHOE KIT

1HX-W253E-00-00

Unavailable

17

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

18

CAMSHAFT

4R4-25351-00-00

Unavailable

19

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

20

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

21

LEVER, CAMSHAFT

1L9-25355-00-00

Unavailable

22

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

23

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable

24

120/90-16Y987TL63S

(94112-16407-00)

Unavailable

25

VALVE, RIM (31A)

93900-00031-00

Unavailable

26

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

26

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

26

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

27

DID50HDSS-102L

94580-20102-00

Unavailable

28

. JOINT CHAIN

94685-30011-00

Unavailable

29

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

30

BOLT

90101-08060-00

Unavailable

31

. NUT

95380-08700-00

Unavailable

32

BAR, TENSION

3F9-25371-00-00

Unavailable

33

BOLT

90109-08375-00

Unavailable

34

BOLT

90109-08184-00

Unavailable

35

.. WASHER, PLATE

92990-08600-00

Unavailable

36

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

37

. NUT

95380-08700-00

Unavailable

38

NUT, HEXAGON (509)

90170-08158-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

AXLE, WHEEL

1J3-25381-00-00

Unavailable

41

COLLAR, WHEEL

3F9-25383-00-00

Unavailable

42

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

43

PIN, COTTER

91490-30030-00

Unavailable

44

COLLAR

90387-17551-00

Unavailable

45

COVER, HUB DUST

1L9-25367-00-00

Unavailable

46

WASHER, PLAIN

92990-14200-00

Unavailable
