Description

Price

1

SWITCH, HANDLE 2

2H7-83975-09-00

Unavailable

2

SCREW, PAN HEAD

98517-05030-00

$10.49

3

SCREW, PAN

98507-05040-00

$8.49

4

SWITCH, HANDLE 3

3F9-83973-00-00

Unavailable

5

SCREW, PAN HEAD

98517-05030-00

$10.49

6

BAND, SWITCH CORD

437-83936-01-00

$7.99

7

HOLDER, LEVER 1

3Y6-82911-00-00

$55.99

8

LEVER L

2H0-83912-31-00

$31.99

9

SWITCH

3Y6-82917-00-00

Unavailable

10

BOLT(1FG)

90109-06798-00

$8.49

11

WASHER, PLATE 1562722600

90201-08083-00

$9.49

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

O-RING (2H7)

93210-11368-00

$5.60

14

BOLT, HEXAGON

97007-06022-00

Unavailable

15

WASHER, SPRING

92907-06100-00

$4.25

16

LEVER 2

4L0-83922-00-00

Unavailable

17

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

18

SCREW (2L0)

90149-06131-00

Unavailable

19

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

20

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

21

BOLT (4L0)

90109-06577-00

Unavailable

22

NUT, SELF-LOCKING

95617-06100-00

$8.49

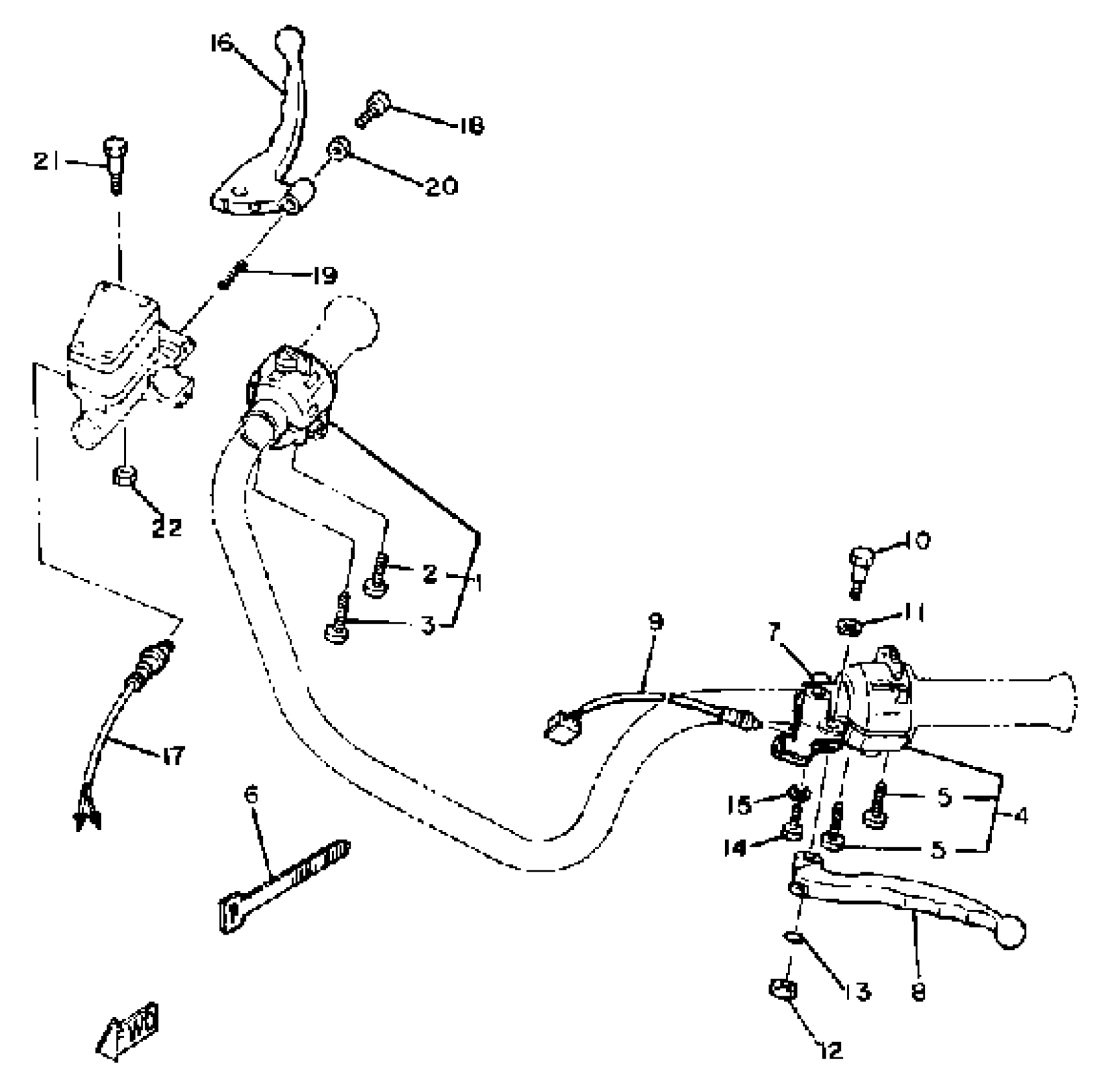

Yamaha XS400SH (XS400S) 1981 HANDLE SWITCH LEVER Diagram

SWITCH, HANDLE 2

SCREW, PAN HEAD

SCREW, PAN

SWITCH, HANDLE 3

SCREW, PAN HEAD

BAND, SWITCH CORD

HOLDER, LEVER 1

LEVER L

SWITCH

BOLT(1FG)

WASHER, PLATE 1562722600

NUT, SELF-LOCKING

O-RING (2H7)

BOLT, HEXAGON

WASHER, SPRING

LEVER 2

FRONT STOP SWITCH ASSY

SCREW (2L0)

SPRING COMPRESSION306839240000

NUT HEXAGON 306839270000

BOLT (4L0)

NUT, SELF-LOCKING
