Description

Price

1

MSTR CYLINDER ASSEMBLY

3G1-25850-00-00

Unavailable

2

CYLINDER KIT, MASTER

535-W0041-60-00

$144.99

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

SCREW,FLAT HEAD

98707-05030-00

Unavailable

5

. GASKET

1J3-25855-01-00

Unavailable

6

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

Unavailable

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

PLUG (341-26329-00)

90338-09012-00

$9.49

9

BOLT, HEXAGON

97017-06025-00

$4.24

10

WASHER, SPRING

92907-06100-00

$4.25

11

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

12

HOSE, BRAKE 1

3F9-25872-11-00

Unavailable

13

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

14

BOLT, UNION(3GM)

90401-10159-00

$11.49

15

WASHER, PLATE(481)

90201-10118-00

Unavailable

16

HOLDER, BRKE HOSE 1

(2L0-25875-00-00)

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

HOLDER, BRKE HOSE 2

(1L9-25876-00-00)

Unavailable

20

BOLT, HEXAGON

97017-06025-00

$4.24

21

WASHER, SPRING

92995-06100-00

Unavailable

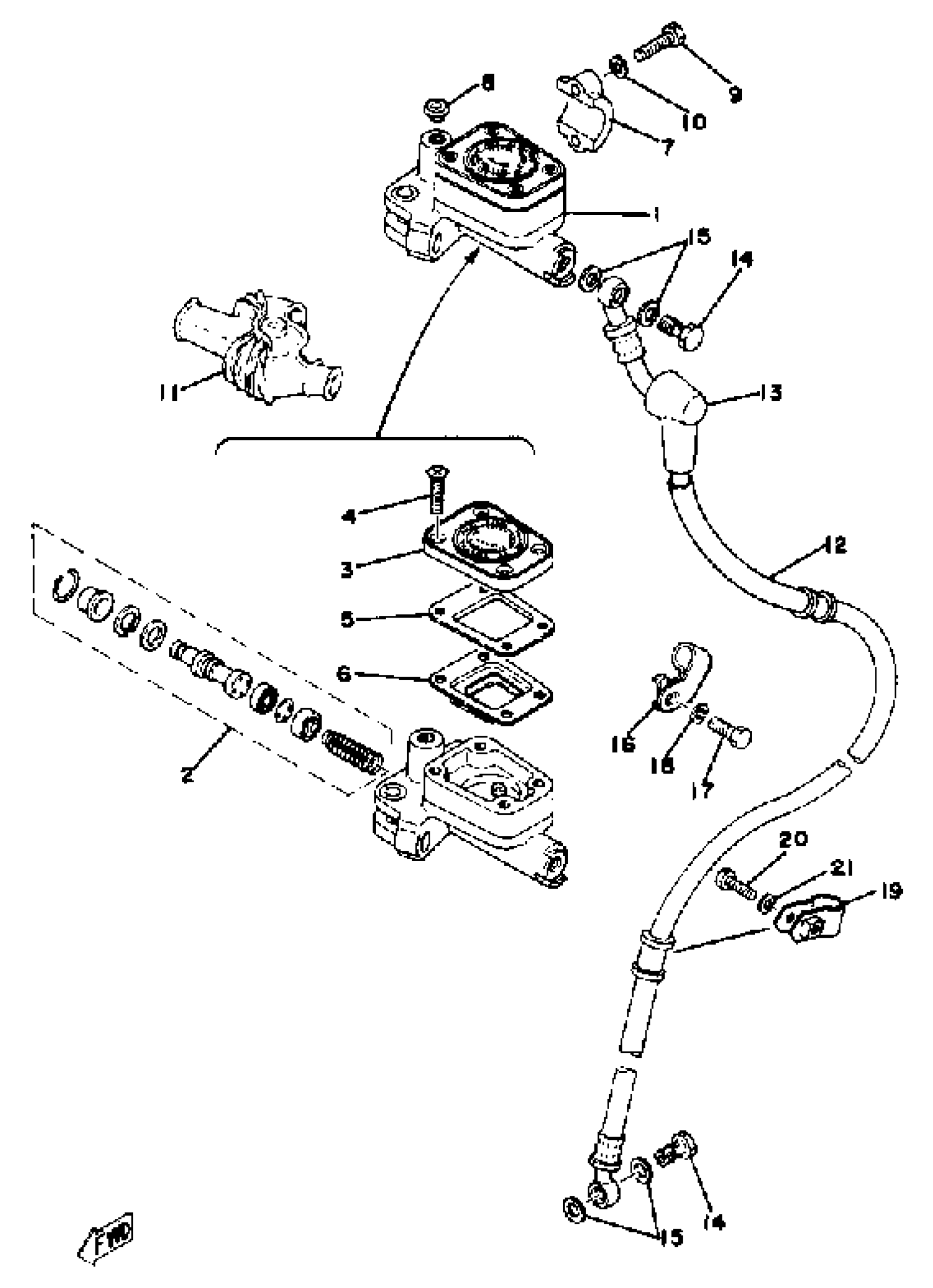

Yamaha XS400SH (XS400S) 1981 FRONT MASTER CYLINDER Diagram

MSTR CYLINDER ASSEMBLY

CYLINDER KIT, MASTER

. RESERVOIR CAP ASSY

SCREW,FLAT HEAD

. GASKET

DIAPHRAGM, RESERVOIR

BRACKET, MASTER

PLUG (341-26329-00)

BOLT, HEXAGON

WASHER, SPRING

COVER, HANDLE LEVER (R.H)

HOSE, BRAKE 1

BOOT, MASTER CYLINDER

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRKE HOSE 1

BOLT (661)

WASHER, SPRING

HOLDER, BRKE HOSE 2

BOLT, HEXAGON

WASHER, SPRING
