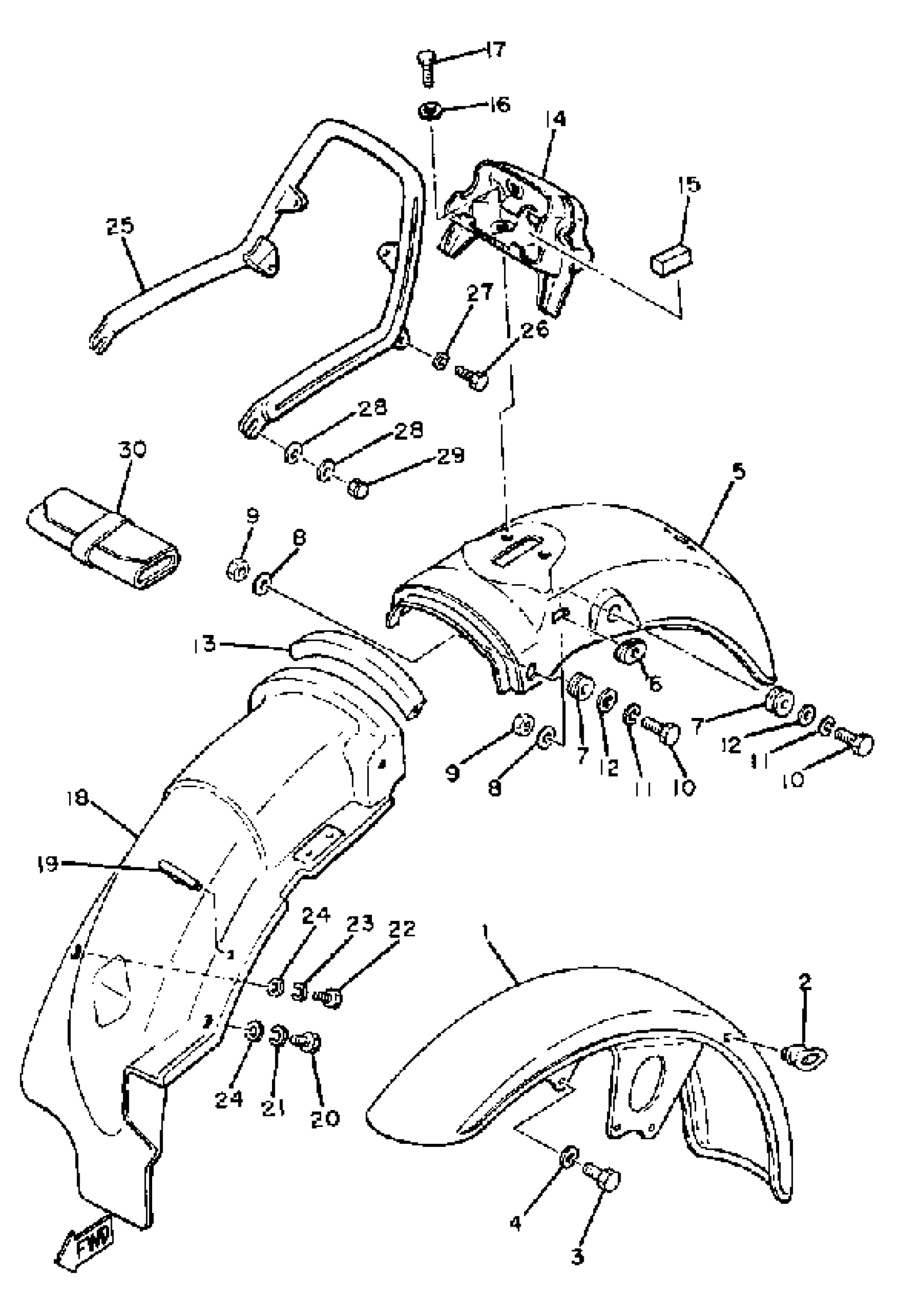

Yamaha XS400SH (XS400S) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER,FRONT (2L0-21510-00-93)

2L0-21510-01-93

Unavailable

2

HOLDER, WIRE

1A0-21518-00-00

Unavailable

3

BOLT(JA9)

90101-08691-00

$4.29

4

WASHER, PLAIN

92990-08200-00

Unavailable

5

FENDER, REAR

3F9-21610-00-93

Unavailable

6

GROMMET (438)

90480-15061-00

$8.49

7

DAMPER, FRONT

168-21638-00-00

$9.99

8

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

9

NUT, REAR FENDER

248-21635-00-00

Unavailable

10

BOLT, HEXAGON

97017-08025-00

$10.49

11

WASHER(JN5)

92907-08100-00

$8.49

12

WASHER(6TA)

92907-08600-00

$3.03

13

SEAL

(2L0-21268-00-00)

Unavailable

14

COVER, TAIL

3F9-24756-00-00

Unavailable

15

SEAL

(3F9-2472E-00-00)

Unavailable

16

WASHER, PLATE

90201-06380-00

Unavailable

17

BOLT(8CP)

97017-06014-00

Unavailable

18

GUARD, MUD

3F9-21620-00-00

Unavailable

19

CLAMP (1J7)

90464-16025-00

Unavailable

20

BOLT(8CP)

97017-06014-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

25

STAY, REAR

(3F9-21645-00-00)

Unavailable

26

BOLT, HEXAGON

97013-08020-00

Unavailable

27

WASHER, PLAIN

92990-08200-00

Unavailable

28

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

29

NUT, CAP (371)

90176-10009-00

Unavailable

30

TOOL KIT

1L9-28100-00-00

Unavailable
