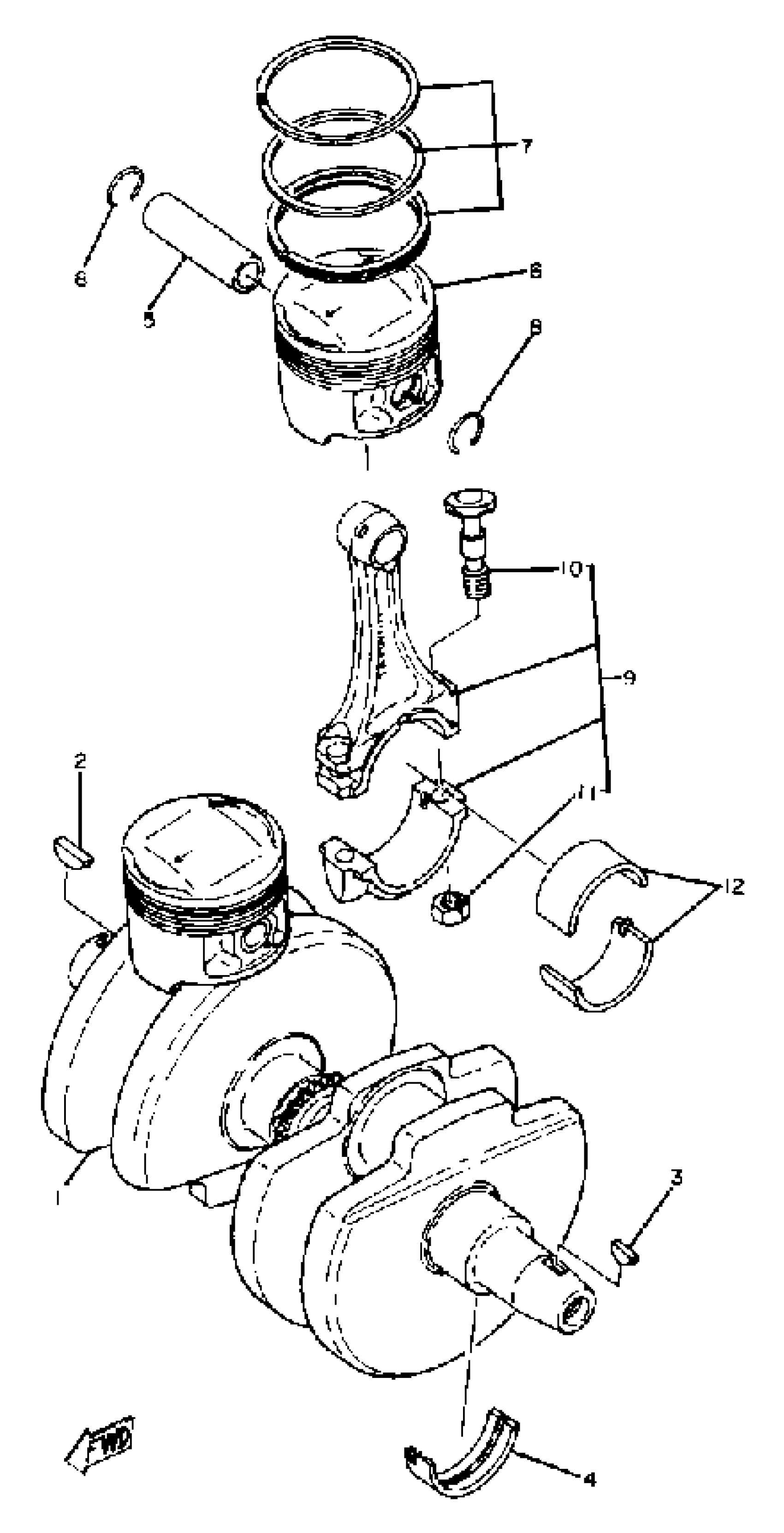

Yamaha XS400SH (XS400S) 1981 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

(2A2-11411-00-00)

Unavailable

2

KEY, WOODRUFF

90280-05049-00

Unavailable

3

KEY,WOODRUFF

90280-04005-00

Unavailable

4

PLANE BRNG, CRSF 1

12R-11416-00-00

Unavailable

4

PLANE BRNG, CRSF 1

12R-11416-10-00

Unavailable

4

PLANE BRNG, CRSF 1

12R-11416-20-00

Unavailable

4

PLANE BRNG, CRSF 1

12R-11416-30-00

Unavailable

5

PIN, PISTON

29U-11633-00-00

Unavailable

6

PISTON STD

2L0-11631-00-Y0

Unavailable

6

PISTON 1 OS 0.25

2L0-11635-00-00

Unavailable

6

PISTON 2 OS 0.50

2L0-11636-00-00

Unavailable

6

PISTON 3 O/S 0.75

(2L0-11637-00-00)

Unavailable

6

PISTON 4 OS 1.00

2L0-11638-00-00

Unavailable

7

PISTON RINGSET STD

2A2-11610-00-00

Unavailable

7

PISTON RINGSET 1ST

2A2-11610-10-00

Unavailable

7

PISTON RINGSET 2ND

2A2-11610-20-00

Unavailable

7

PISTON RINGSET 3RD

2A2-11610-30-00

Unavailable

7

PISTON RINGSET 4TH

2A2-11610-40-00

Unavailable

8

CIRCLIP (1L9)

93450-17044-00

Unavailable

9

CONNECTING ROD ASSY

1L9-Y1165-00-00

Unavailable

10

. BOLT, CON ROD

371-11654-01-00

Unavailable

11

. NUT, HEXAGON

90170-08129-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

36Y-11656-00-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

36Y-11656-10-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

36Y-11656-20-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

36Y-11656-30-00

Unavailable
