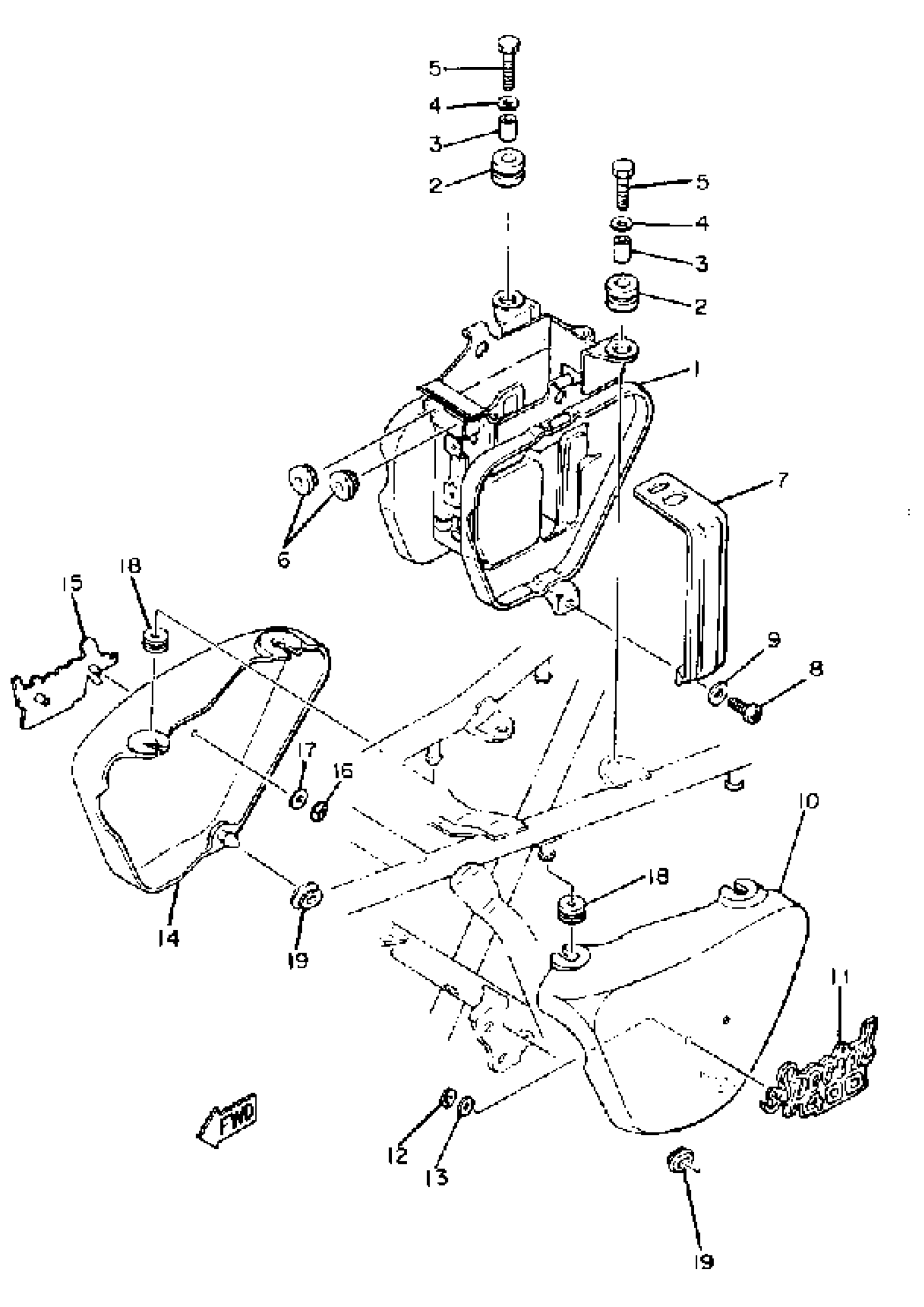

Yamaha XS400SG (XS400S) 1980 SIDE COVER Diagram

#

Description
Price

1

BOX

(3F9-21240-00-00)

Unavailable

2

GROMMET 839774310000

90480-14023-00

$7.49

3

COLLAR

90387-07020-00

$8.49

4

WASHER, PLATE

90201-06380-00

$0.60

5

BOLT, HEXAGON

97017-06025-00

$4.24

6

DAMPER

1J7-21746-00-00

Unavailable

7

BAND, TANK FITTING

1L9-21776-01-00

Unavailable

8

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

COVER, SIDE 1

4R4-21711-00-4H

Unavailable

10

COVER, SIDE 1

4R4-21711-00-H9

Unavailable

11

EMBLEM 1

3F9-21781-00-00

Unavailable

12

NUT SPRING 116283170100

90183-04005-00

$10.49

13

WASHER PLATE 174283160000

90202-04003-00

$8.49

14

COVER, SIDE 2

4R4-21721-00-4H

Unavailable

14

COVER, SIDE 2

4R4-21721-00-H9

Unavailable

15

EMBLEM 2

3F9-21782-00-00

Unavailable

16

NUT SPRING 116283170100

90183-04005-00

$10.49

17

WASHER PLATE 174283160000

90202-04003-00

$8.49

18

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

19

GROMMET(41Y)

90480-01401-00

Unavailable
