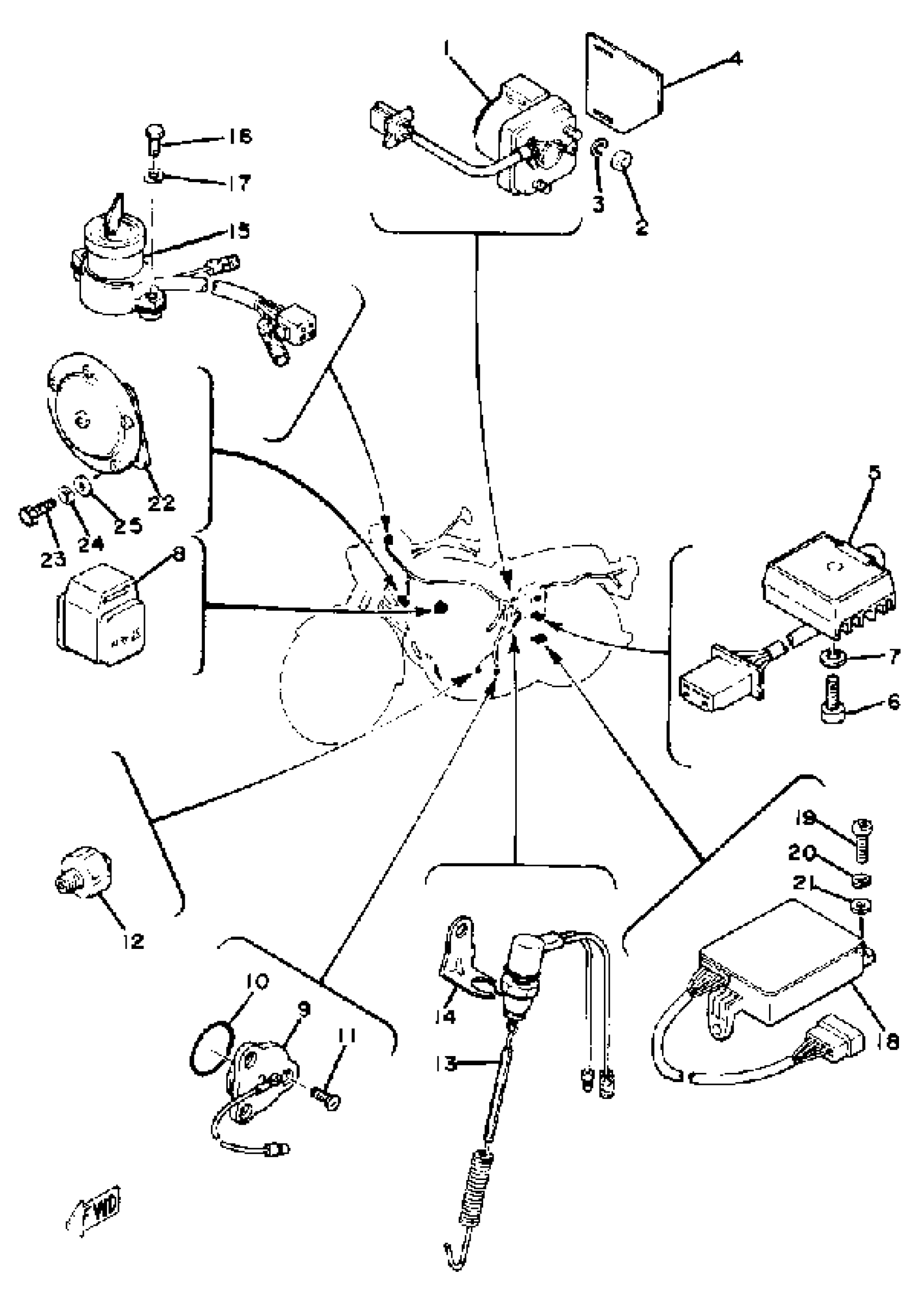

Yamaha XS400SG (XS400S) 1980 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

COVER, TERMINAL

(1L9-81916-00-00)

Unavailable

5

RECTIFIER ASSEMBLY

1L9-81970-60-00

Unavailable

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

9

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

10

O-RING (371)

93210-29196-00

$8.49

11

SCREW, FLAT

98707-05012-00

$1.71

12

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

13

STOP SWITCH ASSEMBLY

1L9-82530-02-00

Unavailable

14

STAY, STOP SWITCH

(1L9-82539-01-00)

Unavailable

15

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

IGNITOR UNIT ASSY 1

4R4-82305-10-00

Unavailable

19

SCREW PAN HEAD

98580-06020-00

$8.49

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

HORN

2L0-83371-20-00

Unavailable

23

BOLT (661)

97013-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable
