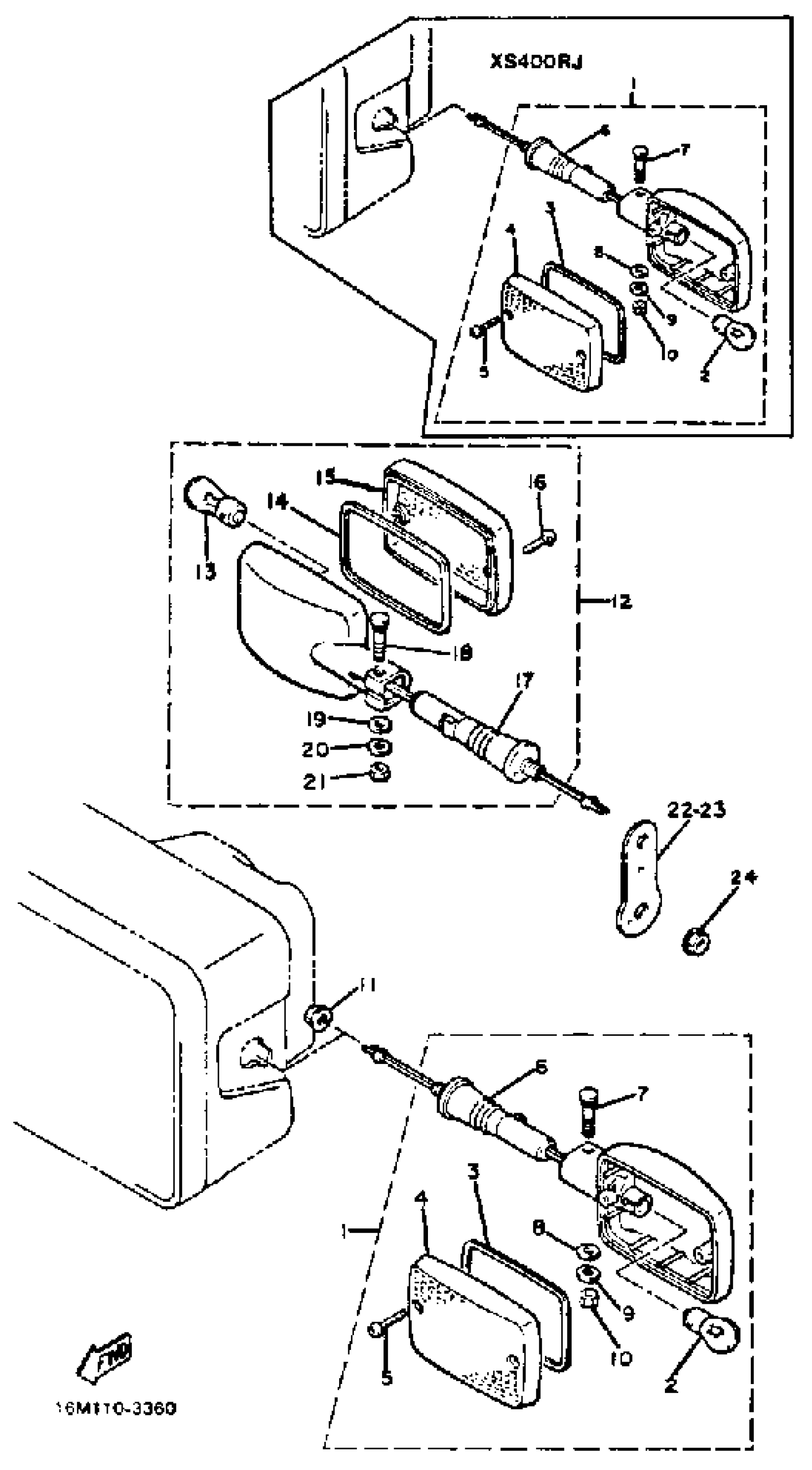

Yamaha XS400RJ (XS400R) 1982 TURNSIGNAL Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

16M-83310-70-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

. GASKET, FLASHER LENS

4G0-83313-00-00

Unavailable

4

. LENS, FLASHER

4G0-83312-00-00

Unavailable

5

SCREW,TAPPING

97701-40618-00

Unavailable

6

. STAY, FLASHER 1

16M-83318-00-00

Unavailable

7

BOLT, flasher 1

5G2-83317-00-00

Unavailable

8

WASHER(1RW)

92907-05600-00

$3.78

9

WASHER(3SX)

92907-05100-00

$8.49

10

NUT, HEXAGON

95317-05600-00

$2.34

11

NUT(3GG)

90179-12588-00

$7.49

12

R FLSHR LITE ASSEMBLY

16M-83330-70-00

Unavailable

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

. GASKET, FLASHER LENS

4G0-83313-00-00

Unavailable

15

. LENS, FLASHER

4G0-83312-00-00

Unavailable

16

SCREW,TAPPING

97701-40618-00

Unavailable

17

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

18

BOLT, flasher 1

5G2-83317-00-00

Unavailable

19

WASHER(1RW)

92907-05600-00

$3.78

20

WASHER(3SX)

92907-05100-00

$8.49

21

NUT, HEXAGON

95317-05600-00

$2.34

22

STAY, FLASHER

(16N-83368-00-00)

Unavailable

23

STAY, FLASHER

16N-83369-00-00

Unavailable

24

NUT(3GG)

90179-12588-00

$7.49
