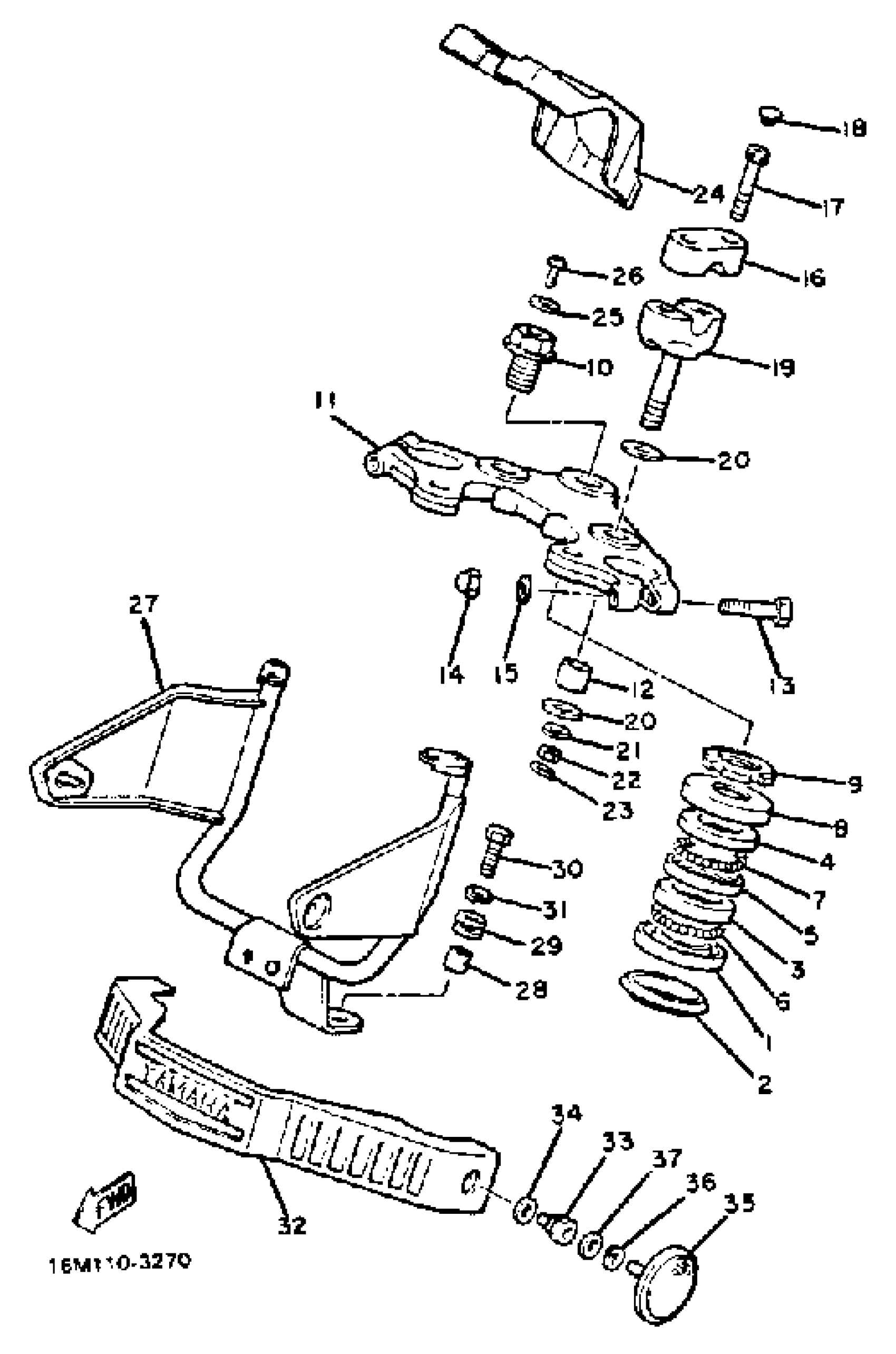

Yamaha XS400RJ (XS400R) 1982 STEERING Diagram
#
Description
Price
5
RACE,BALL 2
4FP-F3412-10-00
Unavailable
10
BOLT
90109-14602-00
Unavailable
11
CROWN, HANDLE
12R-23435-00-98
Unavailable
16
HOLDER, HANDLE UPPER
4H7-23441-01-98
Unavailable
17
BOLT, SOCKET
91317-08030-00
Unavailable
18
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
19
HOLDER, HANDLE LOWER
3Y6-23442-00-98
Unavailable
20
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
22
NUT (682)
95380-10700-00
Unavailable
23
CLIP 136253750000
90468-12006-00
Unavailable
24
COVER, UPPER
16M-26213-00-00
Unavailable
25
WASHER PLATE 248217570000
90201-06074-00
Unavailable
26
SCREW PAN HEAD
98580-06010-00
Unavailable
27
STAY, HEADLIGHT
16M-23174-00-98
Unavailable
28
COLLAR
90387-06158-00
Unavailable
29
GROMMET 839774310000
90480-14023-00
Unavailable
30
BOLT, HEXAGON
97017-06025-00
Unavailable
31
WASHER, SPRING
92907-06100-00
Unavailable
32
COVER, OUTER 1
16M-23122-01-00
Unavailable
33
BOLT
90109-06583-00
Unavailable
34
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
35
REFLECTOR, FRONT 1
355-85111-01-00
Unavailable
36
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
37
. WASHER, PLAIN
92990-05200-00
Unavailable
