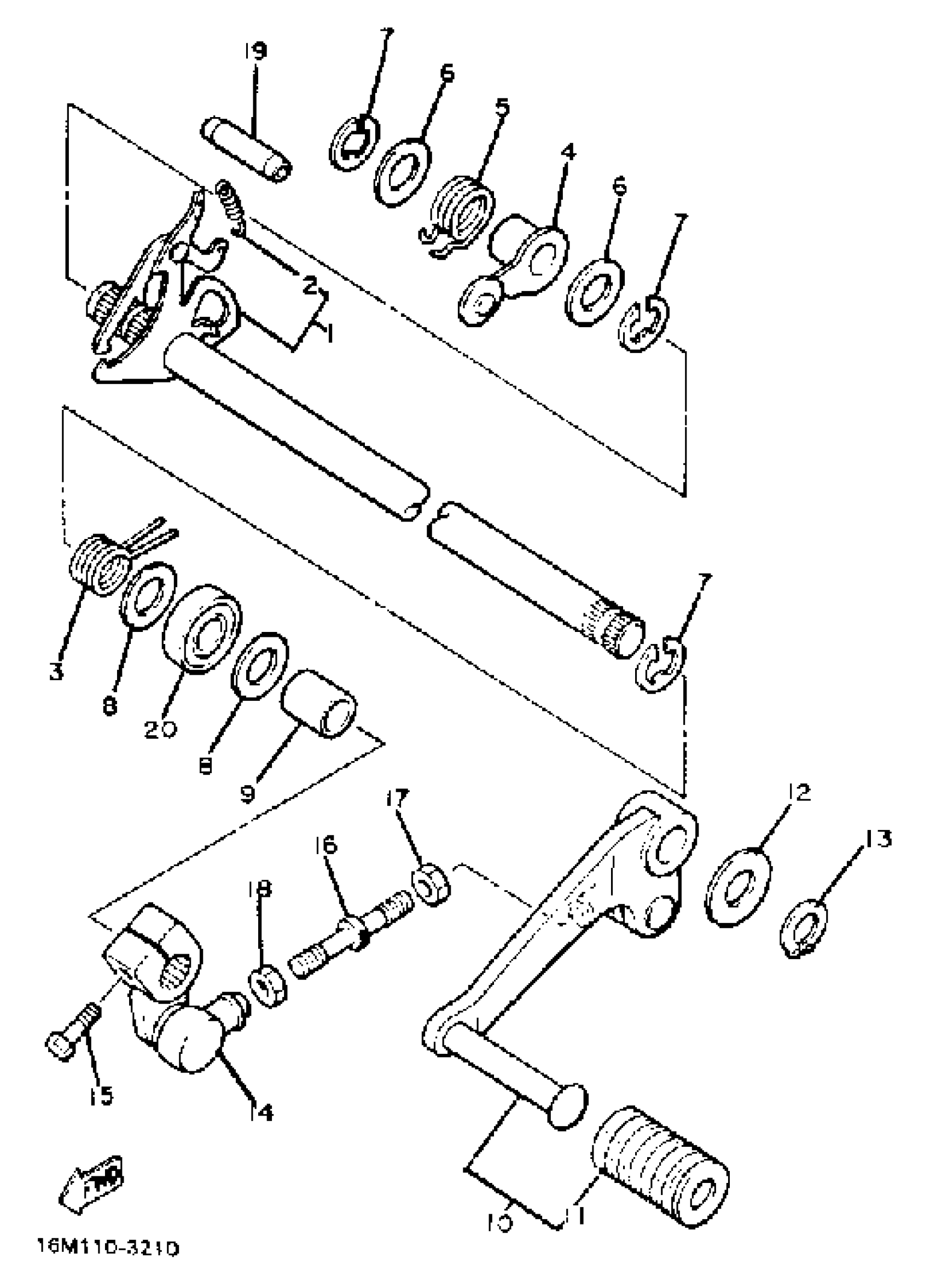

Yamaha XS400RJ (XS400R) 1982 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT LEVER ASY

12R-18120-01-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

SPRING, TORSION

90508-29547-00

Unavailable

4

STOPPER LEVER ASSEMBLY

(12R-18140-01-00)

Unavailable

5

SPRING, TORSION

(90508-29546-00)

Unavailable

6

WASHER

90201-12588-00

$7.49

7

CIRCLIP

99006-10600-00

$9.49

8

WASHER

90201-12588-00

$7.49

9

COLLAR (4G0)

90387-125A8-00

$3.61

10

SHIFT PEDAL ASSEMBLY

16M-18110-00-00

Unavailable

11

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

12

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

13

UNAVAILABLE IN PRICE BOOK (93410-12003)

99001-12400-00

Unavailable

14

ARM, SHIFT

2GH-18112-01-00

Unavailable

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

ROD, SHIFT

2XK-18115-00-00

Unavailable

17

NUT (2H9)

90170-06228-00

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

19

PIN, DOWEL (4H7)

93608-50158-00

Unavailable

20

SEAL, OIL (30X)

93102-12321-00

Unavailable
