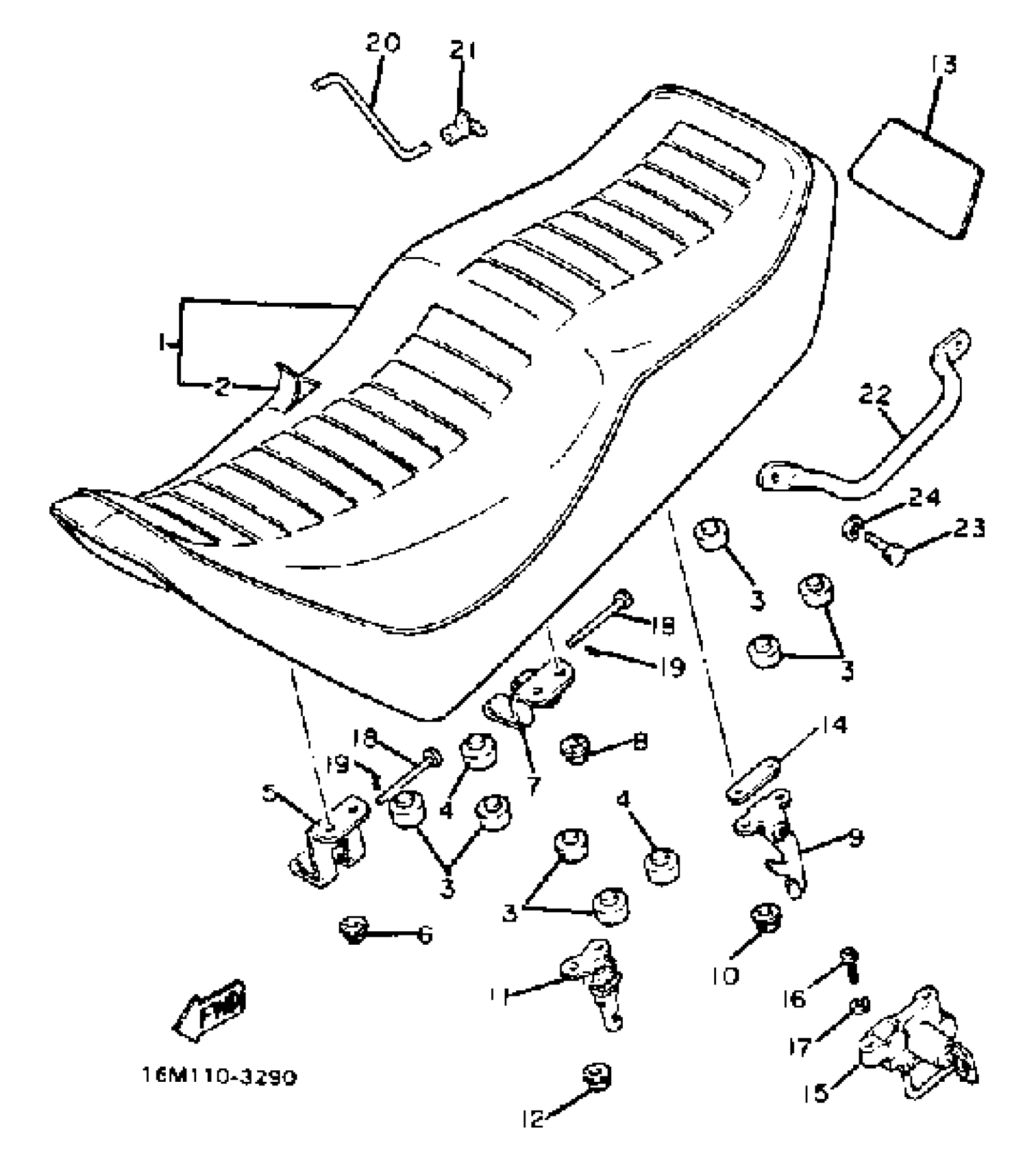

Yamaha XS400RJ (XS400R) 1982 SEAT Diagram
#
Description
Price
1
DOUBLE SEAT ASSEMBLY (16M-W2472-00)
17E-W2472-01-00
Unavailable
2
. COVER, DOUBLE SEAT (16M-24731-00)
16M-24731-01-00
Unavailable
3
PAD, SEAT
116-24741-00-00
Unavailable
5
HINGE, SEAT
(16M-24726-00-00)
Unavailable
7
HINGE, SEAT
(16M-24769-00-00)
Unavailable
9
SEAT LEVER ASS''Y
4K0-24760-00-00
Unavailable
11
BRACKET, SEAT
4K0-24728-00-00
Unavailable
13
STOPPER, CUSHION
(16M-24714-00-00)
Unavailable
14
WASHER, SEAT
(16M-24746-00-00)
Unavailable
15
SEAT LOCK ASS''Y (11H-24705-00)
4K0-24705-00-00
Unavailable
16
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
PIN, CLEVIS
91701-05055-00
Unavailable
19
CLIP (156-83525-00)
90468-10050-00
Unavailable
20
STOPPER
4K0-24768-01-00
Unavailable
21
BRACKET, SEAT
1J7-24718-00-00
Unavailable
22
HANDLE, STANDING
16M-21165-00-00
Unavailable
23
BOLT, HEXAGON
97017-08016-00
Unavailable
24
WASHER(JN5)
92907-08100-00
Unavailable
