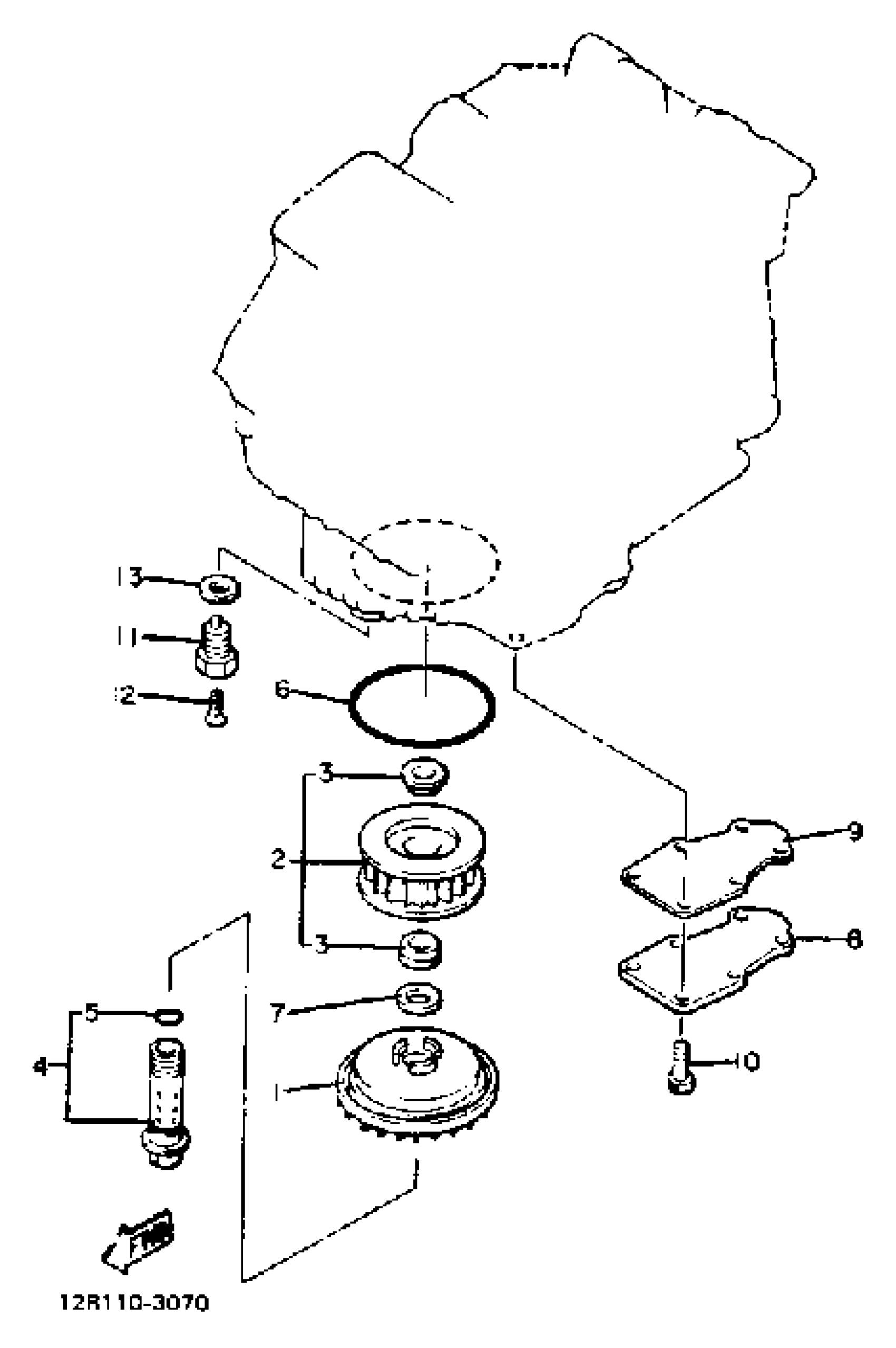

Yamaha XS400RJ (XS400R) 1982 OIL FILTER Diagram

COVER, OIL ELEMENT

12R-13447-00-00

Unavailable

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

GROMMET (1L9)

90480-23193-00

Unavailable

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

O-RING (26H)

93210-16629-00

$7.49

O-RING(1KF)

93210-87723-00

$13.49

WASHER, PLATE (1L9)

90201-21608-00

$8.49

COVER, STRAINER

12R-13417-01-00

Unavailable

GASKET,STRNR COVER

12R-13414-10-00

Unavailable

BOLT,SOCKET

91317-06014-00

$9.49

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

SCREW, BIND(2TV)

98980-06008-00

$3.19

GASKET

214-11198-01-00

$3.17
