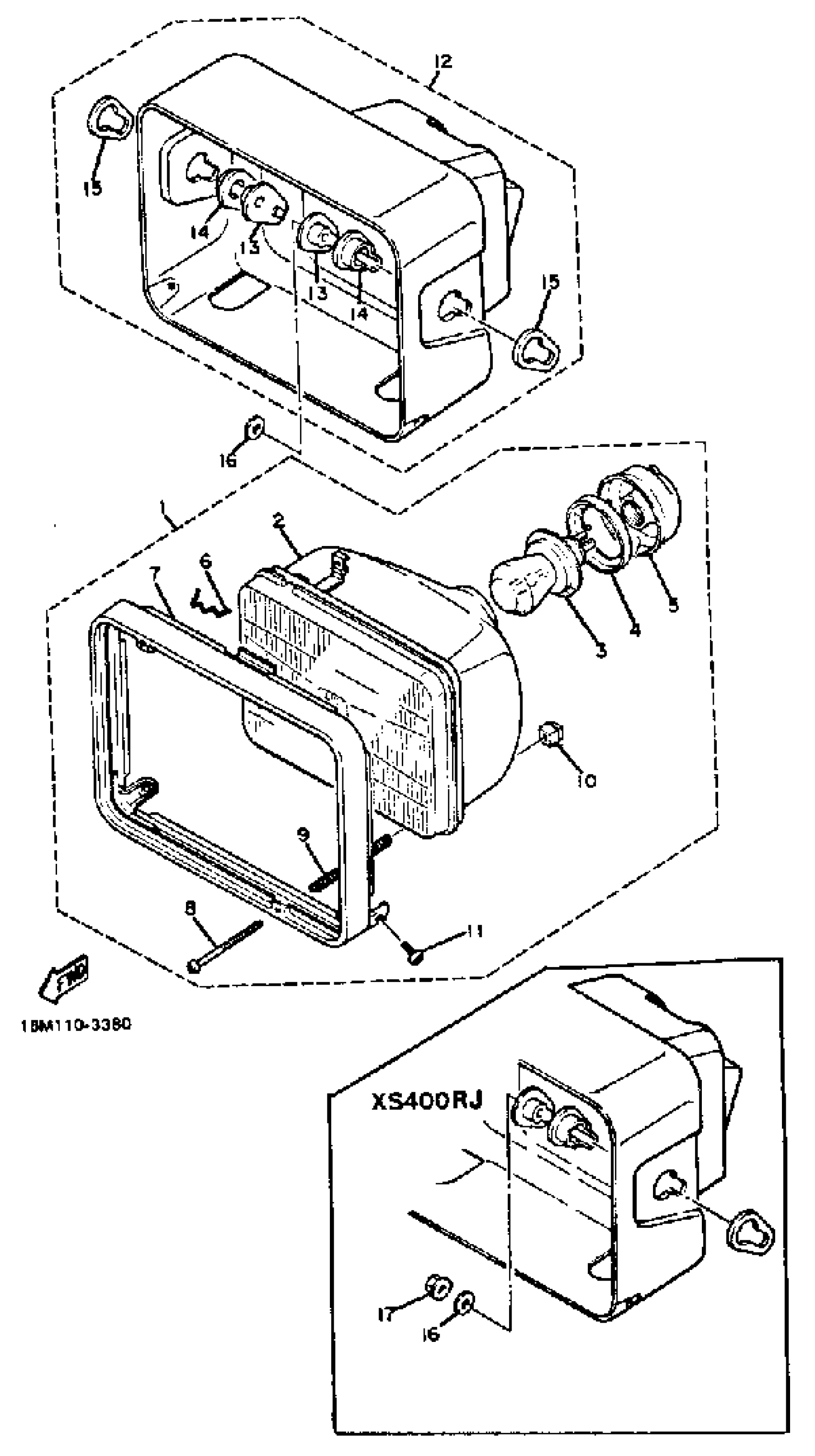

Yamaha XS400RJ (XS400R) 1982 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

10L-84303-A0-00

Unavailable

2

. LENS, HEADLIGHT

11H-84321-60-00

Unavailable

3

BULB, HEADLIGHT

46B-84314-00-00

Unavailable

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$30.99

6

SET SPRING

55X-84124-00-00

$11.99

7

. RIM, HEADLIGHT

11H-84315-00-00

Unavailable

8

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

9

SPRING, ADJUST

341-84332-60-00

$9.99

10

NUT, ADJUST

198-84334-60-00

$7.99

11

SCREW, PAN

98517-05012-00

$4.73

12

BODY ASSEMBLY

16M-84330-00-00

Unavailable

13

COLLAR 1

(16M-84388-00-00)

Unavailable

14

DAMPER, HEADLIGHT 1

(16M-84366-00-00)

Unavailable

15

DAMPER 3

(16M-84368-00-00)

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

17

NUT(3GG)

90179-12588-00

Unavailable
