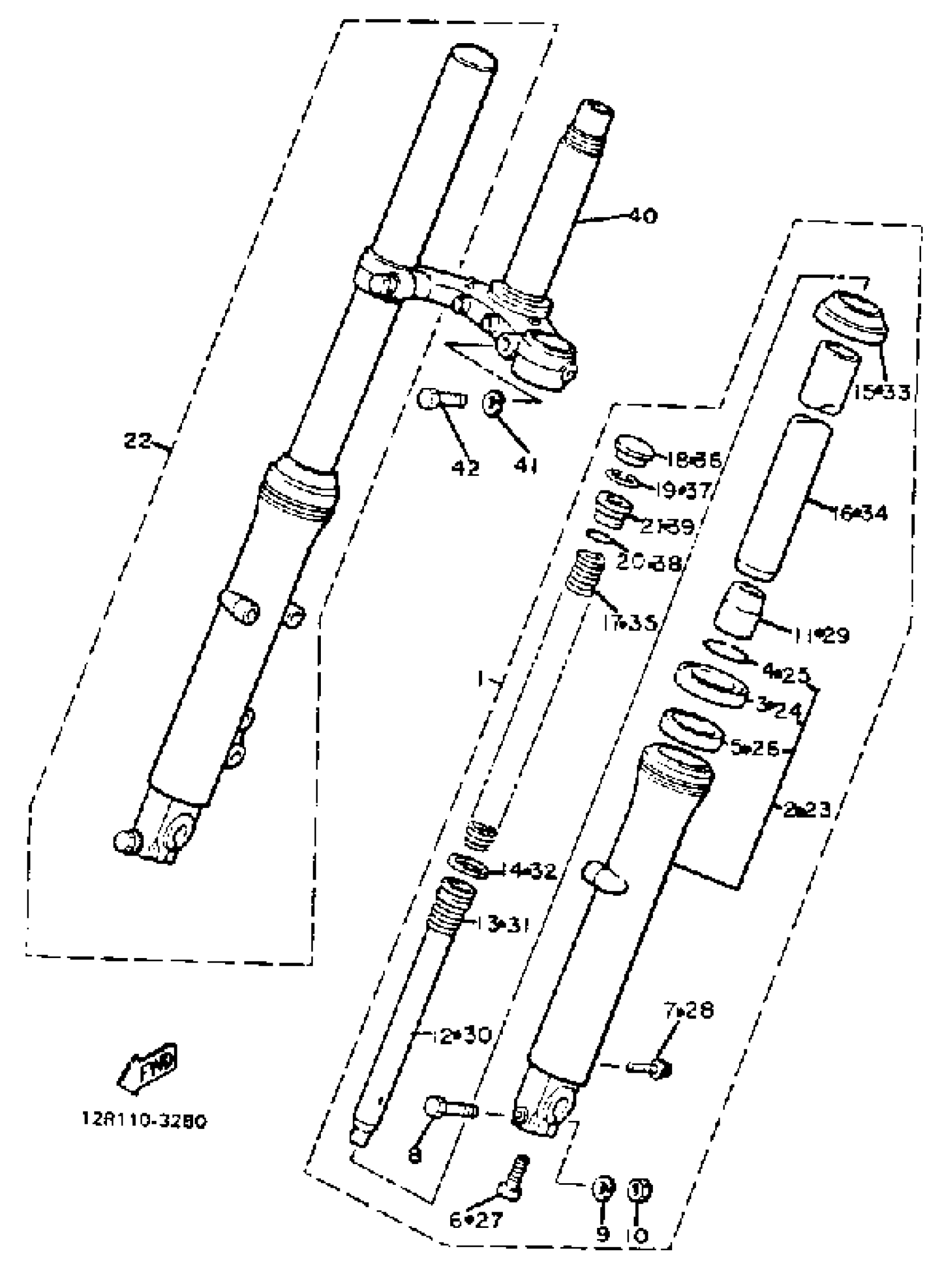

Yamaha XS400RJ (XS400R) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (L.H.)

16M-23102-00-00

Unavailable

2

. FORK UNIT ASSEMBLY 1 (12R-23130-00)

51R-23126-00-38

Unavailable

3

OIL SEAL

1UA-23145-00-00

Unavailable

4

CLIP, OIL SEAL

34X-23156-00-00

$8.99

5

METAL, SLIDE 2

12R-23135-00-00

$53.99

6

BOLT

3M7-23181-00-00

$8.99

7

PLUG, DRAIN

2A6-23119-00-00

$8.99

8

BOLT, HEXAGON

97013-08055-00

$2.55

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

NUT(6L2)

95333-08600-00

$2.49

11

. SPACER, OIL LOCK

10V-23166-00-00

Unavailable

12

PISTON, FRONT FORK

(16M-23171-00-00)

Unavailable

13

. SPRING, REBOUND

10M-23151-00-00

Unavailable

14

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

Unavailable

15

SEAL, DUST

1UA-23144-00-00

Unavailable

16

. INNER TUBE 1

12R-23110-00-00

Unavailable

17

SPRING, FRONT FORK

(12E-23141-00-00)

Unavailable

18

. CAP, FRONT FORK

1J3-23168-00-00

Unavailable

19

. CIRCLIP

1J3-23183-01-00

Unavailable

20

O-R1NG(N04)

93210-221A0-00

Unavailable

21

. BOLT, CAP

1T4-23111-00-00

Unavailable

22

FRONT FORK ASSEMBLY R (R.H.)

16M-23103-00-00

Unavailable

23

. FORK UNIT ASSEMBLY 2 (12R-23140-00)

51R-23136-00-38

Unavailable

24

OIL SEAL

1UA-23145-00-00

Unavailable

25

CLIP, OIL SEAL

34X-23156-00-00

$8.99

26

METAL, SLIDE 2

12R-23135-00-00

$53.99

27

BOLT

3M7-23181-00-00

$8.99

28

PLUG, DRAIN

2A6-23119-00-00

$8.99

29

. SPACER, OIL LOCK

10V-23166-00-00

Unavailable

30

PISTON, FRONT FORK

(16M-23171-00-00)

Unavailable

31

. SPRING, REBOUND

10M-23151-00-00

Unavailable

32

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

Unavailable

33

SEAL, DUST

1UA-23144-00-00

Unavailable

34

. INNER TUBE 1

12R-23110-00-00

Unavailable

35

SPRING, FRONT FORK

(12E-23141-00-00)

Unavailable

36

. CAP, FRONT FORK

1J3-23168-00-00

Unavailable

37

. CIRCLIP

1J3-23183-01-00

Unavailable

38

O-R1NG(N04)

93210-221A0-00

Unavailable

39

. BOLT, CAP

1T4-23111-00-00

Unavailable

40

UNDER BRACKET (12R-23340-01-90)

12E-23340-30-00

Unavailable

41

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

42

BOLT

7JY-23471-00-00

Unavailable
