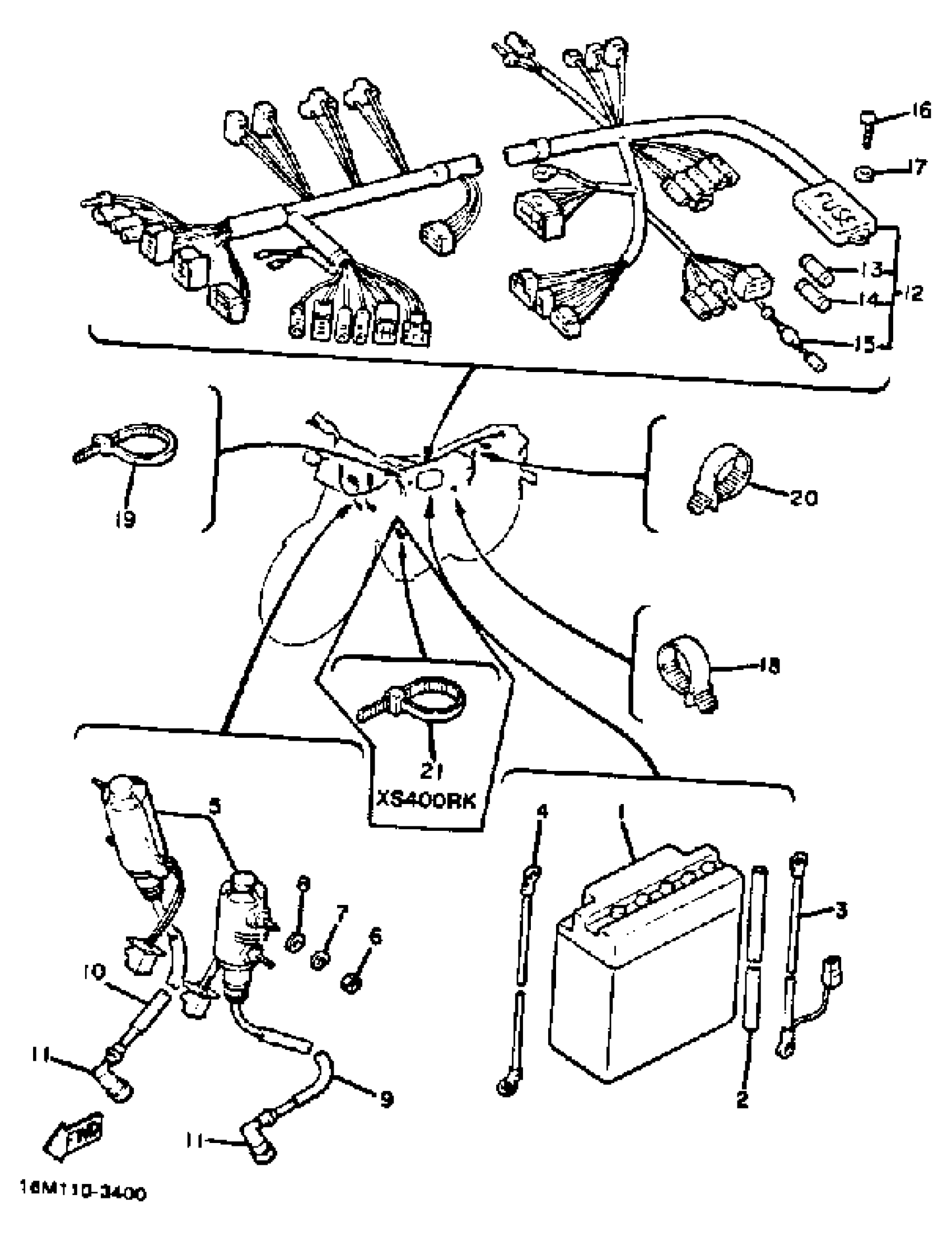

Yamaha XS400RJ (XS400R) 1982 ELECTRICAL 1 Diagram

#

Description
Price

1

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

2

HOSE

(90445-08660-00)

Unavailable

3

WIRE, PLUS LEAD (15R-82115-00)

12R-82115-00-00

Unavailable

4

WIRE, MINUS LEAD

42X-82116-00-00

Unavailable

5

IGNITION COIL ASS''Y

3Y6-82310-60-00

Unavailable

6

NUT(6TA)

95317-06600-00

$3.55

7

WASHER, SPRING

92907-06100-00

$4.25

8

WASHER(6TA)

92907-06200-00

$8.49

9

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

10

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

11

PLUG CAP ASSY

3NS-82370-00-00

$37.99

12

WIRE HARNESS ASSEMBLY

12R-82590-50-00

Unavailable

13

FUSE

1A0-82161-00-00

$7.99

14

FUSE

1A0-82151-00-00

$16.49

15

RECTIFIER 2

3H5-81980-00-00

$19.49

16

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable

21

BAND

1UA-82591-00-00

Unavailable
