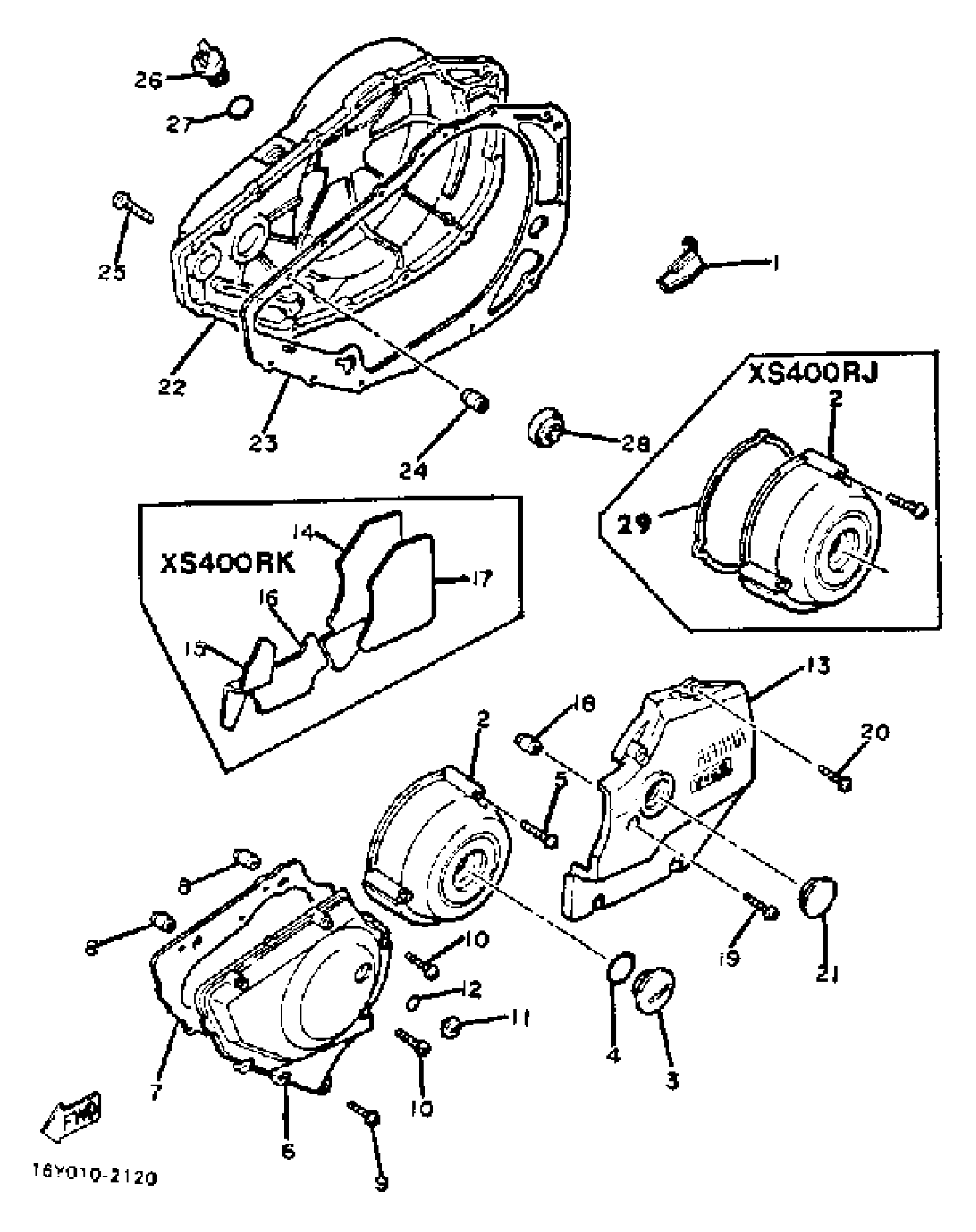

Yamaha XS400RJ (XS400R) 1982 CRANKCASE COVER Diagram

#

Description
Price

1

SCRAPER, OIL

(12R-15437-00-00)

Unavailable

2

COVER, GENERATOR

12R-15415-01-00

Unavailable

3

PLUG, STRAIGHT SCREW

90340-32088-00

Unavailable

4

O-RING (341)

93210-32172-00

$7.49

5

SCREW PAN HEAD

98580-06570-00

$18.99

6

COVER, CRANKCASE L

12R-15411-00-00

Unavailable

7

GASKET, CRCS COVER

12R-15451-10-00

Unavailable

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

11

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

12

O-RING (2H9)

93210-14369-00

$7.49

13

CRCS COVER ASSEMBLY R

(16M-15420-00-00)

Unavailable

14

DAMPER, ENG MOUNT 1

(12R-15316-01-00)

Unavailable

15

DAMPER, ENG MOUNT 2

(12R-15326-01-00)

Unavailable

16

DAMPER, ENG MOUNT 3

(12R-15336-01-00)

Unavailable

17

COLLAR

(12R-15337-01-00)

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

$2.55

19

SCREW PAN HEAD

98580-06565-00

Unavailable

20

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

21

COVER, CAP

1L9-15417-00-00

Unavailable

22

COVER, CRANKCASE 3

12R-15431-00-00

Unavailable

23

GASKET, CRCS CVR 3

12R-15462-10-00

Unavailable

24

PIN, DOWEL(3VD)

99530-10114-00

$2.55

25

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

26

PLUG, OIL

3Y1-15363-10-00

Unavailable

27

O-RING (646)

93210-19123-00

Unavailable

28

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

29

GASKET 1

12R-15455-00-00

Unavailable
