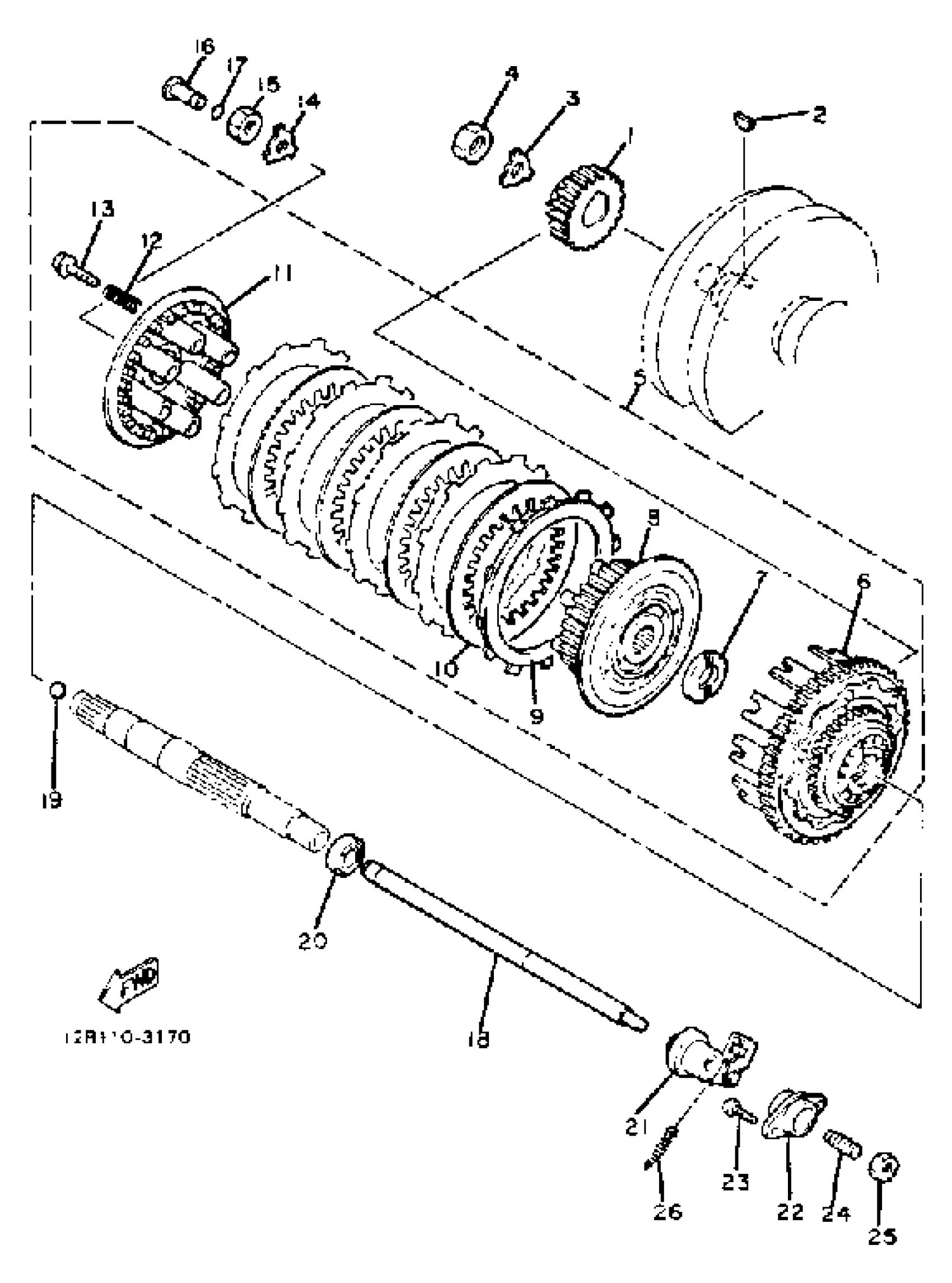

Yamaha XS400RJ (XS400R) 1982 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVE

12R-16111-00-00

Unavailable

2

KEY, WOODRUFF

90280-05049-00

Unavailable

3

WASHER, LOCK (34L)

90215-20231-00

$4.41

4

NUT (34L)

90170-20327-00

$18.99

5

UNAVAILABLE IN PRICE BOOK

(12R-16300-00-00)

Unavailable

6

. PRI DRVN GEAR

12R-16150-00-00

Unavailable

7

. PLATE, THRUST 1

3Y1-16154-00-00

Unavailable

8

. BOSS, CLUTCH

12R-16371-00-00

Unavailable

9

PLATE, FRICTION (447)

341-16321-13-00

$23.99

10

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

11

. PLATE, PRESSURE 1

12R-16351-00-00

Unavailable

12

SPRING,COMPRESSION 2561633300

90501-26148-00

$4.99

13

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

14

WASHER, LOCK (34L)

90215-20231-00

$4.41

15

NUT (34L)

90170-20327-00

$18.99

16

ROD, PUSH 1

12R-16356-00-00

Unavailable

17

O-RING (26H)

93210-06632-00

Unavailable

18

ROD, PUSH 2

12R-16357-00-00

Unavailable

19

BALL (498)

93511-32027-00

Unavailable

20

OIL SEAL(12E)

93109-08061-00

Unavailable

21

PUSH LEVER ASSEMBLY

12R-16340-00-00

Unavailable

22

HOUSING, PUSH SCREW

371-16396-00-00

Unavailable

23

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

24

BOLT SET 256163430100

90113-08021-00

Unavailable

25

NUT

90179-08179-00

Unavailable

26

SPRING TENSION 360163450000

90506-10069-00

Unavailable
