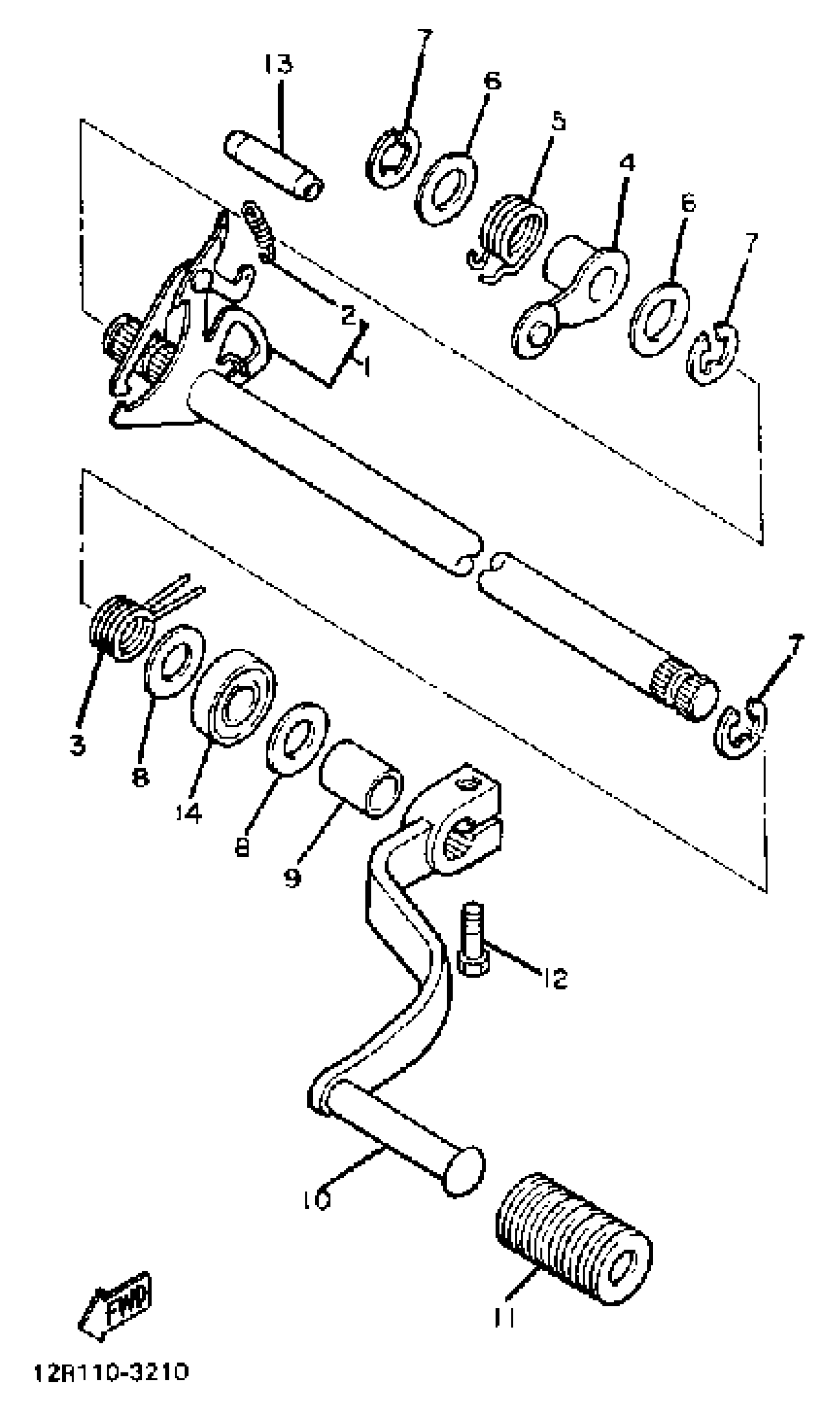

Yamaha XS400K (XS400) 1983 SHIFT SHAFT PEDAL Diagram

#

Description
Price

1

SHIFT LEVER ASY

12R-18120-01-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

SPRING, TORSION

90508-29547-00

Unavailable

4

STOPPER LEVER ASSEMBLY

(12R-18140-01-00)

Unavailable

5

UNAVAILABLE IN PRICE BOOK

90508-19546-00

Unavailable

6

WASHER

90201-12588-00

$7.49

7

CIRCLIP

99006-10600-00

$9.49

8

WASHER

90201-12588-00

$7.49

9

COLLAR (4G0)

90387-125A8-00

$3.61

10

SHIFT PEDAL ASSEMBLY

22U-18110-00-00

Unavailable

11

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

PIN, DOWEL (4H7)

93608-50158-00

$8.49

14

SEAL, OIL (30X)

93102-12321-00

$12.49
