CARBURETOR

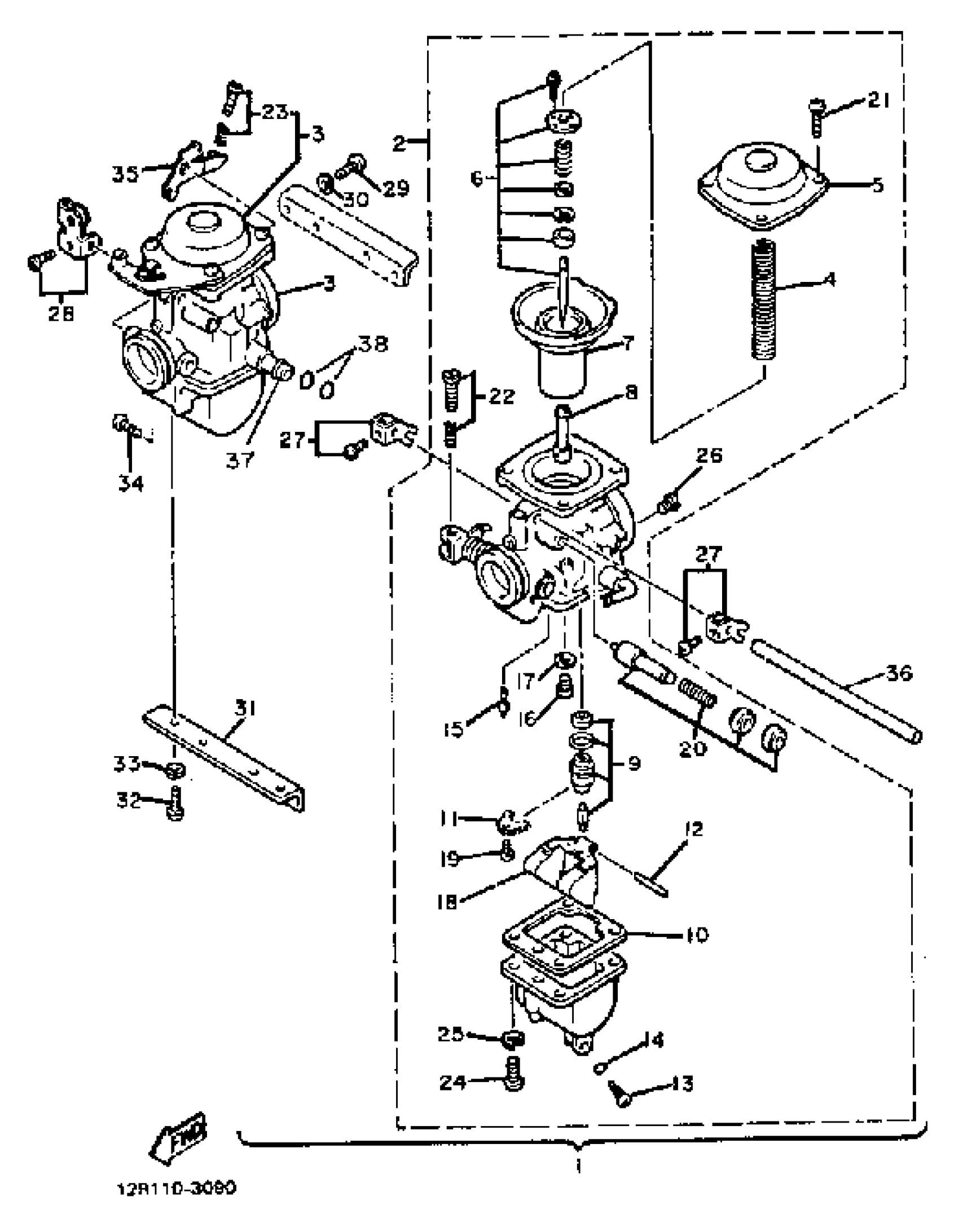

Yamaha XS400K (XS400) 1983 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(12R-14900-00-00)
Unavailable
2
. CARBURETOR ASSEMBLY 1
12R-14901-00-00
Unavailable
3
. CARBURETOR ASSEMBLY 2
12R-14902-00-00
Unavailable
4
.. SPRING, DIAPHRAGM
3G1-14933-00-00
Unavailable
5
.. COVER, DIAPHRAGM
12R-14958-00-00
Unavailable
6
.. NEEDLE SET
12R-1490J-00-00
Unavailable
7
.. DIAPHRAGM ASY
3F7-14940-01-00
Unavailable
8
.. NOZZLE, MAIN
12R-14941-08-00
Unavailable
11
. PLATE
2H0-14146-00-00
Unavailable
16
JET, MAIN (#115)
620-14231-23-A0
Unavailable
16
JET, MAIN (#125)
620-14231-25-A0
Unavailable
17
WASHER,MAIN JET
137-14153-00-00
Unavailable
18
FLOAT
3H5-14985-00-00
Unavailable
19
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
20
.. STARTER SET
12R-1410A-00-00
Unavailable
21
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
22
THROTTLE SCREW SET
(12R-14103-00-00)
Unavailable
23
. STOP SCREW SET
12R-1490K-00-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
JET, MAIN (#170)
3G2-14231-34-00
Unavailable
27
STARTER LEVR SET 2
(12R-1490M-00-00)
Unavailable
28
STARTER LEVR SET 2
(16M-1490M-00-00)
Unavailable
29
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
30
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
31
PLATE
(12R-14146-00-00)
Unavailable
32
SCREW, PAN
98507-06014-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
SCREW, CYLINDER HEAD
(98302-05006-00)
Unavailable
35
LEVER, THROTTLE 2
(12R-14964-00-00)
Unavailable
36
SHAFT, STARTER LVR
(12R-14977-00-00)
Unavailable
37
NIPPLE
(12R-14251-00-00)
Unavailable
38
O-RING
36Y-14147-00-00
Unavailable
