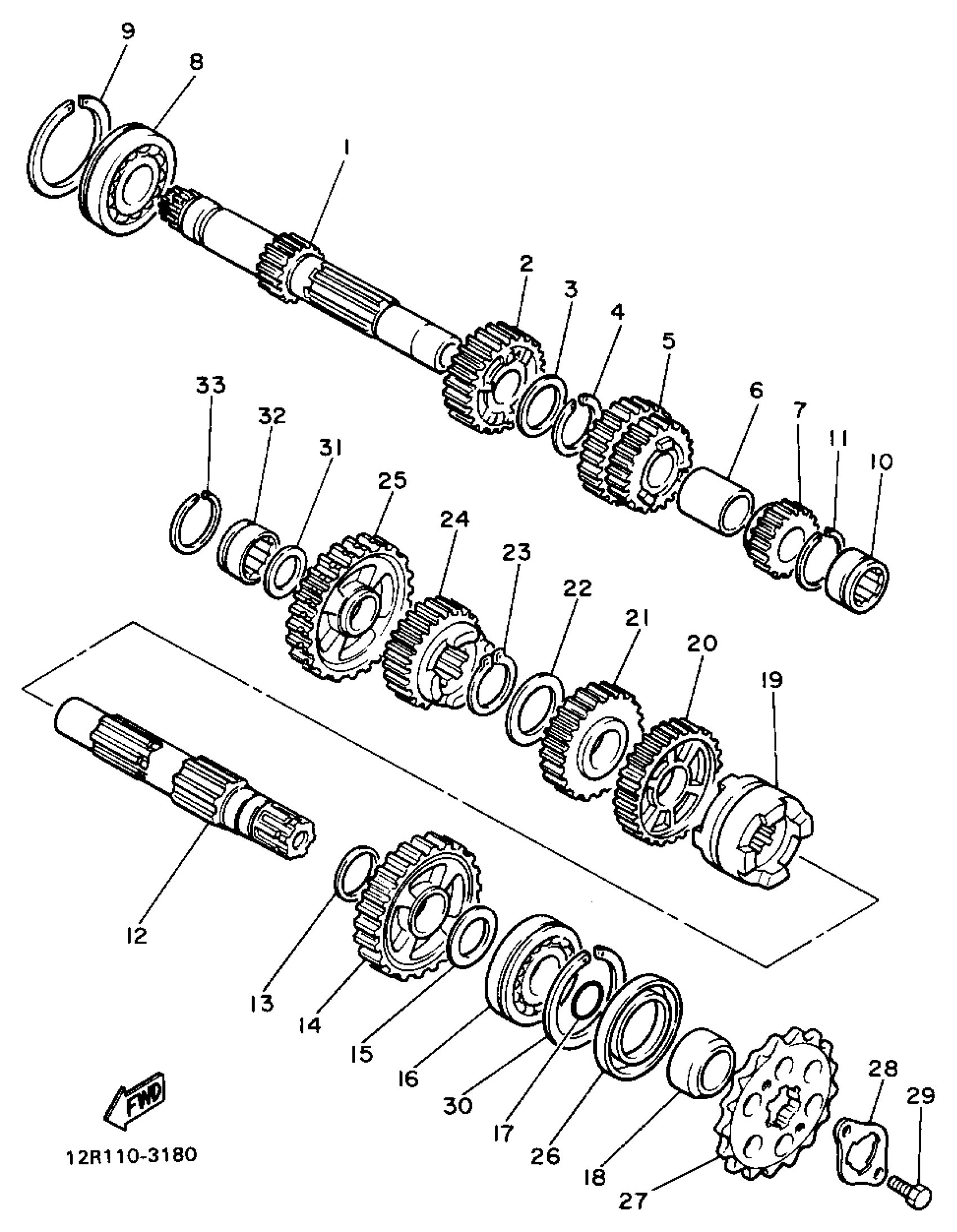

Yamaha XS400J (XS400) 1982 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

12R-17410-00-00

Unavailable

2

GEAR, 5TH PINION (28T) 001

4G0-17151-00-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION (22/25T)

4G0-17131-00-00

Unavailable

6

COLLAR

(90387-206F1-00)

Unavailable

7

GEAR, 2ND PINION (19T)

12R-17121-00-00

Unavailable

8

BRG,R-B 6305 62MM 225G NK

93306-30504-00

$71.99

9

CIRCLIP

278-17424-01-00

$21.99

10

BEARING, CYL.#11

93311-42045-00

Unavailable

11

CIR CLIP

278-17425-00-00

$8.99

12

DRIVE AXLE ASSEMBLY

(12R-17402-00-00)

Unavailable

13

. WASHER, PLATE

90201-273A9-00

Unavailable

14

GEAR, 2ND WHEEL (38T)

12R-17221-00-00

Unavailable

15

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

16

BEARING(1WG)

93306-30550-00

Unavailable

17

O-RING

93210-22298-00

Unavailable

18

COLLAR

90387-256F2-00

Unavailable

19

CLUTCH, DOG

(12R-17285-00-00)

Unavailable

20

GEAR, 3RD WHEEL

4G0-17231-01-00

Unavailable

21

GEAR, 4TH WHEEL

4G0-17241-01-00

Unavailable

22

WASHER (3J3)

90209-22191-00

$7.49

23

CIRCLIP (4L0)

93440-25084-00

$5.60

24

GEAR, 5TH WHEEL

4G0-17251-00-00

Unavailable

25

GEAR, 1ST WHEEL (38T)

12R-17211-00-00

Unavailable

26

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

27

SPROCKET, DRIVE 16T

93854-16109-00

Unavailable

28

HOLDER, SPROCKET

3Y1-17456-00-00

Unavailable

29

BOLT (661)

97013-06012-00

Unavailable

30

CIRCLIP

278-17424-01-00

$21.99

31

WASHER PLATE 328171160000

90201-20276-00

Unavailable

32

BEARING, CYL.#11

93311-42045-00

Unavailable

33

UNAVAILABLE IN PRICE BOOK

278-17425-01-00

Unavailable
