Description

Price

1

GEAR, IDLER 1

1AE-15512-00-00

Unavailable

2

SHAFT 1

12R-15521-00-00

Unavailable

3

. STARTER CLUTCH OUTER ASSEMBLY

3GM-15580-00-00

Unavailable

4

PIN,DOWEL(341)

93615-12088-00

$7.49

5

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

6

SPRING, COMPRESSION (4G0)

90501-04623-00

$7.49

7

GEAR, IDLER 2

12R-15517-00-00

Unavailable

8

WHEEL, STARTER

12R-15524-00-00

Unavailable

9

ABSORBER 1

4H7-16155-01-00

$5.49

10

SPROCKET, STARTER 2

12R-15519-00-00

Unavailable

11

BOLT, SOCKET

91317-08014-00

$8.49

12

COLLAR

90387-202A7-00

Unavailable

13

SHAFT 2

12R-15522-00-00

Unavailable

14

PLUG (4H7)

90331-12028-00

Unavailable

15

BEARING (5Y1)

93306-00426-00

$42.99

16

BEARING (3Y1)

93306-20541-00

Unavailable

17

OIL SEAL (4H7)

93102-25218-00

Unavailable

18

CHAIN, PRIMARY

12R-11456-01-00

Unavailable

19

GUIDE, UPPER 001

12E-11474-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

Unavailable

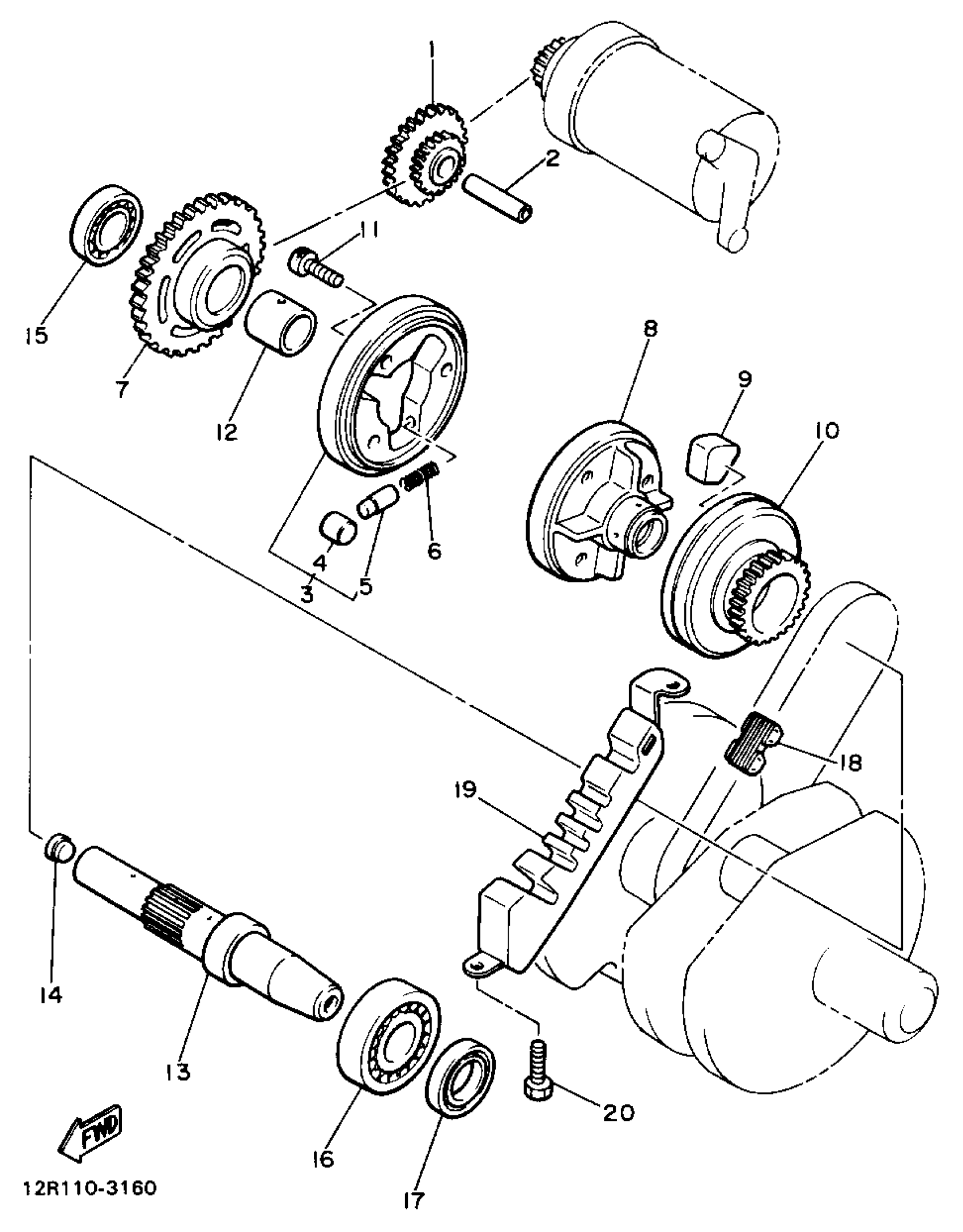

Yamaha XS400J (XS400) 1982 STARTER CLUTCH Diagram

GEAR, IDLER 1

SHAFT 1

. STARTER CLUTCH OUTER ASSEMBLY

PIN,DOWEL(341)

CAP, STARTER CLUTCH

SPRING, COMPRESSION (4G0)

GEAR, IDLER 2

WHEEL, STARTER

ABSORBER 1

SPROCKET, STARTER 2

BOLT, SOCKET

COLLAR

SHAFT 2

PLUG (4H7)

BEARING (5Y1)

BEARING (3Y1)

OIL SEAL (4H7)

CHAIN, PRIMARY

GUIDE, UPPER 001

BOLT, HEXAGON SOCKET HEAD
