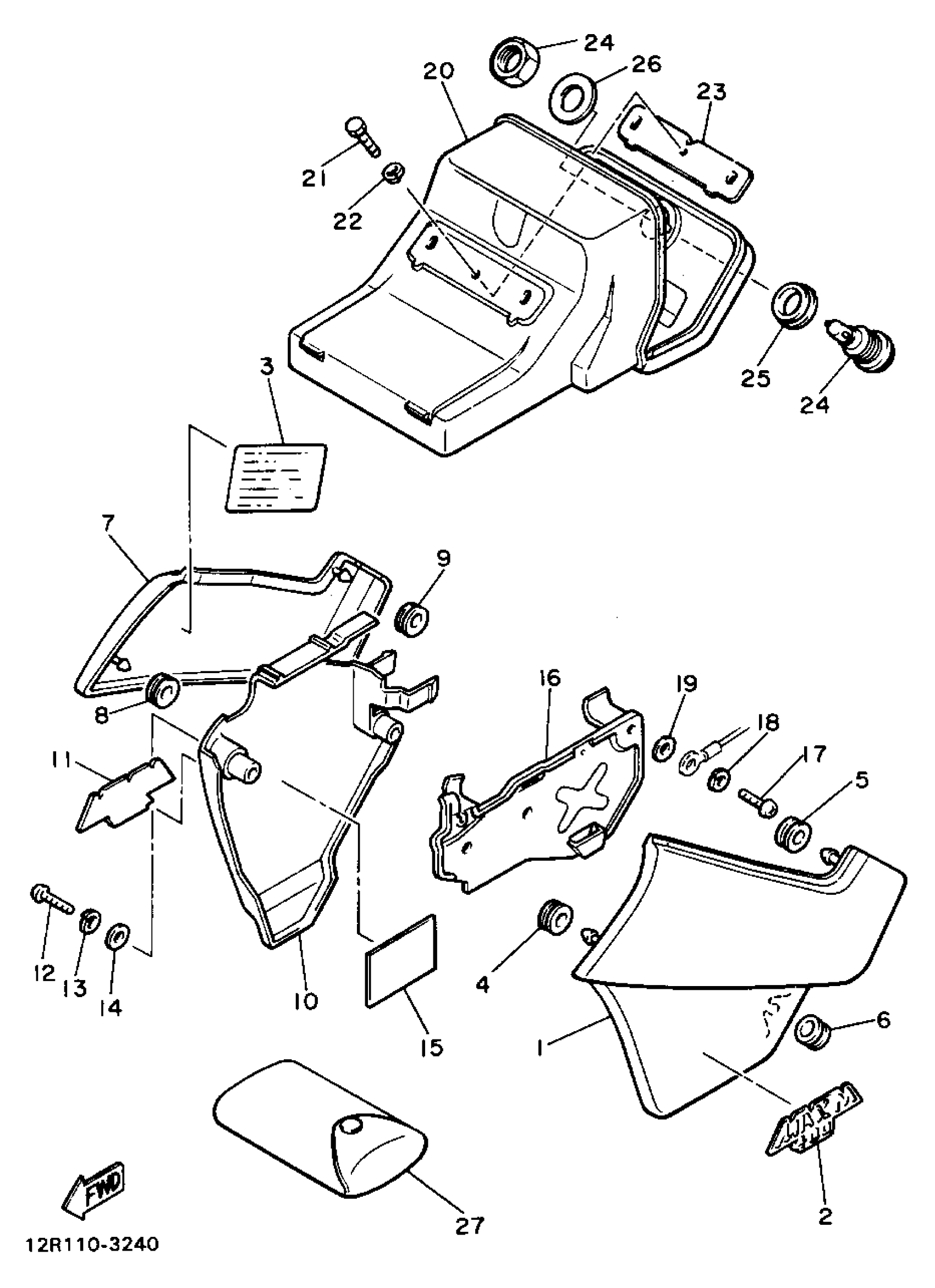

Yamaha XS400J (XS400) 1982 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1 (NEW WHITE)

12R-21711-00-6G

Unavailable

1

COVER, SIDE 1

12R-21711-00-H7

Unavailable

2

EMBLEM 1

12R-21781-00-00

Unavailable

3

PLATE, SPEC

(12R-21683-00-00)

Unavailable

4

GROMMET

90480-13014-00

$8.49

5

GROMMET(34L)

90480-01385-00

$9.49

6

GROMMET (5G2)

90480-12296-00

$7.49

7

COVER, SIDE 2 (NEW WHITE)

12R-21721-00-6G

Unavailable

7

COVER, SIDE 2

12R-21721-00-H7

Unavailable

8

GROMMET

90480-13014-00

$8.49

9

GROMMET(34L)

90480-01385-00

$9.49

10

LID

12R-28185-01-00

Unavailable

11

EMBLEM 2

12R-21782-00-00

Unavailable

12

SCREW, PAN

98507-06035-00

$8.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

15

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

16

PLATE, BRIDGE

12R-21243-01-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06020-00

Unavailable

20

BOX CMPLT

12R-2160A-00-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, SPECIAL 1

(12R-21615-01-00)

Unavailable

24

SIDE COVER LOCK ASSY

5A8-21708-00-00

Unavailable

25

GROMMET (1E6)

90480-24186-00

Unavailable

26

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

27

TOOL KIT

1AA-W2810-00-00

Unavailable
