Description

Price

1

SHIFT LEVER ASY

12R-18120-01-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

SPRING, TORSION

90508-29547-00

Unavailable

4

STOPPER LEVER ASSEMBLY

(12R-18140-01-00)

Unavailable

5

SPRING, TORSION

(90508-29546-00)

Unavailable

6

WASHER

90201-12588-00

$7.49

7

CIRCLIP

99006-10600-00

$9.49

8

WASHER

90201-12588-00

$7.49

9

COLLAR (4G0)

90387-125A8-00

$3.61

10

SHIFT PEDAL ASSEMBLY

22U-18110-00-00

Unavailable

11

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

PIN, DOWEL (4H7)

93608-50158-00

$8.49

14

SEAL, OIL (30X)

93102-12321-00

$12.49

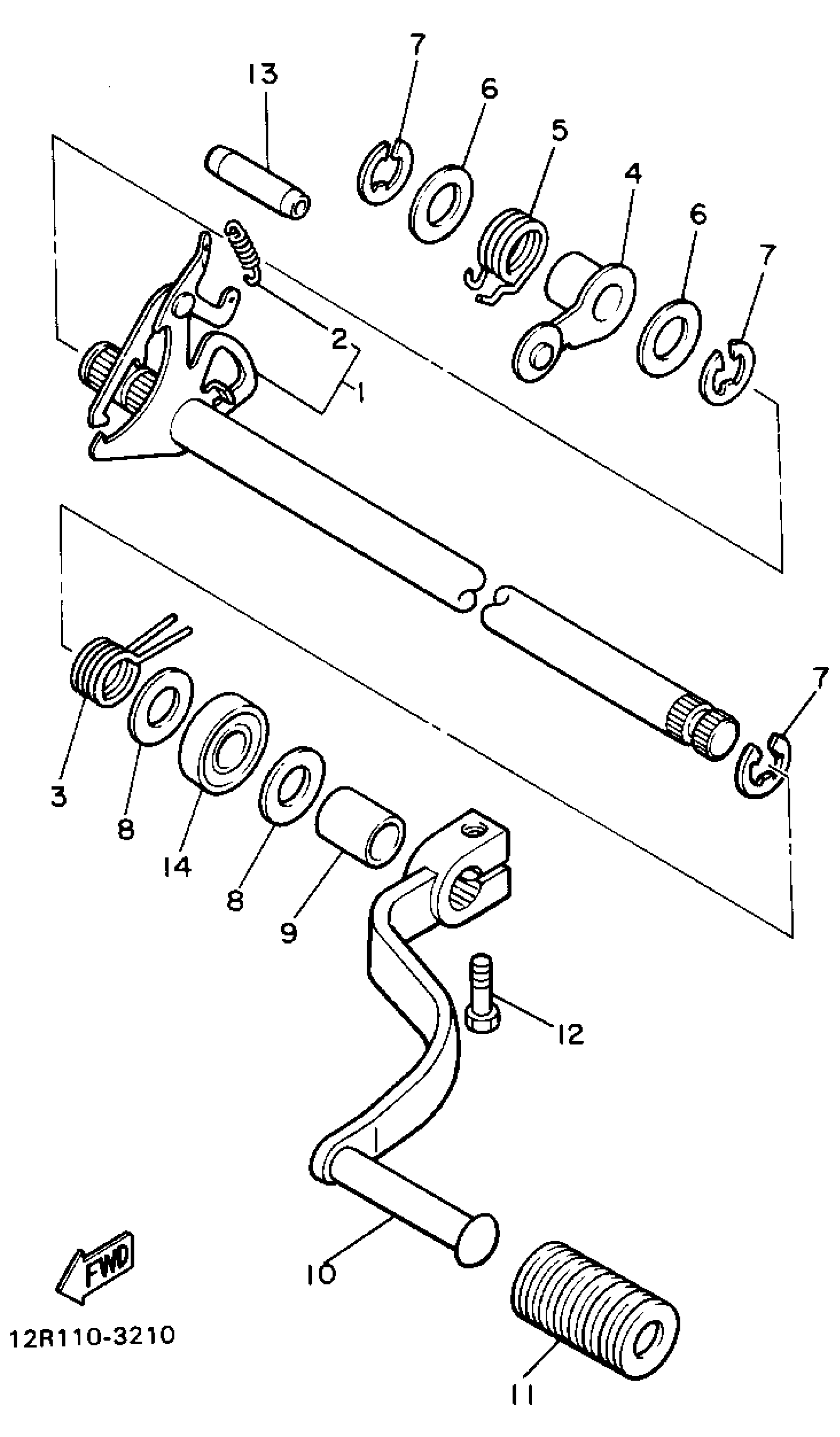

Yamaha XS400J (XS400) 1982 SHIFT SHAFT Diagram

SHIFT LEVER ASY

SPRING, TENSION (4H7)

SPRING, TORSION

STOPPER LEVER ASSEMBLY

SPRING, TORSION

WASHER

CIRCLIP

WASHER

COLLAR (4G0)

SHIFT PEDAL ASSEMBLY

COVER, CHANGE PEDAL

BOLT, HEXAGON

PIN, DOWEL (4H7)

SEAL, OIL (30X)
