Description

Price

1

COVER, OIL ELEMENT

12R-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1L9-13441-11-00

$7.77

3

GROMMET (1L9)

90480-23193-00

Unavailable

4

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

5

O-RING (26H)

93210-16629-00

$4.65

6

O-RING(1KF)

93210-87723-00

Unavailable

7

WASHER, PLATE (1L9)

90201-21608-00

$5.76

8

COVER, STRAINER

12R-13417-01-00

Unavailable

9

GASKET,STRNR COVER

12R-13414-10-00

Unavailable

10

BOLT,SOCKET

91317-06014-00

$6.57

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

12

SCREW, BIND(2TV)

98980-06008-00

$0.58

13

GASKET

214-11198-01-00

$1.93

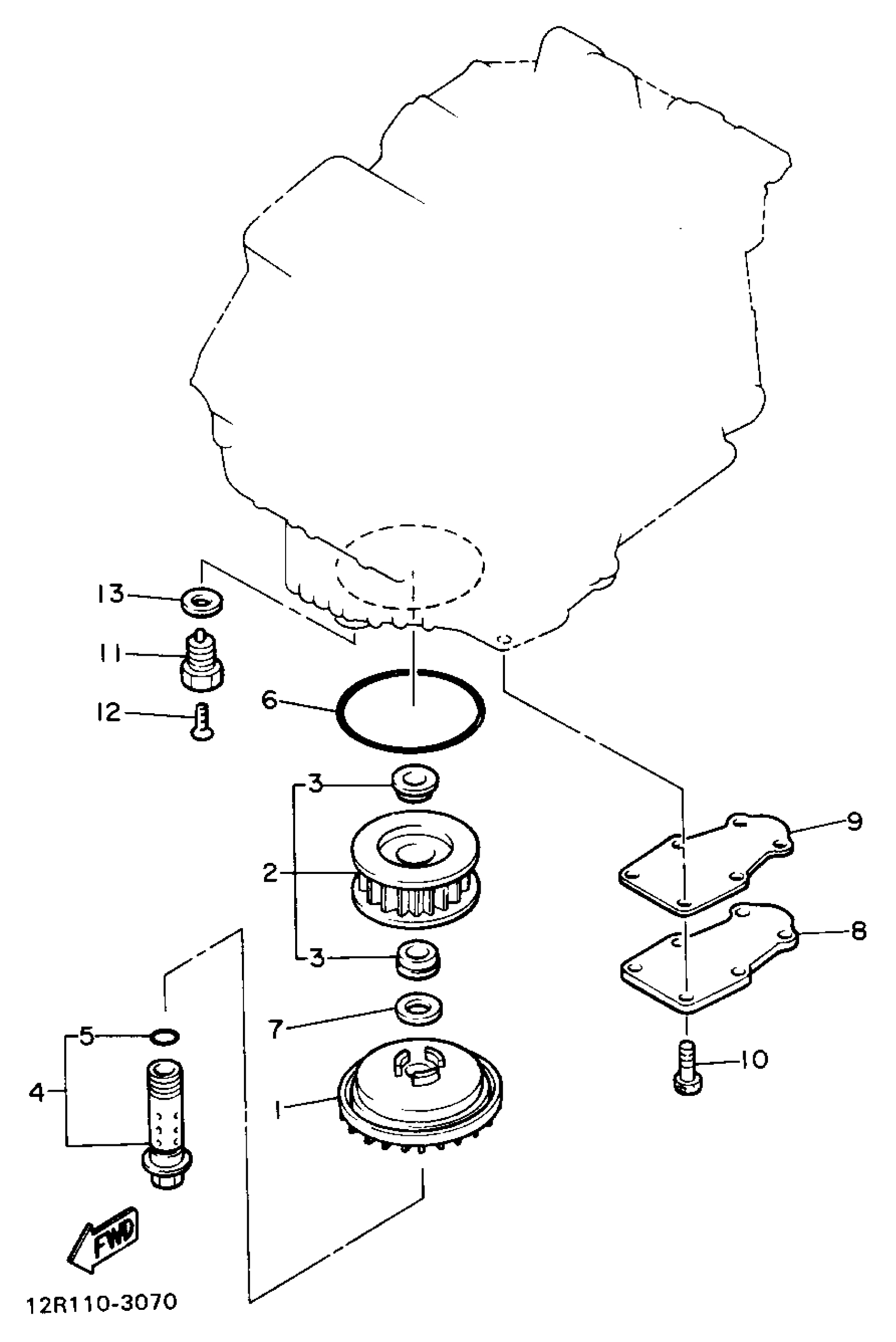

Yamaha XS400J (XS400) 1982 OIL FILTER Diagram

COVER, OIL ELEMENT

ELEMENT, OIL CLEANER

GROMMET (1L9)

BY-PASS VALVE ASSY

O-RING (26H)

O-RING(1KF)

WASHER, PLATE (1L9)

COVER, STRAINER

GASKET,STRNR COVER

BOLT,SOCKET

PLUG, STRAIGHT SCREW(3FA)

SCREW, BIND(2TV)

GASKET
