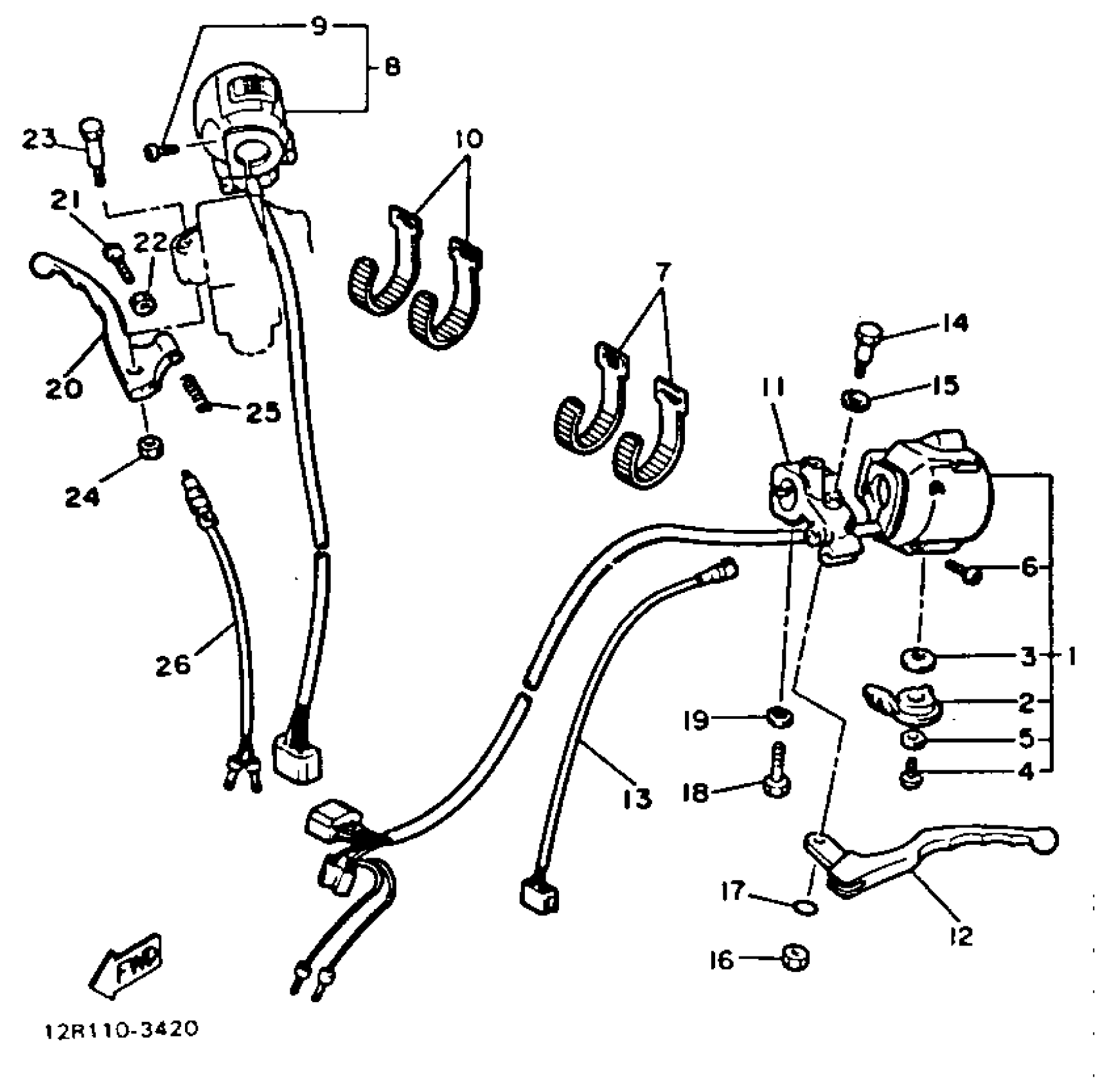

Yamaha XS400J (XS400) 1982 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

11H-83973-00-00

Unavailable

2

LEVER, STARTER

10M-83941-00-00

Unavailable

3

WASHER (357)

90209-10131-00

$9.49

4

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

6

SCREW, PAN HEAD

98517-05020-00

$4.25

7

BAND, SWITCH CORD

437-83936-01-00

$7.99

8

SWITCH, HANDLE 2

26H-83975-00-00

Unavailable

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

BAND, SWITCH CORD

437-83936-01-00

$7.99

11

HOLDER, LEVER 1

11H-82911-00-00

Unavailable

12

UNAVAILABLE IN PRICE BOOK

10M-82912-00-00

Unavailable

13

SWITCH

3Y6-82917-00-00

Unavailable

14

BOLT(3GB)

90109-061F3-00

$7.49

15

WASHER, PLATE 1562722600

90201-08083-00

$9.49

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

O-RING (2H7)

93210-11368-00

Unavailable

18

BOLT, HEXAGON

97007-06022-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

LEVER 2

4L0-83922-00-00

Unavailable

21

SCREW (2L0)

90149-06131-00

Unavailable

22

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

23

BOLT (4L0)

90109-06577-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable

25

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

26

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable
