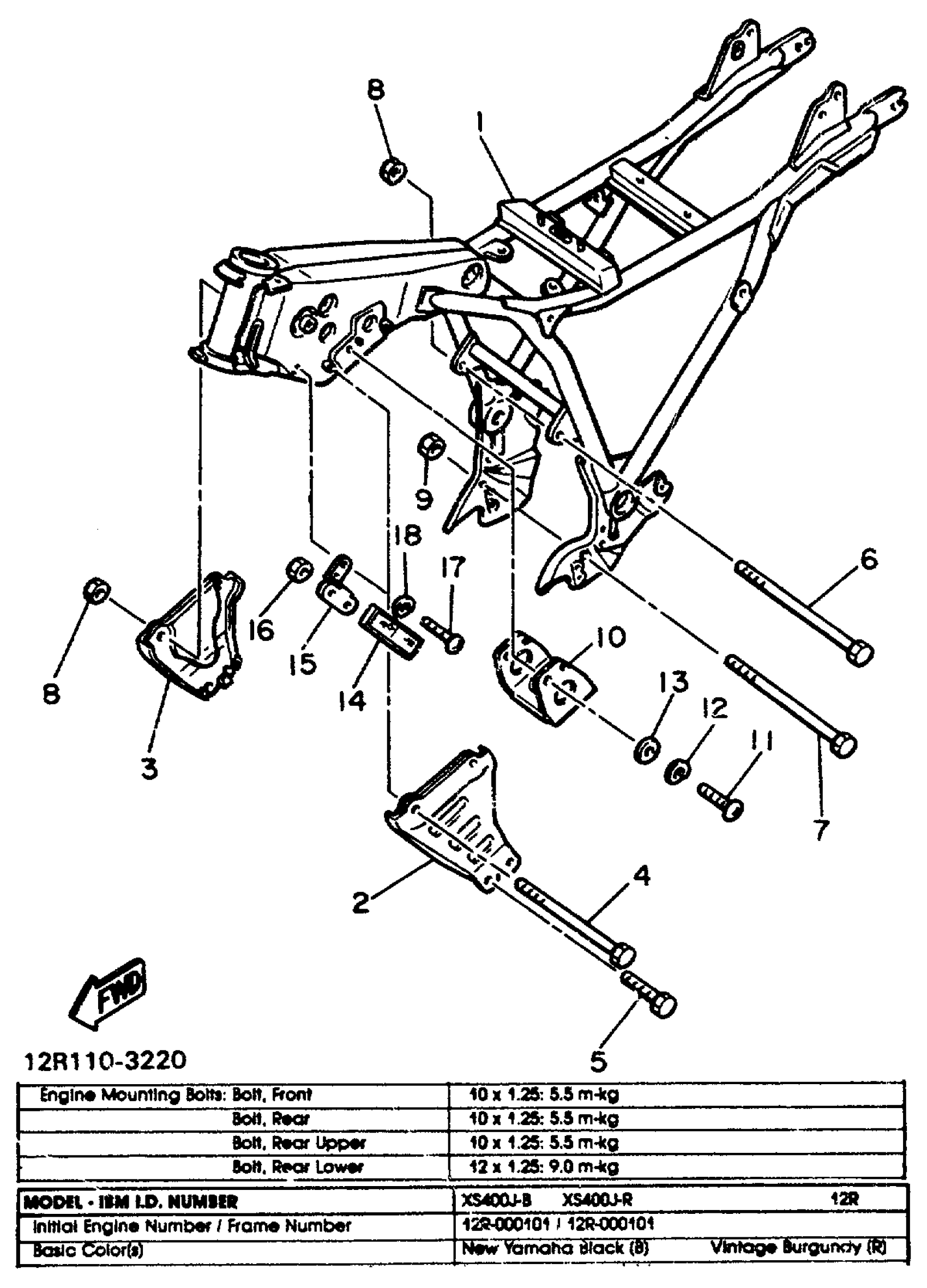

Yamaha XS400J (XS400) 1982 FRAME Diagram
#
Description
Price
1
FRAME
(12R-21110-00-98)
Unavailable
2
STAY, ENGINE 2
12R-21315-00-93
Unavailable
3
STAY, ENGINE 3
(12R-21316-00-93)
Unavailable
4
BOLT(30W)
90109-101A0-00
Unavailable
5
BOLT, WASHER BASED(3YR)
90105-10669-00
Unavailable
6
BOLT, WASHER BASED (3Y1)
90105-10139-00
Unavailable
10
CLAMP, WIRE HRNES 2
(12R-21336-00-00)
Unavailable
15
BRACKET, RFLCTR 1
12R-85112-00-00
Unavailable
16
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
17
SCREW, PAN
98507-06010-00
Unavailable
