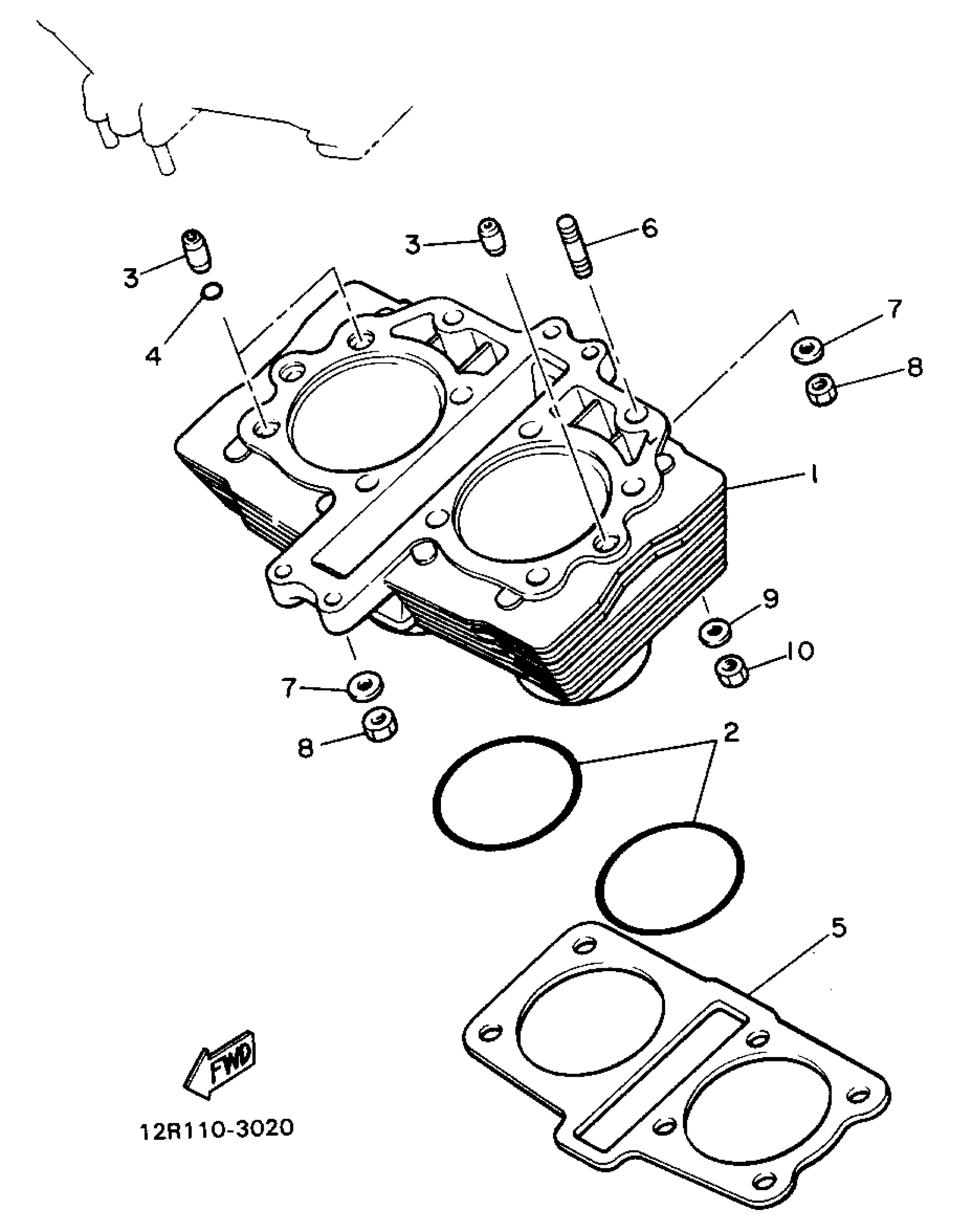

Yamaha XS400J (XS400) 1982 CYLINDER Diagram

#

Description
Price

1

CYLINDER

(12R-11310-00-00)

Unavailable

2

O-RING (1J7)

93210-74316-00

$7.91

3

PIN, DOWEL

99530-14016-00

$2.98

4

GASKET (1L9)

90430-14131-00

$4.96

5

GASKET, CYLINDER

12R-11351-10-00

Unavailable

6

BOLT, STUD 2

95617-08330-00

$9.09

7

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

8

NUT(6TA)

95317-06600-00

$2.52

9

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

10

NUT(6L2)

95333-08600-00

$2.98
