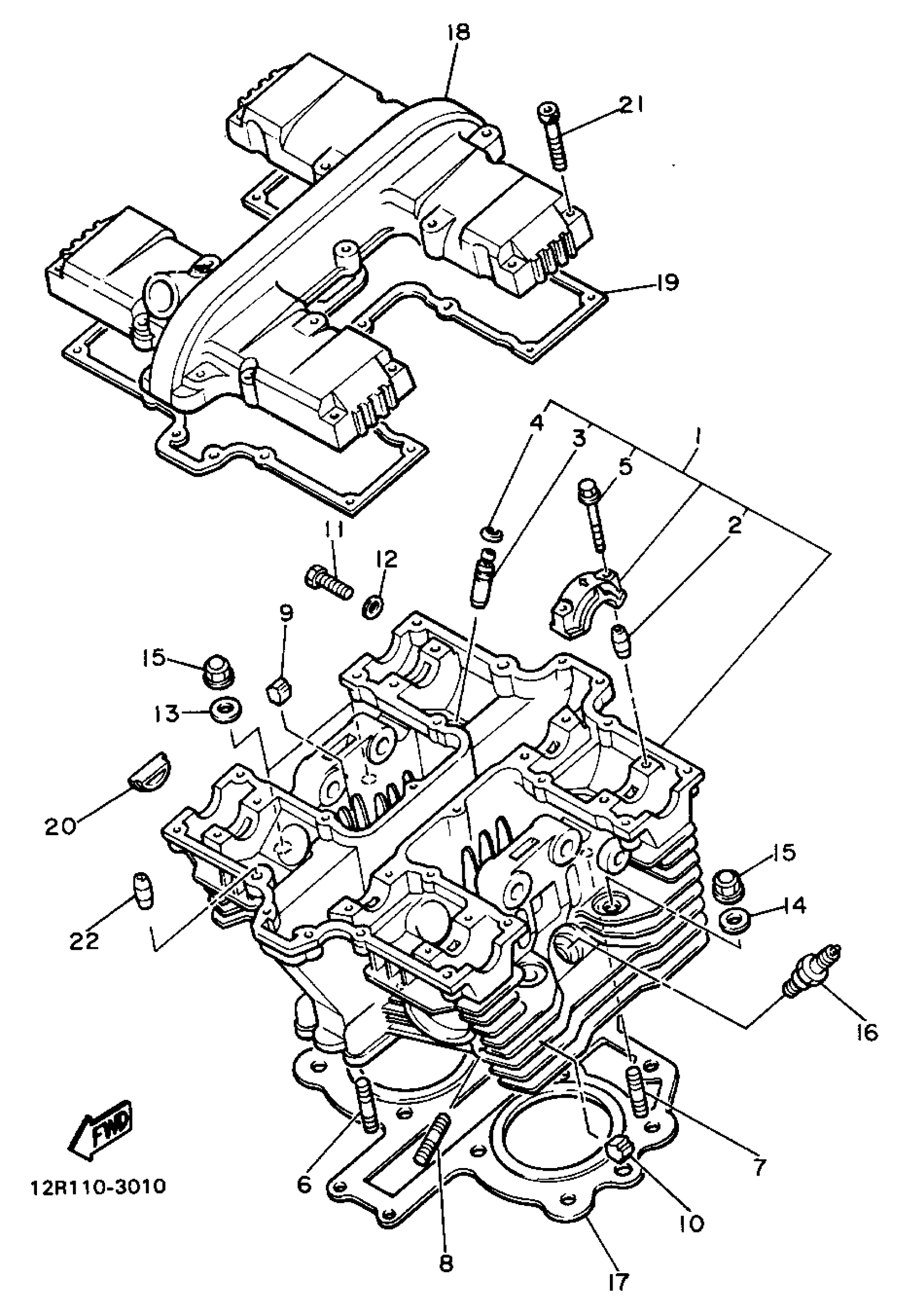

Yamaha XS400J (XS400) 1982 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(12R-11101-00-00)

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

4

CIRCLIP (1L9)

93440-12052-00

$2.44

5

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

6

BOLT, STUD 3

95617-06625-00

$8.49

7

BOLT, STUD(1JK)

90116-06475-00

$8.49

8

BOLT, STUD 3

95617-08640-00

$5.49

9

ABSORBER

434-11161-00-00

Unavailable

10

ABSORBER 1

4H7-11161-00-00

$3.48

11

SCREW

90153-06029-00

$10.49

12

GASKET 256113960000

90430-06014-00

Unavailable

13

WASHER PLATE 341839090000

90201-10128-00

$4.82

14

WASHER PLATE 256111740000

90201-10131-00

$9.49

15

NUT, CROWN(2GG)

90176-10075-00

$8.49

16

ND X24ES-U XJ550RH

(94701-00181-00)

Unavailable

16

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable

17

GASKET,CYL HEAD 1

12R-11181-10-00

Unavailable

18

COVER, CYLINDER.HEAD 1

12R-11191-00-00

Unavailable

19

GASKET, HD COVER 1

12R-11193-10-00

Unavailable

20

PLUG

1J7-11138-00-00

Unavailable

21

BOLT, SOCKET

91314-06035-00

Unavailable

22

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
