CRANKSHAFT PISTON

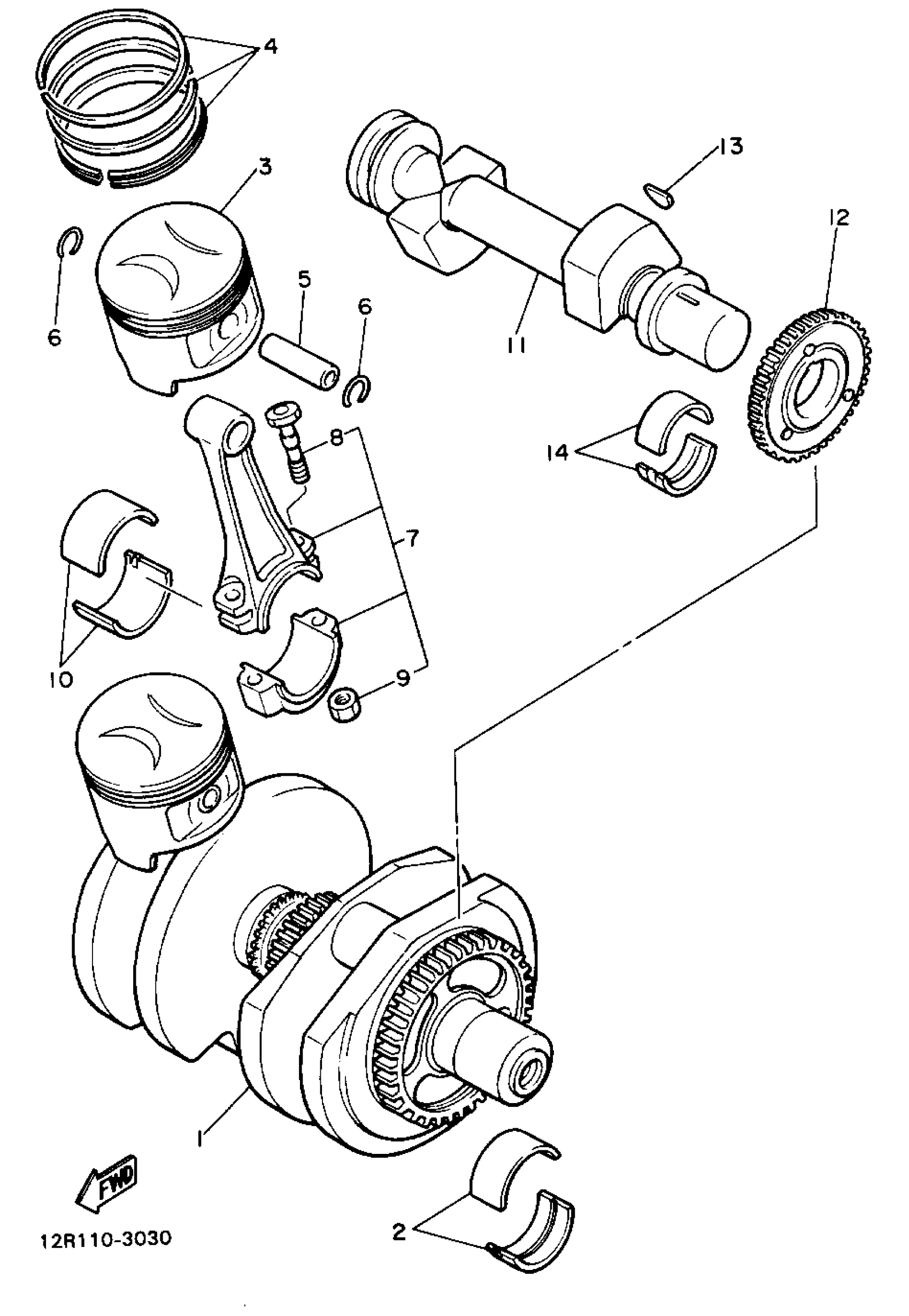

Yamaha XS400J (XS400) 1982 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
(12R-11400-00-00)
Unavailable
2
PLANE BRNG, CRSF 1
12R-11416-00-00
Unavailable
2
PLANE BRNG, CRSF 1
12R-11416-10-00
Unavailable
2
PLANE BRNG, CRSF 1
12R-11416-20-00
Unavailable
2
PLANE BRNG, CRSF 1
12R-11416-30-00
Unavailable
3
PISTON STD (STD)
12R-11631-00-00
Unavailable
3
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
12R-11636-00-00
Unavailable
3
PISTON 4 O/S 1.00 (4TH O/S 1.00MM)
12R-11638-00-00
Unavailable
4
PISTON RING SET
26M-11610-40-00
Unavailable
4
PISTON RINGSET 2ND (2ND O/S)
12R-11610-20-00
Unavailable
4
PISTON RINGSET 4TH (4TH O/S)
12R-11610-40-00
Unavailable
5
PIN, PISTON
29U-11633-00-00
Unavailable
7
CONNECTING ROD ASSEMBLY
12R-Y1165-00-00
Unavailable
9
NUT (11H)
90179-08327-00
Unavailable
10
PLANE BRNG, CON ROD
12E-11656-20-00
Unavailable
10
PLANE BRNG,CON ROD
12E-11656-00-00
Unavailable
10
PLANE BRNG,CON ROD
12E-11656-10-00
Unavailable
11
WEIGHT 1
(12R-11454-00-00)
Unavailable
12
BALANCER WEIGHT
(12R-11530-00-00)
Unavailable
13
KEY,WOODRUFF
90280-04005-00
Unavailable
14
PLANE BEARING, BALANCE WEIGHT
26H-11413-32-00
Unavailable
14
PLANE BEARING, BALANCE WEIGHT
26H-11413-52-00
Unavailable
14
PLANE BEARING, BALANCE WEIGHT
26H-11413-62-00
Unavailable
