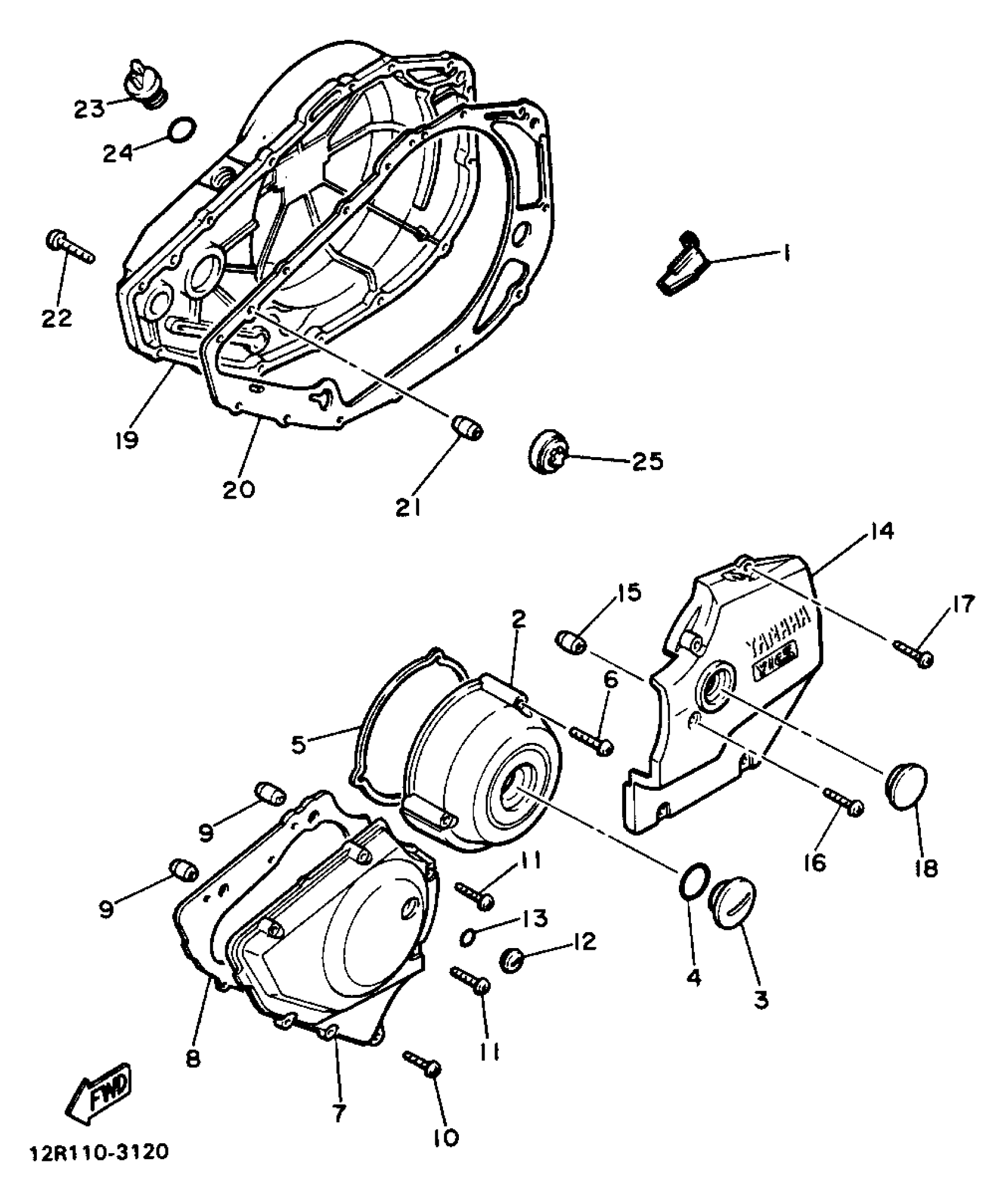

Yamaha XS400J (XS400) 1982 CRANKCASE COVER Diagram

#

Description
Price

1

SCRAPER, OIL

(12R-15437-00-00)

Unavailable

2

COVER, GENERATOR

12R-15415-01-00

Unavailable

3

PLUG, STRAIGHT SCREW

90340-32088-00

Unavailable

4

O-RING (341)

93210-32172-00

$7.49

5

GASKET 1

12R-15455-00-00

Unavailable

6

SCREW PAN HEAD

98580-06570-00

$18.99

7

COVER, CRANKCASE L

12R-15411-00-00

Unavailable

8

GASKET, CRCS COVER

12R-15451-10-00

Unavailable

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

SCREW PAN HEAD

98580-06020-00

$8.49

11

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

12

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

13

O-RING (2H9)

93210-14369-00

$7.49

14

CRCS COVER ASSEMBLY R

12R-15420-00-00

Unavailable

15

PIN, DOWEL(3VD)

99530-10114-00

$2.55

16

SCREW PAN HEAD

98580-06565-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

COVER, CAP

1L9-15417-00-00

Unavailable

19

GASKET, CRCS CVR 3

12R-15462-10-00

Unavailable

20

GASKET, CRCS CVR 3

12R-15462-10-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

$2.55

22

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

23

PLUG, OIL

3Y1-15363-10-00

Unavailable

24

O-RING (646)

93210-19123-00

Unavailable

25

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable
