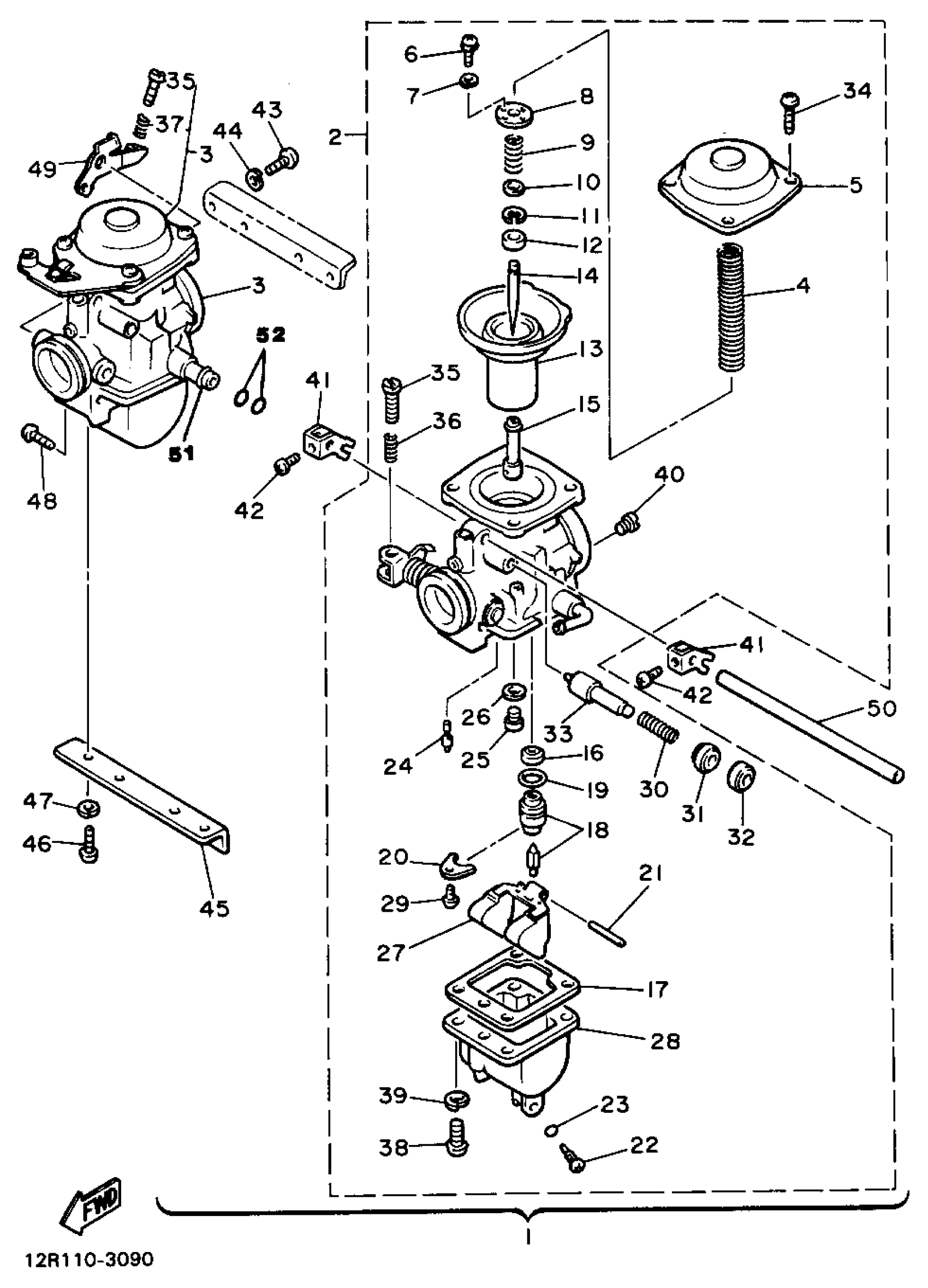

Yamaha XS400J (XS400) 1982 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

(12R-14900-00-00)

Unavailable

2

. CARBURETOR ASSEMBLY 1

12R-14901-00-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

12R-14902-00-00

Unavailable

4

.. SPRING, DIAPHRAGM

3G1-14933-00-00

Unavailable

5

.. COVER, DIAPHRAGM

12R-14958-00-00

Unavailable

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

WASHER, SPRING

92990-03100-00

$8.49

8

PLATE, DIAPHRAGM

3F7-14936-00-00

Unavailable

9

SPRING, NEEDLE

3F7-14589-00-00

$5.49

10

WASHER, PLATE (7Y2)

90201-037F2-00

Unavailable

11

CLIP

256-14919-00-00

$6.99

12

RING, NEEDLE

3F7-14918-00-00

$10.99

13

.. DIAPHRAGM ASY

3F7-14940-01-00

Unavailable

14

NEEDLE

(1J7-14116-17-00)

Unavailable

15

.. NOZZLE, MAIN

12R-14941-08-00

Unavailable

16

NET, FILTER

1J7-14994-00-00

Unavailable

17

GASKET, FLOAT CHAMBER

3XW-14984-00-00

Unavailable

18

.. NEEDLE VALVE SET

11H-14107-20-00

Unavailable

19

O-RING

8F2-14147-00-00

Unavailable

20

. PLATE

2H0-14146-00-00

Unavailable

21

PIN, FLOAT

127-14186-00-00

Unavailable

22

SCREW

2L1-14191-00-00

Unavailable

23

O-RING

214-14147-00-00

Unavailable

24

JET, PILOT (# 42.5)

4G0-14142-42-A0

Unavailable

25

JET, MAIN (#115)

620-14231-23-A0

Unavailable

25

JET, MAIN (#125)

620-14231-25-A0

Unavailable

26

WASHER,MAIN JET

137-14153-00-00

Unavailable

27

FLOAT

3H5-14985-00-00

Unavailable

28

BODY, FLOAT CHAMBER

(12R-14981-00-00)

Unavailable

29

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

30

.. SPRING, PLUNGER

3F7-14135-00-00

Unavailable

31

.. CAP, PLUNGER

3F7-14174-00-00

Unavailable

32

.. COVER, PLUNGER CAP

3F7-14173-00-00

Unavailable

33

.. PLUNGER, STARTER

3F7-14171-00-00

Unavailable

34

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

35

. STOP SCREW SET

12R-1490K-00-00

Unavailable

36

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

37

. , SPRING, THROTTLE STOP

3F7-14934-00-00

Unavailable

38

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

39

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

40

JET, MAIN (#170)

3G2-14231-34-00

Unavailable

41

. LEVER, STARTER

3F7-14905-00-00

Unavailable

42

. SCREW, STARTER LEVER 2

584-14991-00-00

Unavailable

43

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

44

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

45

PLATE

(12R-14146-00-00)

Unavailable

46

SCREW, PAN

98507-06014-00

Unavailable

47

WASHER, SPRING

92995-06100-00

Unavailable

48

SCREW, CYLINDER HEAD

(98302-05006-00)

Unavailable

49

LEVER, THROTTLE 2

(12R-14964-00-00)

Unavailable

50

SHAFT, STARTER LVR

(12R-14977-00-00)

Unavailable

51

NIPPLE

(12R-14251-00-00)

Unavailable

52

O-RING

36Y-14147-00-00

Unavailable
