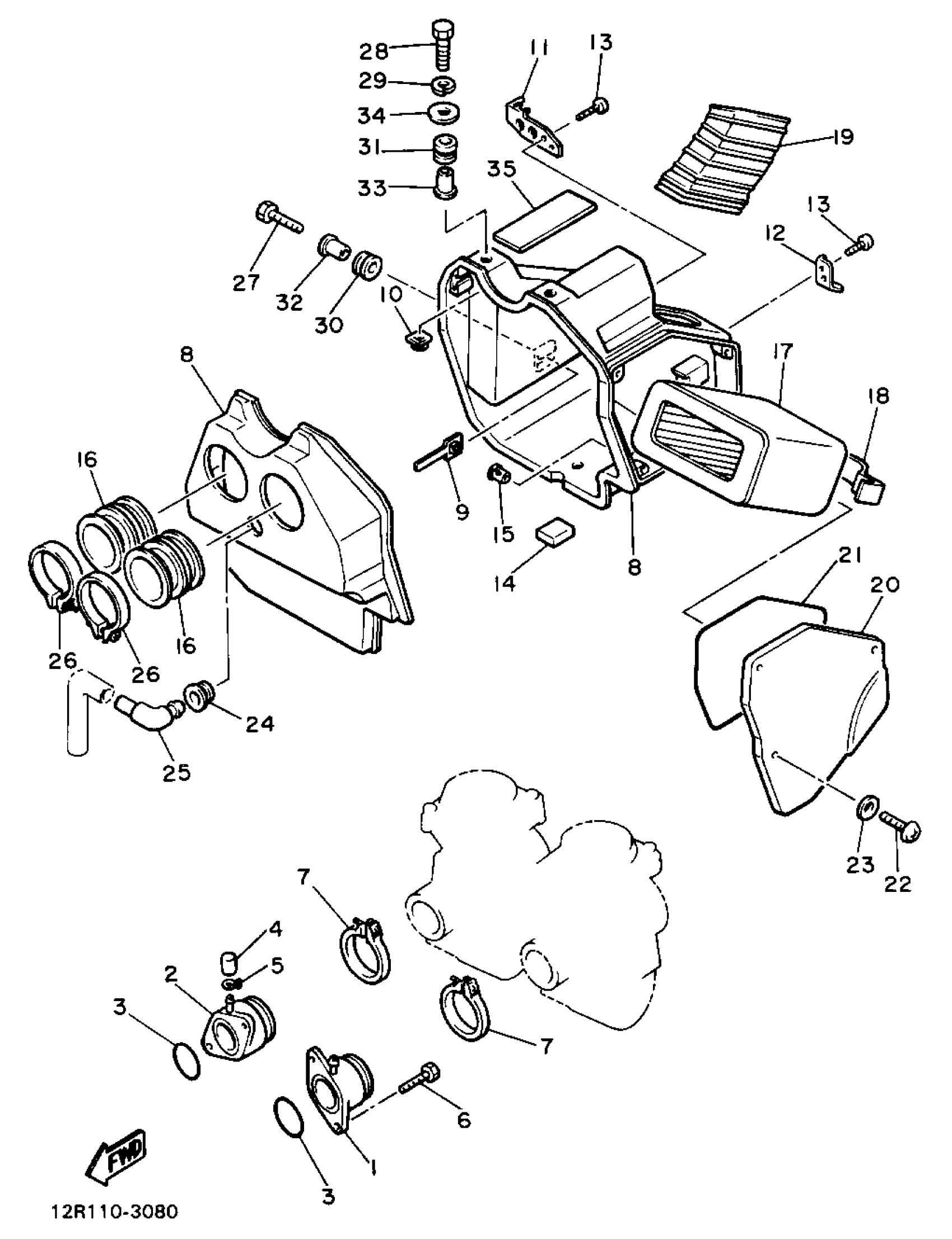

Yamaha XS400J (XS400) 1982 AIR CLEANER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

12R-13586-00-00

Unavailable

2

JOINT, CARBURETOR 2

12R-13596-00-00

Unavailable

3

O-RING (5Y1)

93210-37532-00

$8.49

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP (3G0)

90467-10039-00

$9.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

CLAMP, HOSE (90460-52210-00)

90460-52264-00

Unavailable

8

AIR CLNR CASE ASSEMBLY

(12R-14401-01-00)

Unavailable

9

PLATE

(12R-14477-00-00)

Unavailable

10

PLATE, CLEANER CASE FITTING

12R-14484-01-00

Unavailable

11

STAY 1

(12R-14493-01-00)

Unavailable

12

STAY, STOP SWITCH

(12R-2144G-00-00)

Unavailable

13

SCREW, TAPPING(61A)

97780-50612-00

Unavailable

14

SEAL

36Y-14462-00-00

$7.99

15

NUT, SPEC''L SHAPE

(90179-05380-00)

Unavailable

16

JOINT, AIR CLNR 1

12R-14453-00-00

Unavailable

17

ELEMENT, AIR CLEANER

12R-14451-00-00

Unavailable

18

PLATE, ELEMENT FITTING

3Y6-14468-01-00

Unavailable

19

DUCT

(12R-14437-00-00)

Unavailable

20

CAP, CLEANER CASE 1

12R-14412-00-00

Unavailable

21

SEAL

1VJ-14462-00-00

Unavailable

22

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

23

. WASHER, PLAIN

92990-05200-00

Unavailable

24

GROMMET (4H7)

90480-16278-00

Unavailable

25

PIPE

4H7-14419-00-00

Unavailable

26

HOSE CLAMP ASSY

90450-58002-00

Unavailable

27

BOLT

(90109-08510-00)

Unavailable

28

BOLT, HEXAGON

97017-06025-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

GROMMET

(90480-20337-00)

Unavailable

31

GROMMET (16R)

90480-14329-00

Unavailable

32

COLLAR

90387-096F4-00

Unavailable

33

COLLAR 8111266500

90387-07037-00

Unavailable

34

WASHER, PLATE

90201-06380-00

Unavailable

35

SEAT, BATTERY

5Y1-82122-00-00

Unavailable
