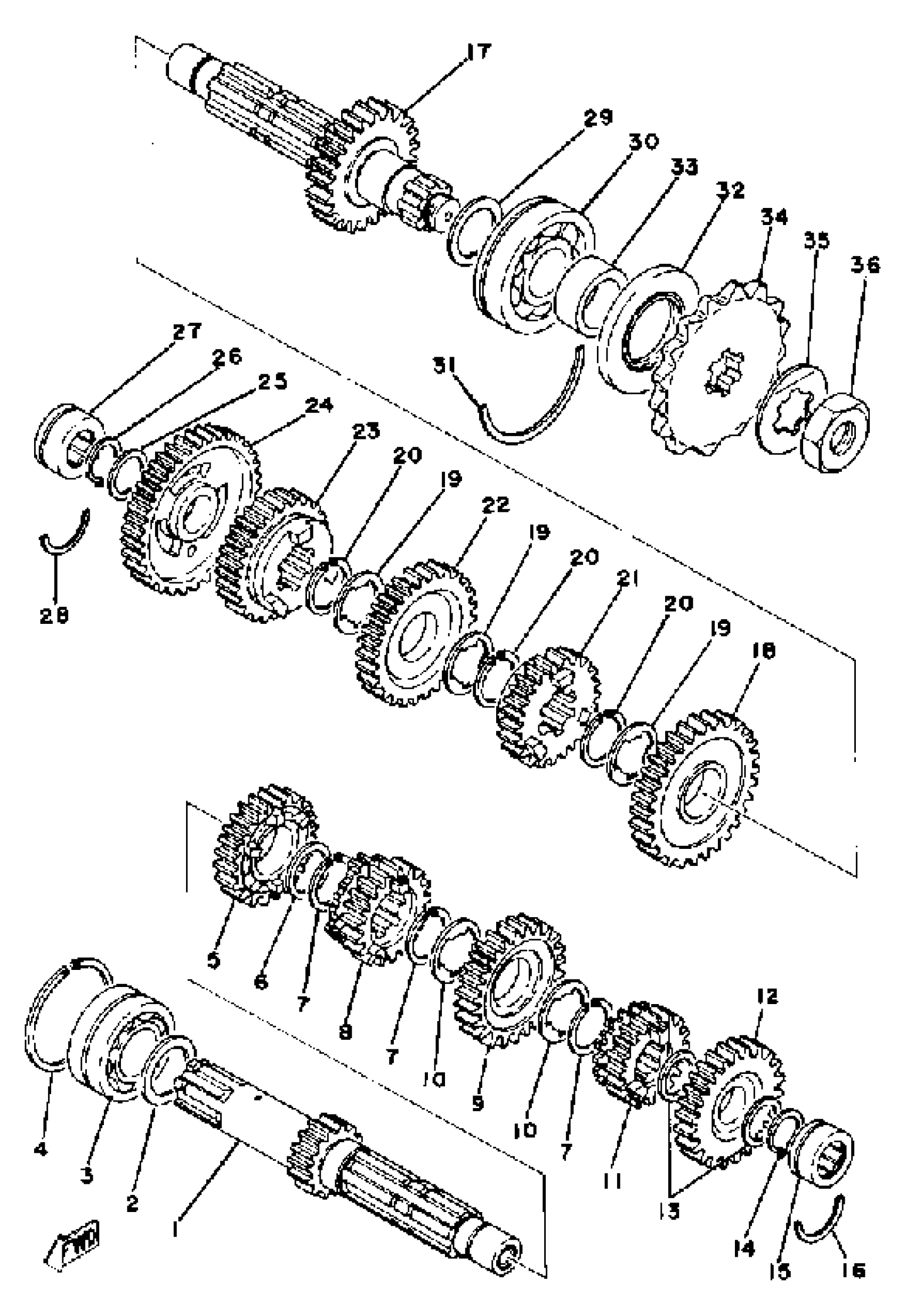

Yamaha XS400H (XS400) XS400H 1981 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASY

1L9-17401-00-00

Unavailable

2

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

2

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

3

BRG,R-B 5205 52MM 190G KY

93305-20502-00

Unavailable

4

CIRCLIP (168)

93440-52009-00

$11.49

5

GEAR, 4TH PINION

1L9-17141-00-00

Unavailable

6

WASHER, PLATE(59W)

90201-253K0-00

$8.49

7

CIRCLIP (4L0)

93440-25084-00

$5.60

8

GEAR, 3RD PINION

1L9-17131-00-00

Unavailable

9

GEAR, 6TH PINION

1L9-17161-00-00

Unavailable

10

WASHER 328172160000

90209-21105-00

$8.49

11

GEAR, 2ND PINION

1A1-17121-00-00

Unavailable

12

GEAR, 5TH PINION

1L9-17151-00-00

Unavailable

13

WASHER PLATE 132172160000

90201-20266-00

$9.49

14

CIRCLIP(1AR)

99009-20400-00

$8.49

15

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

Unavailable

16

CIRCLIP, INNER

93450-32042-00

Unavailable

17

DRIVE AXLE ASY

1L9-17420-00-00

Unavailable

18

GEAR, 2ND WHEEL

1L9-17221-00-00

Unavailable

19

WASHER 328172160000

90209-21105-00

$8.49

20

CIRCLIP (4L0)

93440-25084-00

$5.60

21

GEAR, 6TH WHEEL

1L9-17261-00-00

Unavailable

22

GEAR, 3RD WHEEL

2A2-17231-00-00

Unavailable

23

GEAR, 4TH WHEEL

2A2-17241-00-00

Unavailable

24

1ST WHEEL GEAR

1L9-17211-00-00

Unavailable

25

WASHER PLATE 132172160000

90201-20266-00

$9.49

26

CIRCLIP(1AR)

99009-20400-00

$8.49

27

BEARING, CYL.#11

93311-42045-00

Unavailable

28

CIR CLIP

278-17425-00-00

Unavailable

29

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

29

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

30

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

31

CIRCLIP

278-17424-01-00

Unavailable

32

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

33

COLLAR(1AE)

90387-253M9-00

Unavailable

34

SPROCKET, DRIVE 16T

93854-16108-00

Unavailable

35

WASHER, LOCK (23X)

90215-21239-00

Unavailable

36

NUT 152174630000

90179-18020-00

Unavailable
