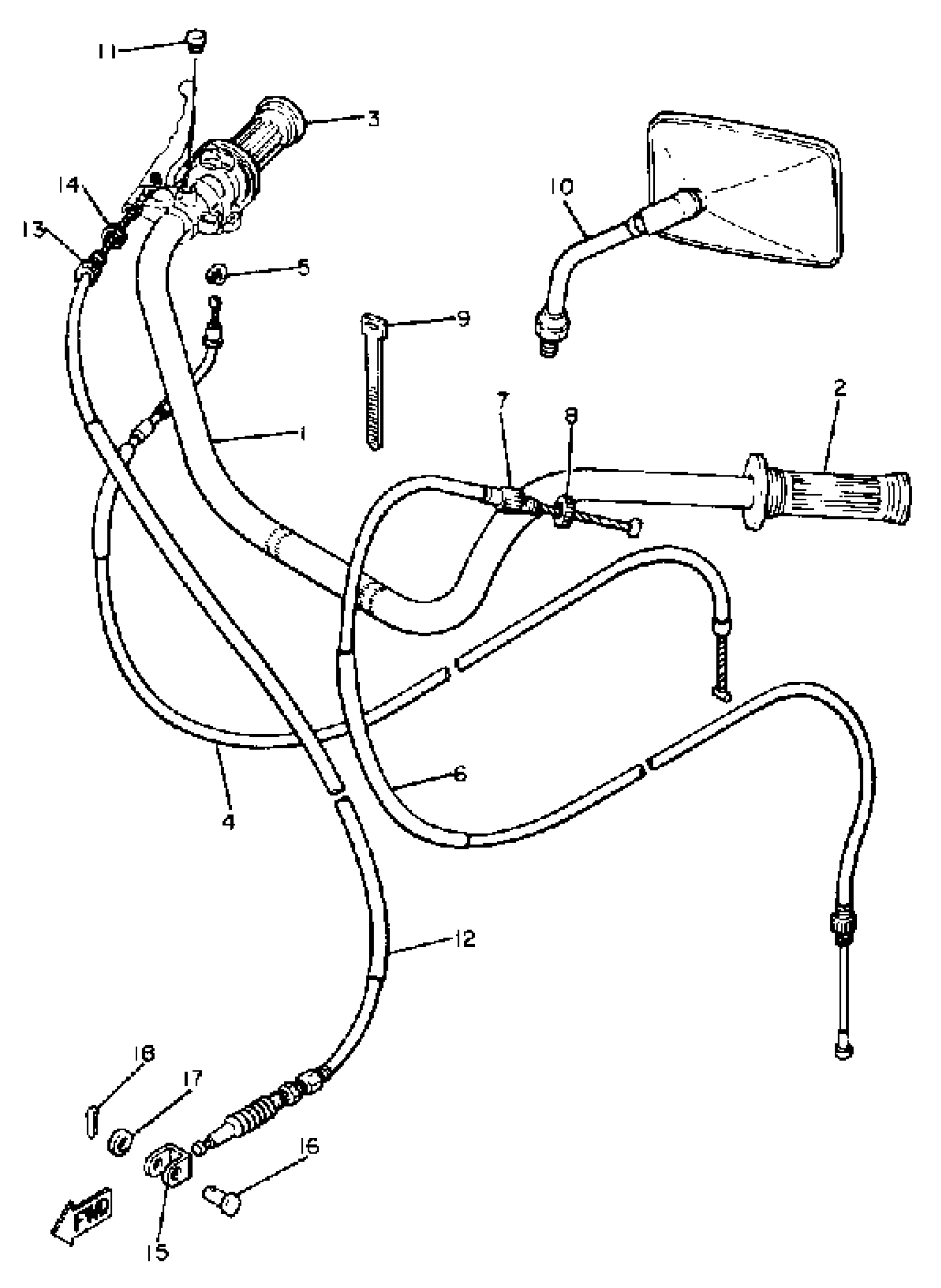

Yamaha XS400H (XS400) XS400H 1981 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

3F9-26110-00-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

GRIP ASSY

2H7-26240-01-00

$18.49

4

CABLE, THROTTLE 1

3F9-26311-01-00

Unavailable

5

HOLDER,

584-26393-02-00

Unavailable

6

CABLE, CLUTCH

3F9-26335-00-00

Unavailable

7

BOLT

90123-08002-00

$10.49

8

NUT

90179-08030-00

$5.49

9

BAND

341-26397-01-00

Unavailable

10

REAR VIEW MIRROR ASSY (RIGHT)

4H7-26290-50-00

$143.99

10

REAR VIEW MIRROR ASSY(LEFT)

4H7-26290-20-00

$143.99

11

PLUG (341-26329-00)

90338-09012-00

$9.49

12

CABLE, BRAKE

3F8-26341-00-00

Unavailable

13

BOLT

90123-08002-00

$10.49

14

NUT

90179-08030-00

$5.49

15

JOINT, WIRE

156-26347-00-00

Unavailable

16

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

17

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

18

PIN, COTTER

91490-20025-00

Unavailable
