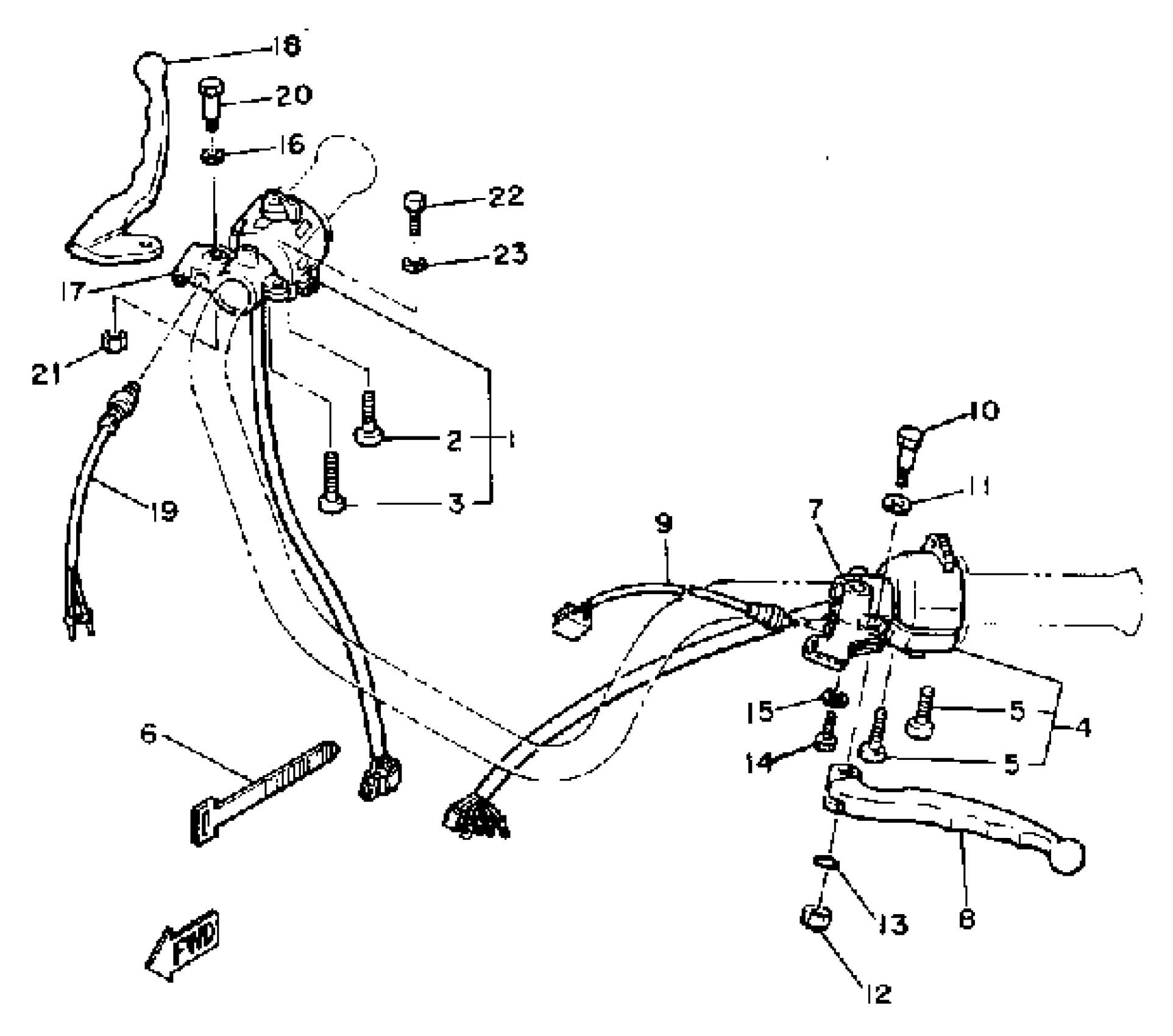

Yamaha XS400H (XS400) XS400H 1981 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 2

2H7-83975-09-00

Unavailable

2

SCREW, PAN HEAD

98517-05030-00

$10.49

3

SCREW, PAN

98507-05040-00

$8.49

4

SWITCH, HANDLE 3

3F9-83973-00-00

Unavailable

5

SCREW, PAN HEAD

98517-05030-00

$10.49

6

BAND, SWITCH CORD

437-83936-01-00

$7.99

7

HOLDER, LEVER 1

3Y6-82911-00-00

$55.99

8

LEVER L

2H0-83912-31-00

$31.99

9

SWITCH

3Y6-82917-00-00

Unavailable

10

BOLT(1FG)

90109-06798-00

$8.49

11

WASHER, PLATE 1562722600

90201-08083-00

$9.49

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

O-RING (2H7)

93210-11368-00

$5.60

14

BOLT, HEXAGON

97007-06022-00

Unavailable

15

WASHER, SPRING

92907-06100-00

$4.25

16

WASHER, PLATE 1562722600

90201-08083-00

$9.49

17

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

Unavailable

18

LEVER R

23X-83922-01-00

Unavailable

19

FRONT STOP SWITCH ASSY

395-83980-09-00

Unavailable

20

BOLT(3GB)

90109-061F3-00

Unavailable

21

NUT, SELF-LOCKING

95617-06100-00

$8.49

22

BOLT, HEXAGON

97013-06022-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable
